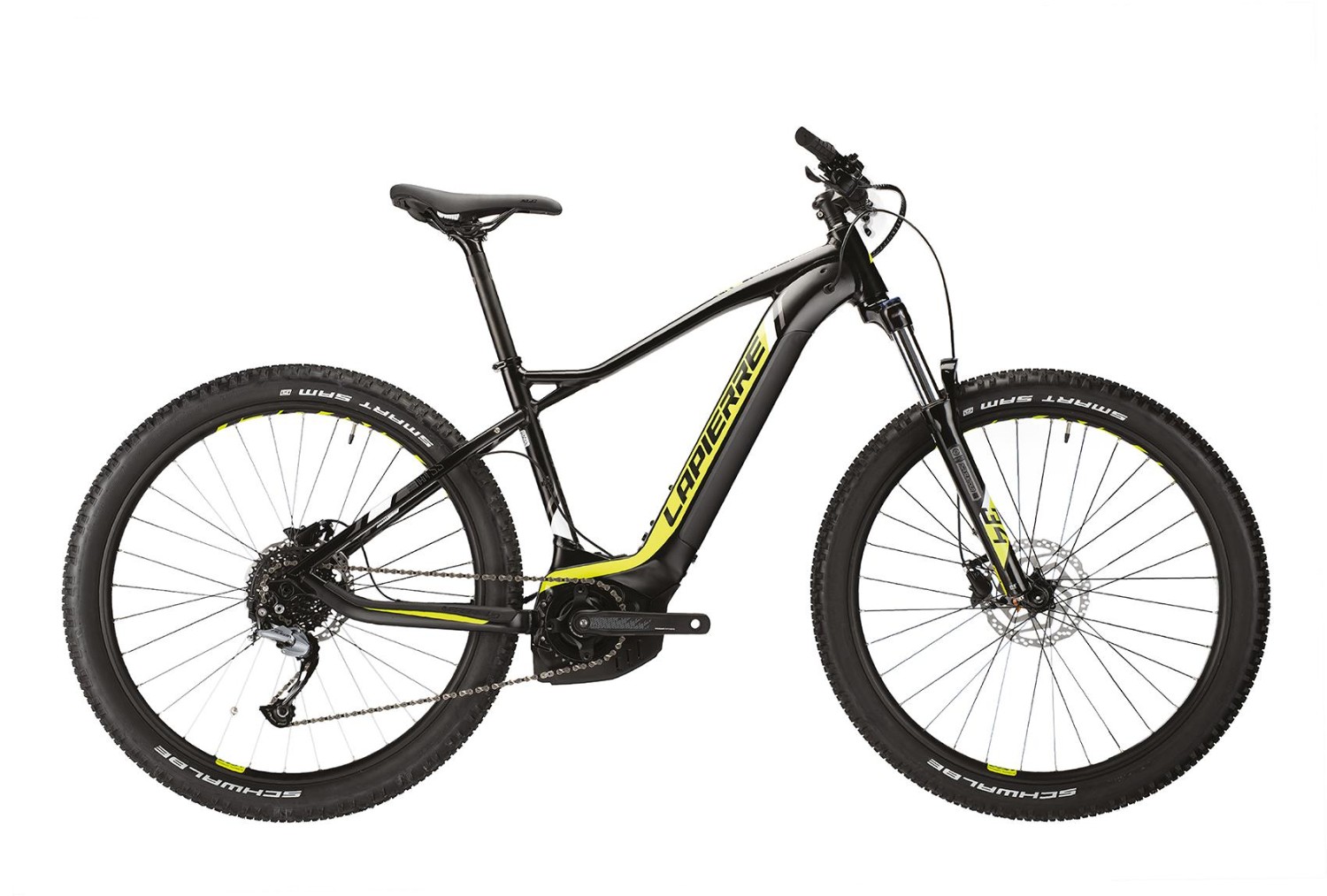

Lapierre Overvolt HT 5.4 2020 - Electric Mountain Bike

Our Overvolt hardtail serves as the entry-level model of our line of electric mountain bikes. The 120 mm of clearance in front provide the bike with a natural balance and ensure excellent steering control in turns, as well as effective damping of all powerful shocks.
The motorization functionality has been subcontracted to Yamaha for a gradual and gentle assistance. The Overvolt HT is an accessible and reassuring bike designed to take full advantage of your week-end trips!
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | OVERVOLT YAMAHA SUPREME 5 ALLOY BOOST |
| Fork | SR SUNTOUR XCM 34 COIL LO-R |
| Headset | VP-J303 1.5 H:19,6mm |
| Stem | Lapierre Alloy 0° Ø: 31.8mm L: 45mm |
| Bars | Lapierre Alloy 6061 W: 740mm R: 25mm Ø: 31.8mm |
| Front Brake | Shimano MT200 with SMRT10 180mm Centerlock Rotor |
| Rear Brake | Shimano MT200 with SMRT10 180mm Centerlock Rotor |
| Brake Lever | SHIMANO MT200 |
| Front Mech | 0 |
| Rear Mech | Shimano ACERA RDM3000GS 9s SHADOW |
| Shifters | Shimano Altus SLM2010 9s |
| Speed | 9 |
| Rims | Lapierre eAM+ 32H 584-35c |
| Front Hub | Shimano MT400 Boost THRU AXLE |
| Rear Hub | Shimano MT400 Boost THRU AXLE |
| Front Tyre | Schwalbe Smart Sam K-Guard 27.5x2.6 |
| Rear Tyre | Schwalbe Smart Sam K-Guard 27.5x2.6 |
| Seat Post | Lapierre Alloy Ø: 31.6mm L: 350mm |
| Saddle | XLC by DDK |
| Chainset | Lapierre OVERVOLT 170mm |
| Bottom Bracket | 0 |
| Chain | KMC 9 Spd X9 |
| Cassette | SHIMANO HG500 10s 11-34T |
| Pedals | VP-335 Clips&Strap |
| Battery Size (WH) | 400wh |
| Motor | YAMAHA PW-SE |
Overvolt HT Sizing
See the table below to find the right size Lapierre Overvolt HT.
|
Size |
Height
|
|
S |
150 – 170 |
|
M |
168 – 178 |
|
L |
177 – 186 |
|
XL |
> 184 |
Read our bike size guide for more information on sizing.
Overvolt HT Geometry
|
|
S |
M |
L |
XL |
|
Seat Tube (mm) |
390 |
450 |
500 |
530 |
|
Top Tube (mm) |
575 |
600 |
625 |
645 |
|
Head Angle |
68 |
68 |
68 |
68 |
|
Seat Angle |
73.5 |
73.5 |
73.5 |
73.5 |
|
Rear Chainstay (mm) |
475 |
475 |
475 |
475 |
|
Head Tube (mm) |
100 |
100 |
115 |
125 |
|
Bottom Bracket (mm) |
-60 |
-55 |
-55 |
-55 |
|
Reach |
390 |
416 |
437 |
454 |
|
Stack |
625 |
620 |
634 |
643 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
