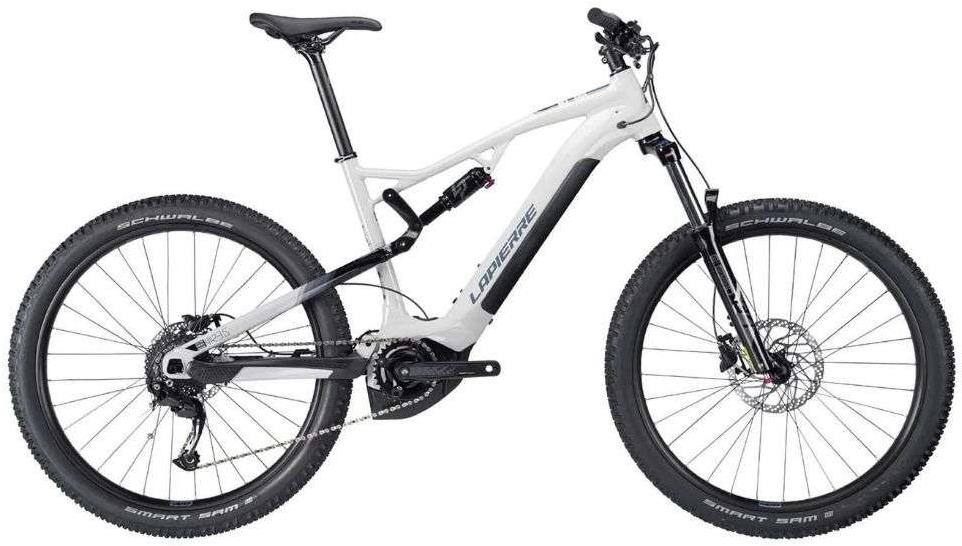

Lapierre Overvolt TR 3.5 2022 - Electric Mountain Bike
The Lapierre Overvolt TR 3.5 is an electric assist mountain bike that allows you to devour the trails without limits. With its aluminium frame and fluid motor, the Overvolt TR has been designed to take the mountains in its stride and adapt to the rider’s morphology. The work to centralise and lower the weight of the bike guarantee riding comfort without equal. With the Overvolt TR you can climb the unthinkable, make the most of the descent and start all over again. Warning, you may never want to stop.
Key features:
- Overvolt OST+ Supreme 5 Alloy Boost frame
- SR Suntour Xcm forks with 130mm of bump soaking travel
- Lapierre Metric shock takes care of the 120mm of rear travel
- Shimano 1x9 gears offer smooth and consistent shifting
- Shimano hydraulic brakes offer all weather stopping power
- Sizes: XS, S, M, L, XL
- Colours: White
- The Lapierre Overvolt T 3.5 is available with 0% APR finance
Drive Information:
- Motor: Yamaha PW-ST
- Battery: Yamaha PW-TE 500Wh
- Interface: Display A
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Overvolt OST+ 120mm Yamaha Supreme 5 Alloy Boost |
Fork | SR Suntour Xcm 34 Coil Lo-R 15AH Trhu Axle 110MM 27.5 130mm Travel |
Rear Shock | Lapierre Metric 190x40mm |
Headset | FSA Orbit 1.5 ZS NO.57SC |
Stem | Lapierre alloy, 0°, Ø: 31.8mm, L: 45mm |
Bars | Lapierre Alloy 6061 W: 740mm R: 25mm : 31.8mm |
Front Brake | Shimano RT30 203mm Centerlock |
Rear Brake | Shimano RT30 180mm Centerlock |
Brake Lever | Shimano MT200 Hydraulic |
Rear Mech | Shimano Alivio RDM3100GS 9s Shadow |
Shifters | Shimano Altus SLM2010 9s |
Speed | 9 |
Rims | Lapierre eAM+ 32H, 35-584 |
Front Hub | Shimano MT400 Boost Thru Axle |
Rear Hub | Shimano MT400 Boost Thru Axle |
Front Tyre | Schwalbe Smart Sam K-Guard 27.5x2.6 |
Rear Tyre | Schwalbe Smart Sam K-Guard 27.5x2.6 |
Seat Post | Lapierre alloy, Ø: 31.6mm, L: 350mm |
Saddle | XLC by DDK |
Chainset | Lapierre Overvolt Yamaha Wide Narrow 32T 170mm |
Chain | KMC E11 Turbo 11s |
Cassette | Sunrace CSM090 9s 11-36T |
Pedals | NW-91K |
Battery Size (WH) | Yamaha PW-TE 500Wh |
Motor | Yamaha PW-ST ''25kph'' / Intube battery 500Wh / display A |
Lapierre Overvolt TR 2022 Size Chart
Size | Height (cm) | Height (in) |
XS | 150 - 160 | 5'0" - 5'5" |
S | 150 - 170 | 5'0" - 5'5" |
M | 168 - 178 | 5'5" - 5'9" |
L | 176 - 186 | 5'8" - 6'1" |
XL | >184 | 6'0" - 6'3" |
Lapierre Overvolt TR 2022 Geometry
Size | XS | S | M | L | XL |
Seat tube | 370 | 390 | 430 | 470 | 510 |
Top tube | 550 | 584 | 611 | 633 | 661 |
Head angle | 67 | 66 | 66 | 66 | 66 |
Seat angle | 74.5 | 75.5 | 76 | 76.5 | 77 |
Rear centre | 440 | 440 | 440 | 440 | 440 |
Head tube | 100 | 100 | 110 | 130 | 150 |
BB height | -25 | -20 | -20 | -15 | -15 |
Fork travel | 130 | 160 | 160 | 160 | 160 |
Fork length | 540 | 570 | 570 | 570 | 570 |
Fork offset | 51 | 42 | 42 | 42 | 42 |
Stack | 594 | 615 | 624 | 637 | 656 |
Reach | 385 | 425 | 455 | 480 | 510 |
Wheelbase | 1122 | 1175 | 1210 | 1243 | 1281 |
