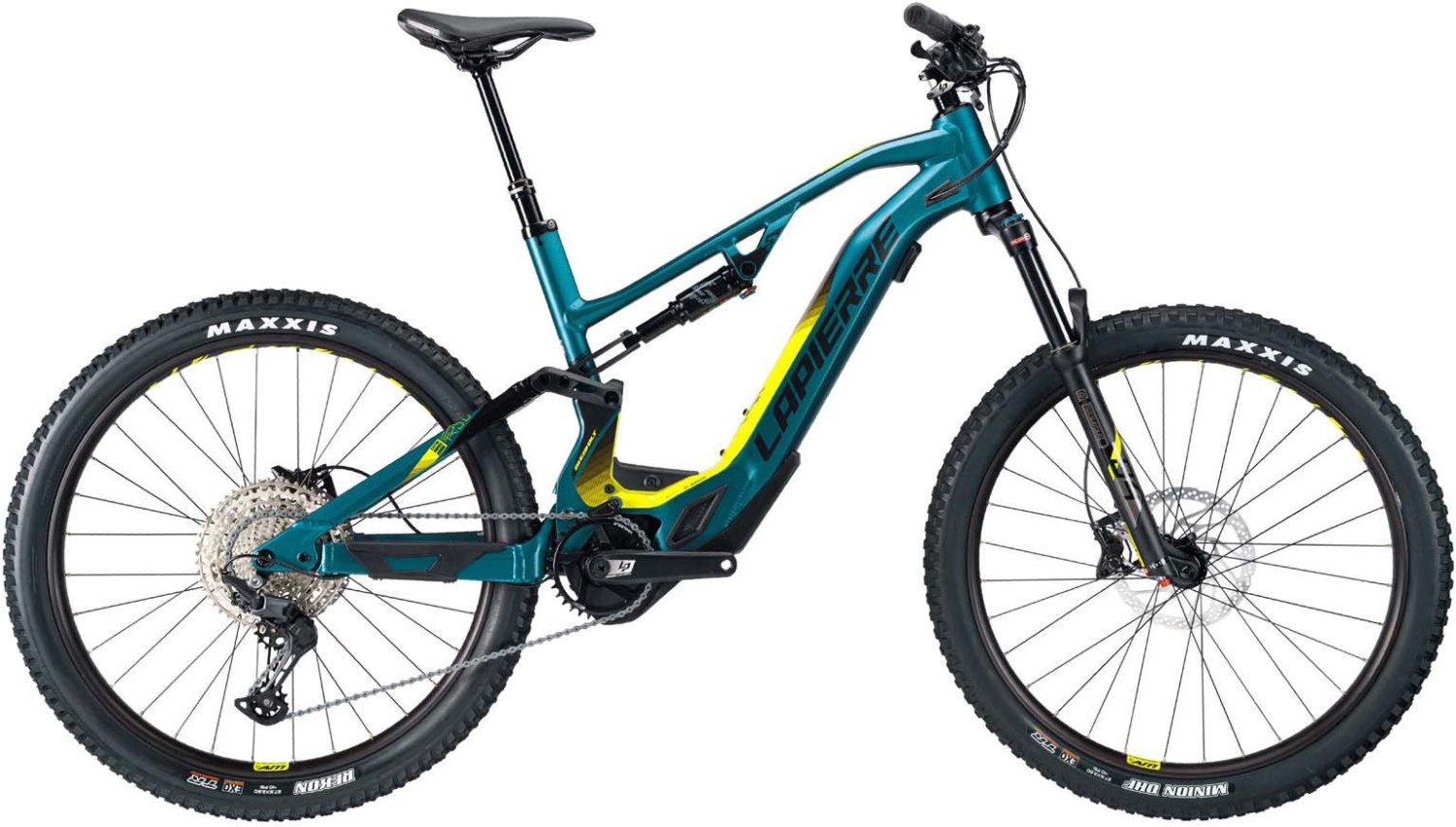

Lapierre Overvolt TR 5.6 27.5" 2021 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Overvolt 130mm travel integrated Bosch Supreme 5 alloy boost + New rear triangle (UDH Dropout + integrated sensor) |
| Fork | SR Suntour XCR 34 Air LO-R 29'' 15x110 130mm travel |
| Rear Shock | Lapierre Shock Trunnion 185x50mm |
| Headset | FSA NO.55R/57E, Anodized black 1-1/8"-1.5" |
| Stem | Lapierre CNC, 0°, Ø: 31.8mm, L: 45mm (S/M), 50mm (L/XL) |
| Bars | Lapierre alloy 6061DB, Width: 760mm, Rise: 15mm (S/M), 30mm (L/XL), Ø: 31.8mm |
| Front Brake | Shimano FT:SMRT30 203mm |
| Rear Brake | RTEM300 With Magnet 180mm (S/M) 203mm (L/XL) |
| Brake Lever | Shimano M4100 4 (FT) / 2 (RR) pistons |
| Rear Mech | Shimano Deore, 11s |
| Shifters | Shimano Deore, 11s |
| Speed | 11 |
| Rims | Lapierre eAM+ 32H, rear: 35-584 |
| Front Hub | Lapierre by Fastace DA210, boost 15x110, 32H Center Lock |
| Rear Hub | Lapierre by Fastace DA210, 4 sealed bearings, boost 12x148, 32H Center Lock |
| Front Tyre | Maxxis Minion DHF, 60TPI, EXO, TR, 27.5x2.6 |
| Rear Tyre | Maxxis Rekon 60TPI, EXO, TR, 27.5x2.6 |
| Seat Post | Lapierre dropper by JD, Ø: 31.6mm, travel 100mm (S), 130mm (M), 150mm (L/XL) + Shimano lever |
| Saddle | Selle Royal Vivo |
| Chainset | New Lapierre Overvolt ISIS 160mm (S/M) / 165mm (L/XL) + E13 steel ring 34T |
| Chain | KMC E11 Turbo 11s |
| Cassette | SHIMANO DEORE 10-51T |
| Pedals | VP VPE-527 |
| Weight | 25.3 kg |
| Battery Size (WH) | BOSCH 625Wh POWERTUBE |
| Motor | Bosch Performance Line CX Gen4 |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
