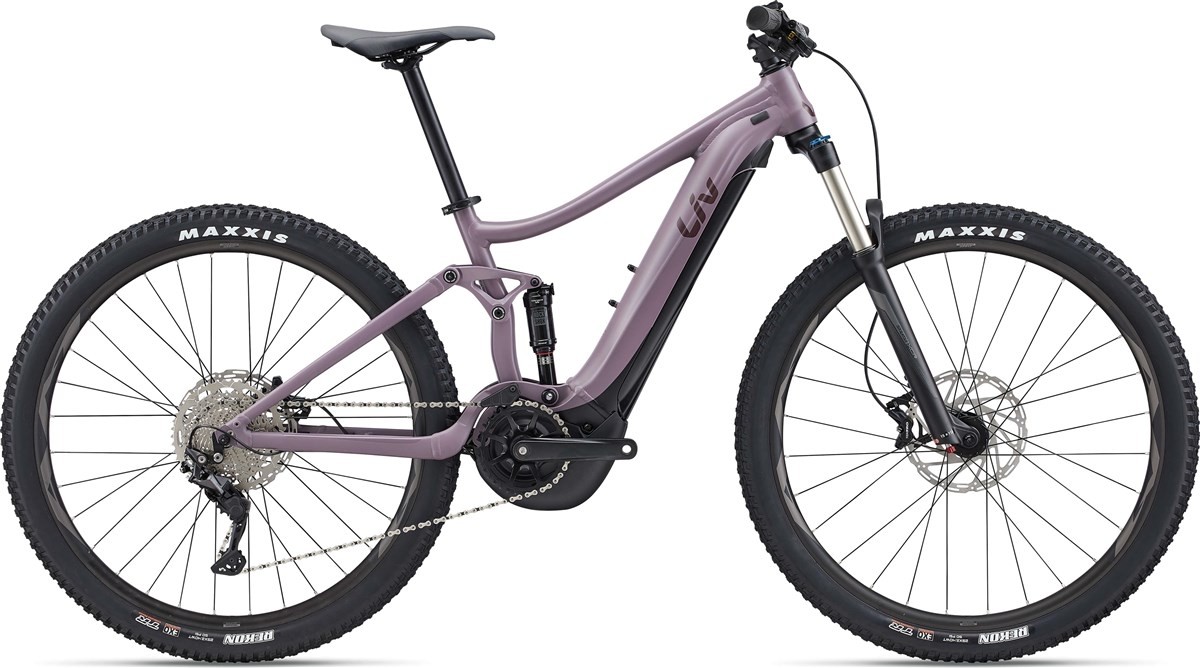

Liv Embolden E+ 2 - Nearly New - S 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount |
| Fork | SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 thru-axle |
| Rear Shock | RockShox Monarch R, High Volume, 184x44mm, custom tuned |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x750~780mm (XS-S: 750 / M-L: 780) |
| Front Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Tektro HD-M745 Orion |
| Front Mech | MRP 1X CS custom |
| Rear Mech | MRP 1X CS custom |
| Shifters | Shimano Deore |
| Speed | 10 |
| Rims | Giant AM 27.5" / 29", Tubeless ready, 30mm inner width (XS: 27.5+ / S-M: 29) |
| Front Hub | Giant eTracker Sport, 15mm Thru-Axle |
| Rear Hub | Giant eTracker Sport 141mm QR |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 29x2.4"/ 27.5x2.4" foldable, 60tpi, EXO, Tubeless Ready (XS: 27.5, S-M: 29) |
| Rear Tyre | Maxxis Rekon 29x2.4"/ 27.5x2.4" foldable, 60tpi, EXO, Tubeless Ready (XS: 27.5, S-M: 29) |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv Sylvia E+ |
| Chainset | Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (XS/S:160, M/L:165) |
| Chain | KMC e.10 Sport, e-bike optimised |
| Cassette | Shimano CS-M4100-10, 11-46T, 10-speed |
| Pedals | Aluminum Platform |
| Battery Size (WH) | EnergyPak Smart 500Wh, 36V Integrated Lithium-Ion |
| Motor | SyncDrive Sport, 70Nm, Powered by Yamaha |
| User Interface | ANT+ Wireless display compatible |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Liv Embolden E+ 2 - Nearly New - S 2022 - Electric Mountain Bike.
This product is no longer available.
