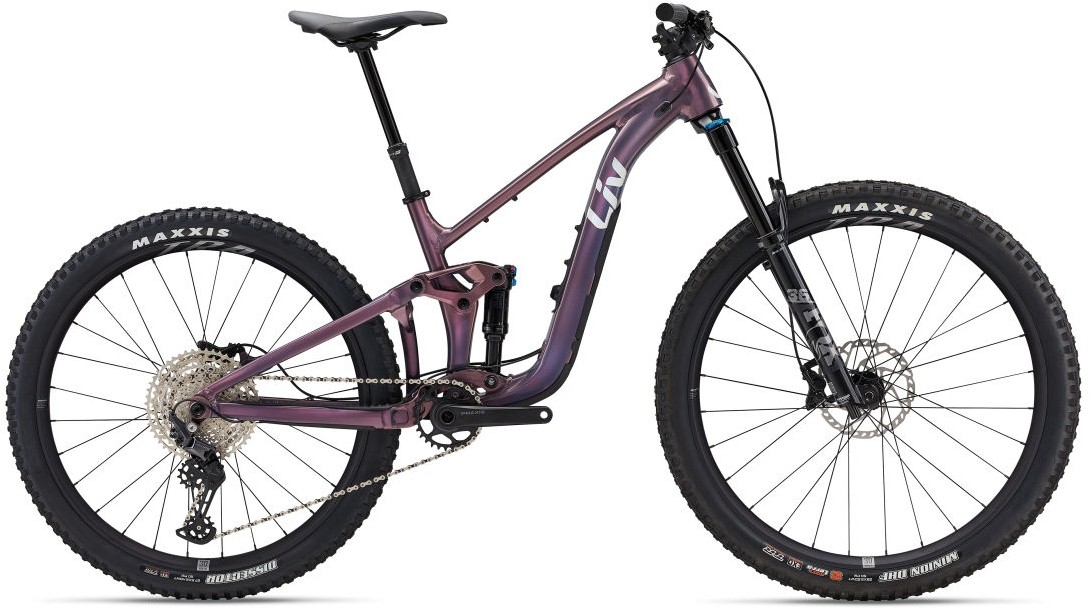

Liv Intrigue X 2 Mountain Bike 2025 - Trail Full Suspension MTB
Key Performance Factors
Performance Mid Travel Trail
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage |
| Fork | Fox 36 Float Rhythm, 150mm, Grip damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
| Rear Shock | Fox Float Performance, 185x52.5, custom tuned for Liv |
| Stem | Giant Contact SL, 35mm |
| Bars | Giant Contact TR35, 20mm rise, alloy |
| Front Brake | Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm |
| Rear Brake | Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm |
| Brake Lever | Shimano BL-MT401 |
| Front Mech | N/A |
| Rear Mech | Shimano Deore, Shadow + |
| Shifters | Shimano Deore, 1x12 |
| Speed | 12 |
| Rims | Giant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Front Hub | alloy, sealed bearing |
| Rear Hub | alloy, sealed bearing |
| Spokes | Sapim |
| Front Tyre | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Rear Tyre | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Seat Post | Giant Contact Switch, adjustable dropper, remote XS&S: 140-170mm travel / 30.9 x 470mm M&L: 170-200mm travel / 30.9 x 530mm |
| Saddle | Liv Sylvia |
| Chainset | Praxis Cadet M24 Boost, 30t, 55mm chainline |
| Bottom Bracket | Praxis, press fit |
| Chain | KMC X12 |
| Cassette | Shimano Deore M6100, 10x51 |
| Pedals | Resin Platform |
Liv Intrigue Sizing
|
|
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
|
<5’0 |
XS |
XS |
XS |
|
|
|
|
|
|
|
5’1 |
XS |
XS |
XS |
XS |
|
|
|
|
|
|
5’2 |
XS |
XS |
XS |
XS |
XS |
|
|
|
|
|
5’3 |
XS |
XS |
S |
S |
S |
|
|
|
|
|
5’4 |
S |
S |
S |
S |
S |
|
|
|
|
|
5’5 |
S |
S |
S |
S |
S |
|
|
|
|
|
5’6 |
|
S |
S |
S |
S |
S |
|
|
|
|
5’7 |
|
|
S |
S |
S |
M |
M |
|
|
|
5’8 |
|
|
M |
M |
M |
M |
M |
|
|
|
5’9 |
|
|
|
M |
M |
M |
M |
|
|
|
5’10 |
|
|
|
|
M |
M |
M |
M |
M |
|
5’11 |
|
|
|
|
M |
M |
M |
M |
M |
|
6’ |
|
|
|
|
|
M |
M |
|
|
Read our bike size guide for more information on sizing.
Liv Intrigue Geometry
|
|
X Small |
Small |
Medium |
|
SEAT TUBE LENGTH (mm) |
380 |
406 |
445 |
|
SEAT TUBE ANGLE |
74.5° |
74.5° |
74.5° |
|
TOP TUBE LENGTH (mm) |
565 |
580 |
595 |
|
HEAD TUBE LENGTH (mm) |
95 |
100 |
105 |
|
HEAD TUBE ANGLE |
66.5° |
66.5° |
66.5° |
|
FORK RAKE (mm) |
44 |
44 |
44 |
|
TRAIL (mm) |
110 |
110 |
110 |
|
WHEELBASE (mm) |
1135 |
1151 |
1167 |
|
CHAIN STAY LENGTH (mm) |
438 |
438 |
438 |
|
BOTTOM BRACKET DROP (mm) |
15 |
15 |
15 |
|
STACK (mm) |
577 |
582 |
587 |
|
REACH (mm) |
405 |
418 |
432 |
|
STAND OVER HEIGHT (mm) |
692 |
711 |
738 |
|
HANDLEBAR WIDTH (mm) |
760 |
760 |
780 |
|
STEM LENGTH (mm) |
40 |
40 |
50 |
|
CRANK LENGTH (mm) |
165 |
170 |
170 |
|
WHEEL SIZE |
27.5" |
27.5" |
27.5" |
