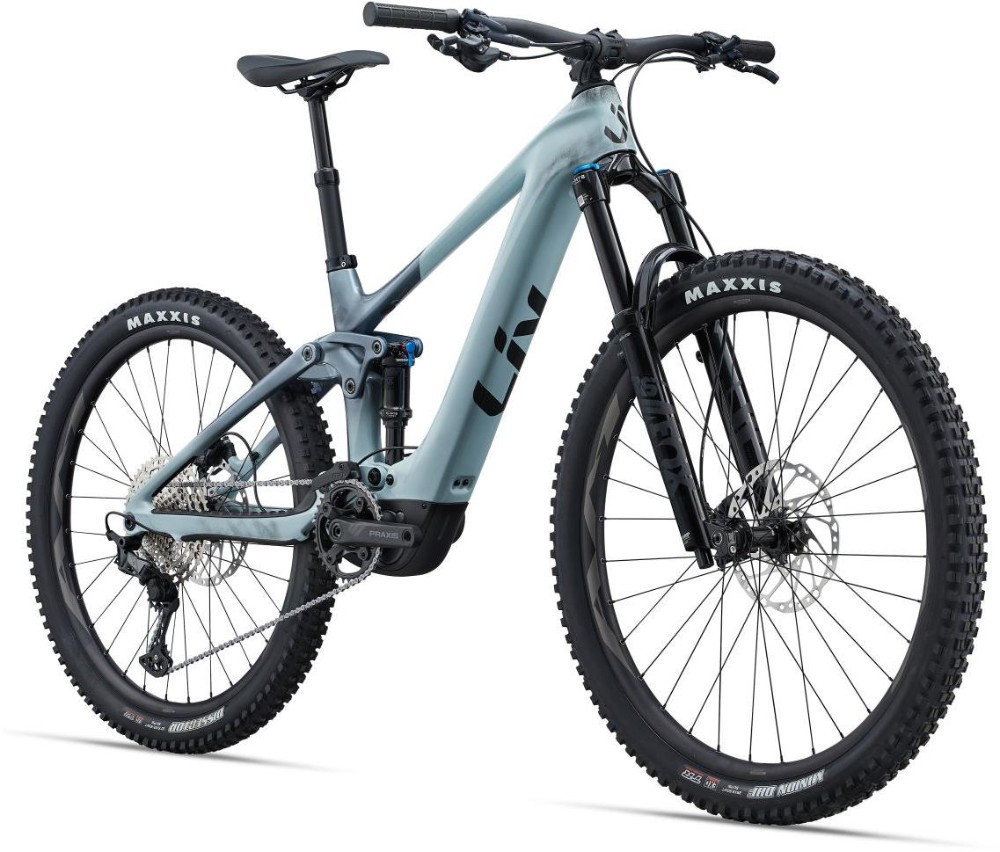

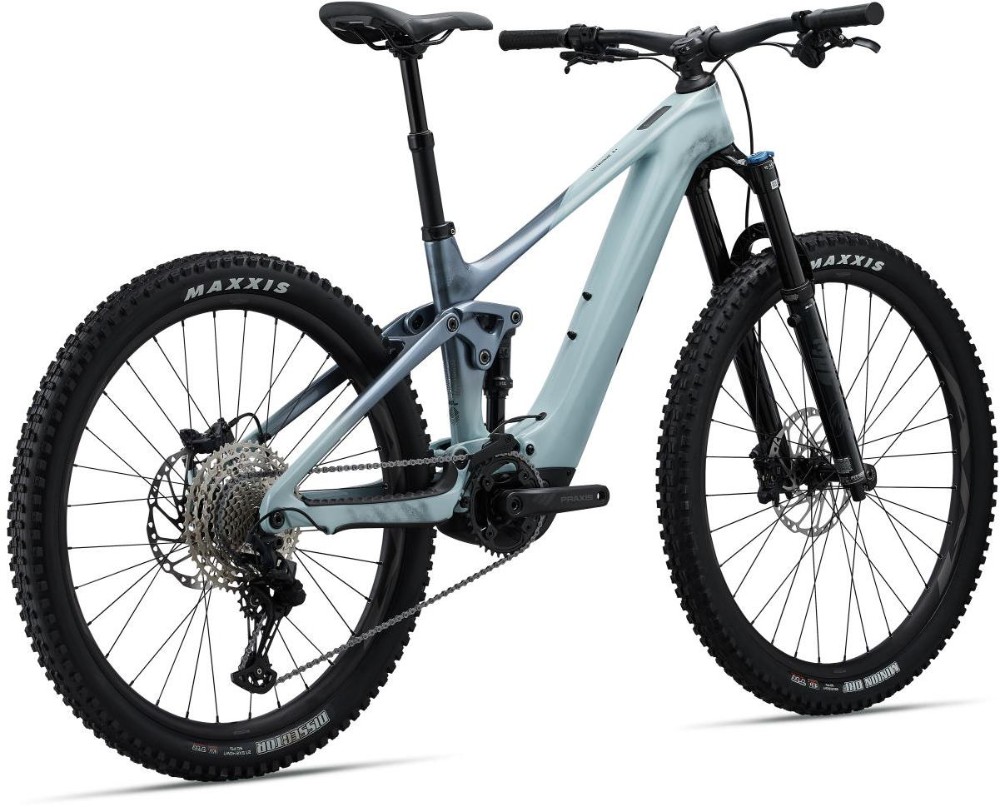

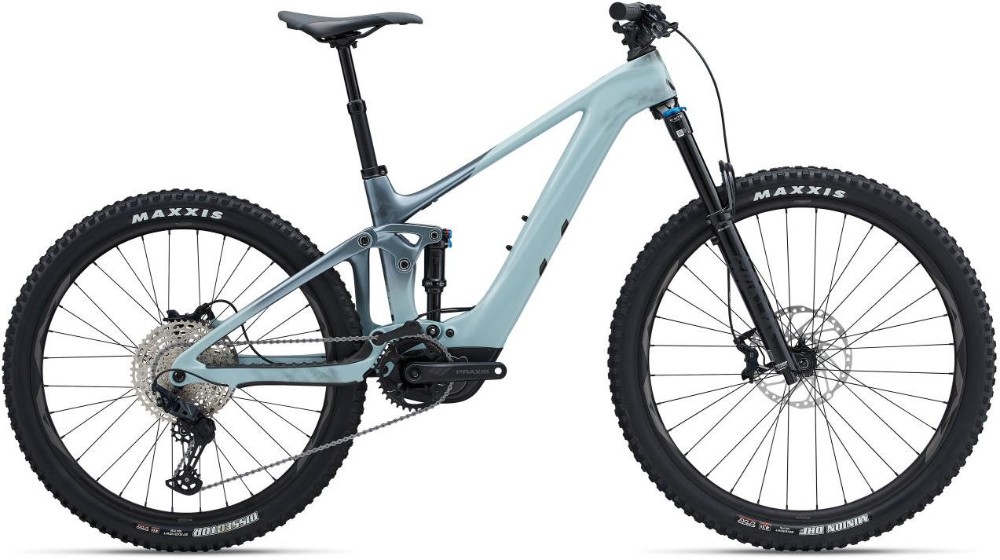

Liv Intrigue X Advanced E+ Elite 2 2023 - Electric Mountain Bike
RANGE
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system MX (front 29", rear 27.5") |
| Fork | Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-optimised |
| Rear Shock | Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L) |
| Front Brake | Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Shimano Deore SLX, I-spec EV |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore SLX, 12-speed, Shadow+ |
| Shifters | Shimano SLX |
| Speed | 12 |
| Rims | Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimised |
| Front Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [r] Race [f], e-bike optimised |
| Front Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Rear Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (XS-S: 100/ M:125/ L:150) |
| Saddle | Liv Sylvia E+ |
| Chainset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS/S:160, M/L:165) |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, EnergyPak Plus 200 range extender compatible |
| Motor | SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology |
| User Interface | RideControl GO, frame integrated LED console Optional wireless ANT+ display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
