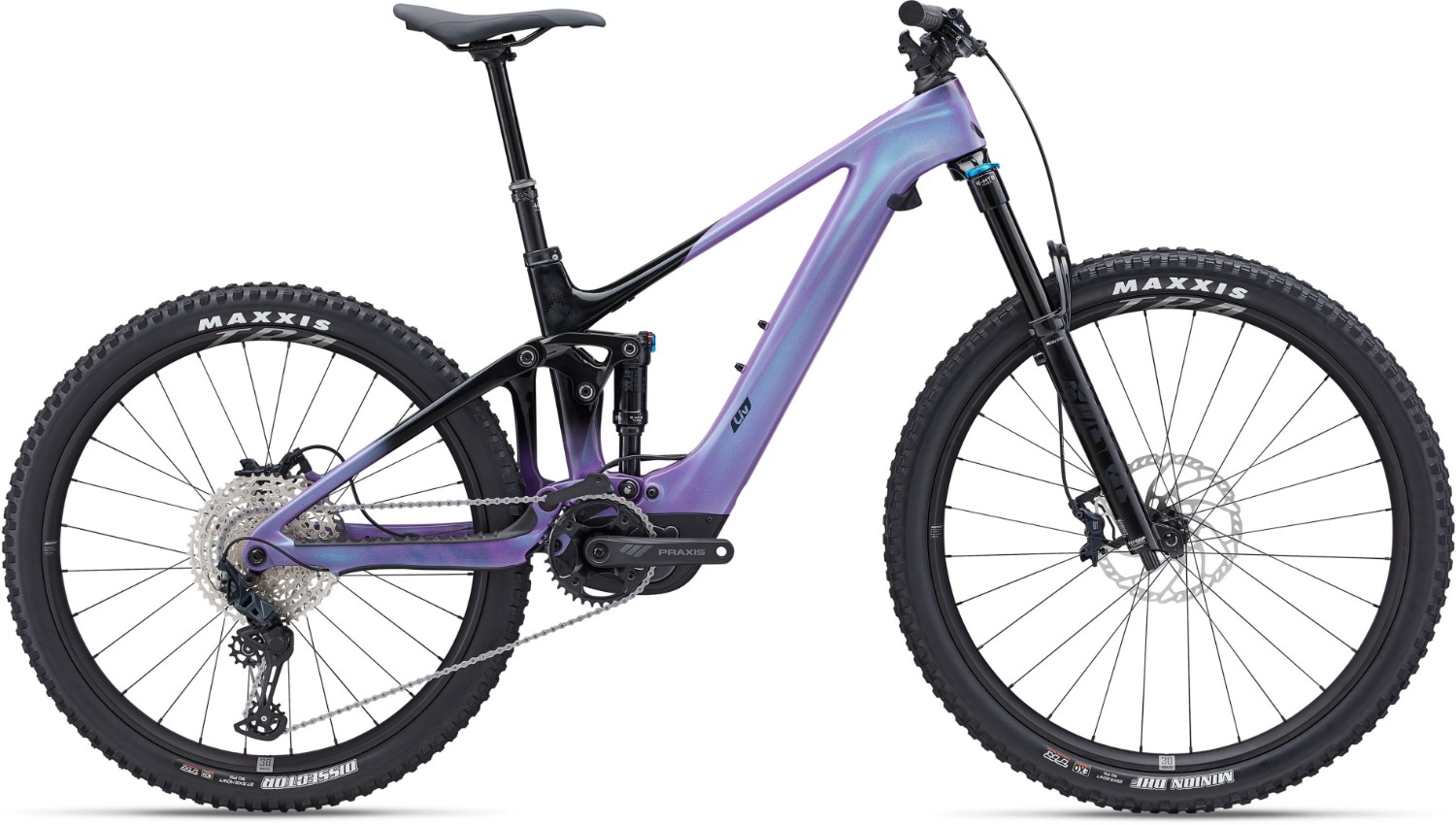

Liv Intrigue X Advanced E+ Elite 2 2024 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110 |
| Rear Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail |
| Front Brake | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Shimano SLX, I-spec EV |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano SLX |
| Shifters | SHIMANO SLX 1x12 |
| Speed | 12 |
| Rims | E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R] 30mm inner width |
| Front Hub | E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R] |
| Rear Hub | E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R] |
| Front Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Rear Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Seat Post | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm) |
| Saddle | Liv Sylvia E+ |
| Chainset | Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks |
| Bottom Bracket | N/A |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano HG-M6100, 10-51T |
| Pedals | PEDALS NOT SUPPLIED |
| Battery Size (WH) | Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Motor | Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology |
| User Interface | Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
