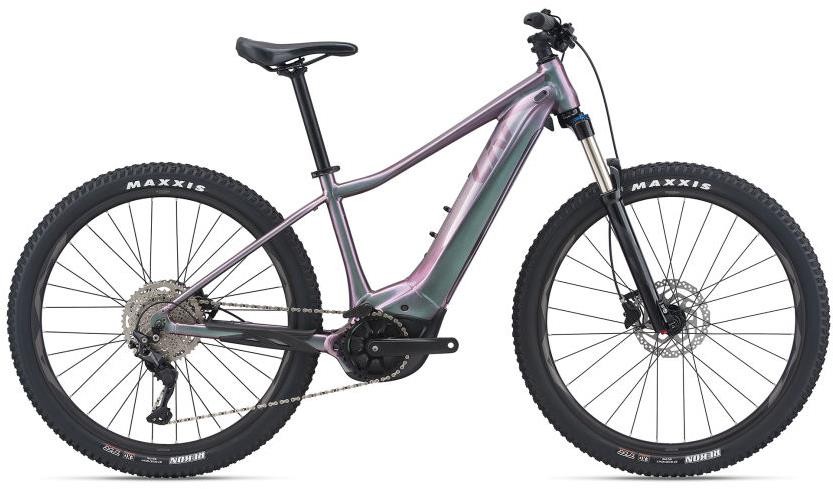

Liv Vall-E+ 2021 - Electric Mountain Bike
Epic rides are now within reach - access the mountainous adventures of your dreams.
Accessible and Reliable
Access to new trails and experiences is easily within reach thanks to the 180 km range of the ultra-reliable EnergyPak Smart 500Wh battery. The SyncDrive Sport motor, powered by Yamaha, delivers 70Nm of torque and has six speed control settings, ranging from 50-350%.
Integrated Design
Along with the integrated speed sensor, the EnergyPak Smart battery is integrated into the downtube and easily accessible.
Smooth Riding
Smart Assist Technology smooths out bumps along the ride, and RideControl ONE controls are easy to access and use on the handlebar to select pedal assist functions and view battery levels.
Whether you’re looking to ride faster, go farther or gain fitness, Vall E+ will take you beyond boundaries. Adjust your riding mode with the handlebar-mounted RideControl ONE, which connects to an app so you can see your ride information, such as battery level and support level. Vall E+ features the SyncDrive Sport motor, which offers six levels of assistance for speed control. Designed to match you with just the right wheel size for balance and maneuverability, XS and S frames come with 27.5-inch wheels, while M frames come with 29-inch wheels. Combining a smooth, integrated battery and capable motor design, Liv’s 3F Design Philosophy provides an efficient ride. A 120mm suspension fork and seamless power integration allow you to get to the trailhead faster and climb steeper routes, so you can enjoy the vistas and descents.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | ALUXX SL-Grade Aluminium, Overdrive 1½ - 1⅛ inch headtube, 141mm Boost QR, integrated KS18 kickstand mount, compatible with fenders |
Fork | SR Suntour XCR 32 Boost Coil LOR 27.5 / 29 120mm travel, Tapered 1½ - 1⅛ inch steerer, lockout (XS-S: 27.5", M: 29") |
Stem | Giant Contact |
Bars | Giant Connect TR Riser 31.8x690~750mm (XS-S: 690 / M: 750) |
Front Brake | Shimano BR-MT200, hydraulic disc, 180mm |
Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm |
Brake Lever | Shimano BL-MT200 |
Front Mech | chainguide |
Rear Mech | Shimano Deore, 10-Speed, Shadow+ |
Shifters | Shimano Deore |
Speed | 10 |
Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimised, Giant AM 27.5, Tubeless ready, 30mm inner width, e-bike optimised |
Front Hub | Giant eTracker Sport, 15mm Thru-Axle, e-bike optimised |
Rear Hub | Giant eTracker Sport,141mm QR, e-bike optimised |
Spokes | Stainless steel |
Front Tyre | Maxxis Rekon 29x2.4 / 27.5x2.4, Foldable, EXO, Tubeless Ready |
Rear Tyre | Maxxis Rekon 29x2.4 / 27.5x2.4, Foldable, EXO, Tubeless Ready |
Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
Saddle | Liv Sport |
Chainset | Forged Alloy minimal Q-factor , 36T Steel Direct Mount |
Chain | KMC e.10 Sport, e-bike optimised |
Cassette | Shimano CS-M4100-10 11-46T 10-speed |
Pedals | Aluminium Platform |
Battery Size (WH) | Giant EnergyPak Smart 500, 36V Integrated Lithium-Ion |
Motor | Giant SyncDrive Sport |
User Interface | Giant RideControl Plus |
Liv Vall-E+ Bike Sizing
See the table below to find the right size Liv Vall-E+.
Inside leg / Height |
26” / 66cm |
27” / 69cm |
28” / 71cm |
29” / 74cm |
30” / 76cm |
31” / 79cm |
32” / 81cm |
33” / 84cm |
34” / 86cm |
5’0” / 152cm |
XS |
XS |
XS |
|
|
|
|
|
|
5’1” / 155cm |
XS |
XS |
XS |
XS |
|
|
|
|
|
5’2” / 157cm |
XS |
XS |
XS |
XS |
XS |
|
|
|
|
5’3” / 160cm |
XS |
XS |
S |
S |
S |
|
|
|
|
5’4” / 163cm |
S |
S |
S |
S |
S |
|
|
|
|
5’5” / 165cm |
S |
S |
S |
S |
S |
|
|
|
|
5’6” / 168cm |
|
S |
S |
S |
S |
S |
|
|
|
5’7” / 170cm |
|
|
S |
S |
S |
M |
M |
|
|
5’8” / 173cm |
|
|
|
M |
M |
M |
M |
M |
|
5’9” / 175cm |
|
|
|
M |
M |
M |
M |
M |
|
5’10” / 178cm |
|
|
|
|
M |
M |
M |
M |
M |
5’11” / 180cm |
|
|
|
|
M |
M |
M |
M |
M |
6’0” / 183cm |
|
|
|
|
|
M |
M |
|
|
Read our bike size guide for more information on sizing.
