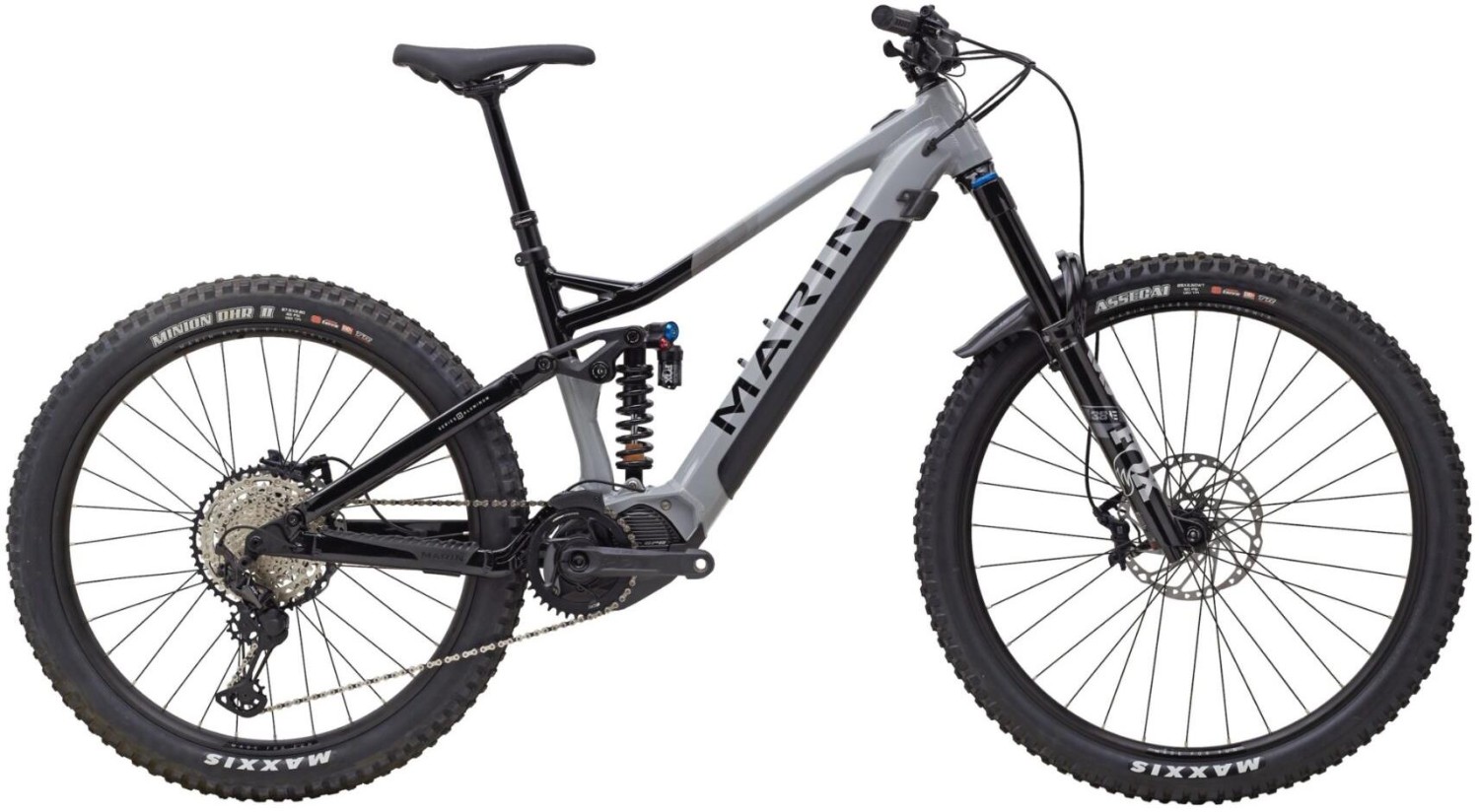

Marin Alpine Trail E2 29" 2022 - MTB Bike
- Shimano STEPS EP8 system and 630Wh battery
- Fox 38/Float DHX2 Performance Elite suspension
- Shimano XT/SLX 12-speed drivetrain w/10-51t cassette
- Shimano SLX 4-piston disc brakes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Fork | Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender |
| Headset | FSA No 57, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Deity Copperhead 35mm, Black Ano |
| Bars | Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width |
| Front Brake | Shimano SLX Hydraulic Disc, 203mm Rotor |
| Rear Brake | Shimano SLX Hydraulic Disc, 203mm Rotor w/ Speed Sensor |
| Brake Lever | Shimano SLX Levers, I-Spec EV |
| Rear Mech | Shimano XT 12-Speed, SGS |
| Shifters | Shimano SLX 12-Speed, I-Spec EV |
| Speed | 12 |
| Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Front Hub | Forged Alloy, 110x15mm, Centerlock Disc, 32H |
| Rear Hub | Forged Alloy, E-Bike Specific Design, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, EXO+, Tubeless Compatible |
| Rear Tyre | Rear: Maxxis Minion DHR II 27.5x2.8”, 3C Maxx Terra, EXO+, Tubeless Compatible |
| Seat Post | X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
| Saddle | Marin E-MTB Saddle |
| Chainset | e13 e*Spec Plus Crank, 165mm Length with e13 e*Spec DM Chainring 38T |
| Chain | KMC E12S, E-Bike Specific Chain |
| Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Battery Size (WH) | BT-8036, Internal 630Wh |
| Motor | Shimano STEPS EP8 Drive Unit, 250W, 85Nm |
| User Interface | SC-E8000 Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
