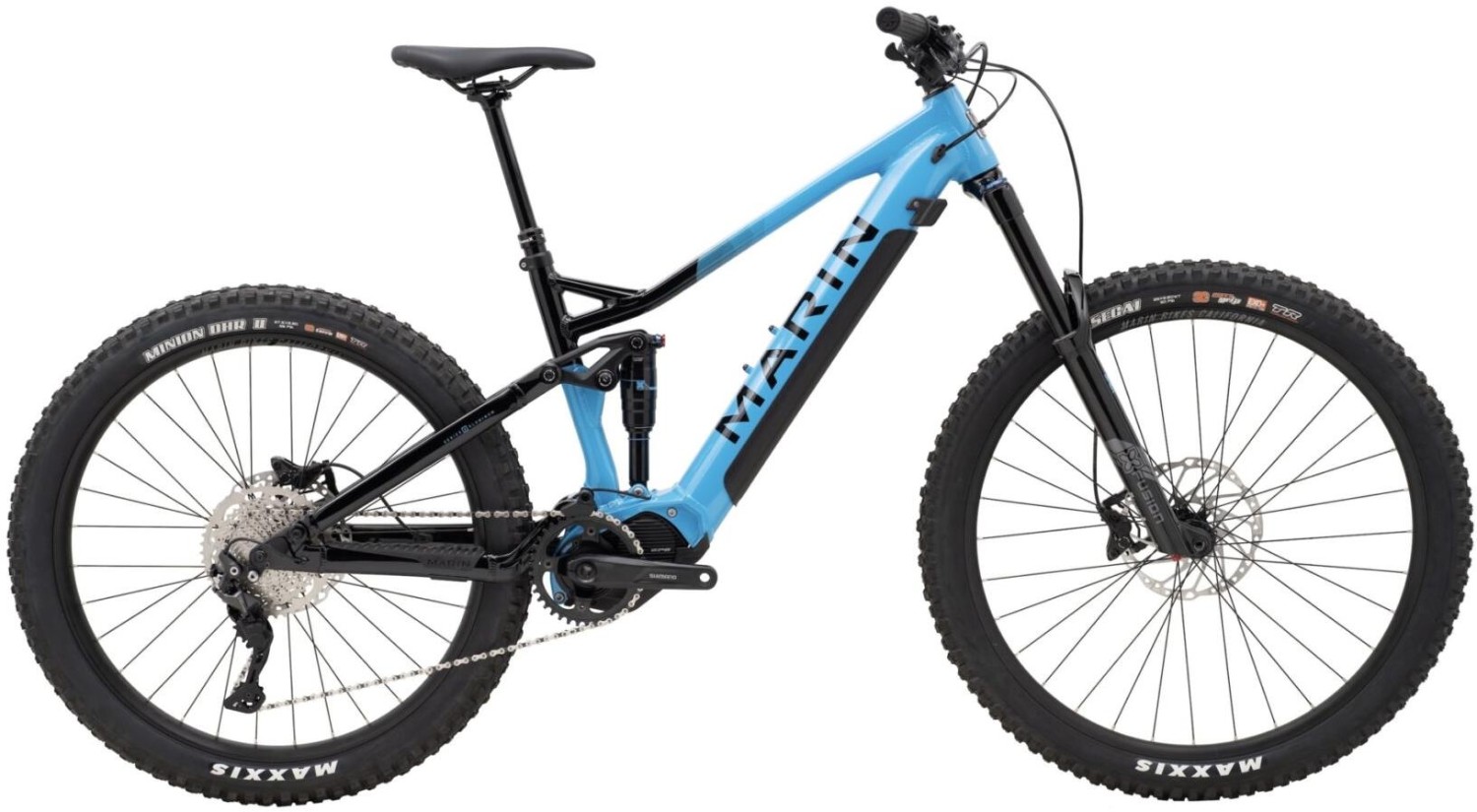

Marin Alpine Trail E 2025 - Electric Mountain Bike
The Marin Alpine Trail E embodies the spirit of adventure. Its robust Series 4 alloy frame, paired with 150mm multitrac suspension, guarantees a smooth and controlled ride over challenging terrains. Powered by the Shimano EP6 drive unit and an internal 504Wh battery, this eMTB offers impressive range and performance.
Key Features:
- Series 4 alloy frame with trail geometry ensures nimble control
- X-Fusion Trace 36 RC 160mm suspension forks for confident handling
- X-Fusion O2 Pro RXC rear shock for a comfortable ride
- Shimano Deore 10-speed drivetrain delivers precise shifting
- Shimano MT420 4-piston hydraulic disc brakes for controlled braking
- Maxxis Assegai 29x2.5" front tyre and Maxxis Minion DHR II 27.5x2.8" rear tyre
- Available with 0% APR finance
Drive Information:
- Motor: Shimano new motor
- Battery: BT-8N/A35L, internal 504Wh capacity
- User Interface: SC-E6N/A display, intuitive and user-friendly remote switch
Designed around a Series 4 alloy frame and featuring 150mm multitrac suspension, this bike effortlessly handles rough trails. Powered by the Shimano EP6 drive unit and a long-lasting internal 504Wh battery, it ensures an exhilarating ride every time.
Equipped with Shimano Deore 10-speed drivetrain and Shimano EM600 crankset, shifting gears seamlessly becomes second nature. The powerful Shimano MT420 4-piston hydraulic disc brakes with 203mm rotors provide reliable stopping power, ensuring your safety on descents.
Rolling on Marin aluminum double-wall rims and grippy Maxxis Assegai 29x2.5" front and Maxxis Minion DHR II 27.5x2.8" rear tyres, this bike delivers exceptional traction and control. The Marin eMTB saddle ensures comfort during long rides, making every adventure enjoyable.
Experience the thrill of eMTB riding with the Marin Alpine Trail E, where every trail becomes an thrilling journey.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 4 Alloy Frame, 150mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Fork | X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset |
| Rear Shock | X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount |
| Headset | FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Front Brake | Shimano MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor |
| Rear Brake | Shimano MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor w/ Speed Sensor |
| Brake Lever | Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible |
| Rear Mech | Shimano Deore, Direct Attachment, 10-Speed SGS |
| Shifters | Shimano Deore, 10-Speed, I Spec EV |
| Speed | 11 |
| Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H |
| Rear Hub | Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8, 3C Maxx Terra, EXO+, Tubeless Compatible |
| Rear Tyre | Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, Double Down, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8, 3C Maxx Terra, EXO+, Tubeless Compatible |
| Seat Post | TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm |
| Saddle | Marin E-MTB Saddle |
| Chainset | Shimano EM600, 160mm Length |
| Chain | KMC X-10E, Silver |
| Cassette | Shimano Deore 10-speed 11-46T |
| Pedals | Marin MTB Platform Pedals |
| Battery Size (WH) | BT-8N/A35L, Internal 5N/A4Wh |
| Motor | Shimano New Motor |
| User Interface | SC-E6N/AN/A Display |
Marin Alpine Trail E 2024 Size Chart
|
Size |
Height (cm) |
Height (Feet) |
|
S |
160 – 168 |
5’3” – 5’6” |
|
M |
168 - 178 |
5’6” – 5’10” |
|
L |
178 – 188 |
5’10” – 6’1” |
|
XL |
188 - 193 |
6’1” – 6’4” |
What size frame do I need if I am between sizes? - read here
Marin Alpine Trail E 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Stack mm |
613 |
622 |
631 |
640 |
|
Reach mm |
445 |
465 |
485 |
505 |
|
Head Tube Angle |
63° |
63° |
63° |
63° |
|
Head Tube Length mm |
100 |
110 |
120 |
130 |
|
Seat Tube Angle |
78° |
78° |
78° |
78° |
|
Seat Tube Length mm |
390 |
400 |
425 |
430 |
|
Top Tube Effective mm |
575 |
597 |
619 |
641 |
|
BB Height mm |
340.5 |
340.5 |
340.5 |
340.5 |
|
BB Drop mm |
28 |
28 |
28 |
28 |
|
Chain Stay mm |
435 |
435 |
435 |
435 |
|
Wheel Base mm |
1215 |
1239 |
1264 |
1288 |
|
Stand Over Height mm |
681.6 |
681.4 |
686.8 |
689.8 |
|
Fork Offset mm |
44 |
44 |
44 |
44 |
|
Seat Post Diameter mm |
30.9 |
30.9 |
30.9 |
30.9 |
|
Handlebar Width mm |
780 |
780 |
780 |
780 |
|
Stem Length mm |
35 |
35 |
35 |
35 |
|
Crank Length mm |
160 |
160 |
160 |
160 |
