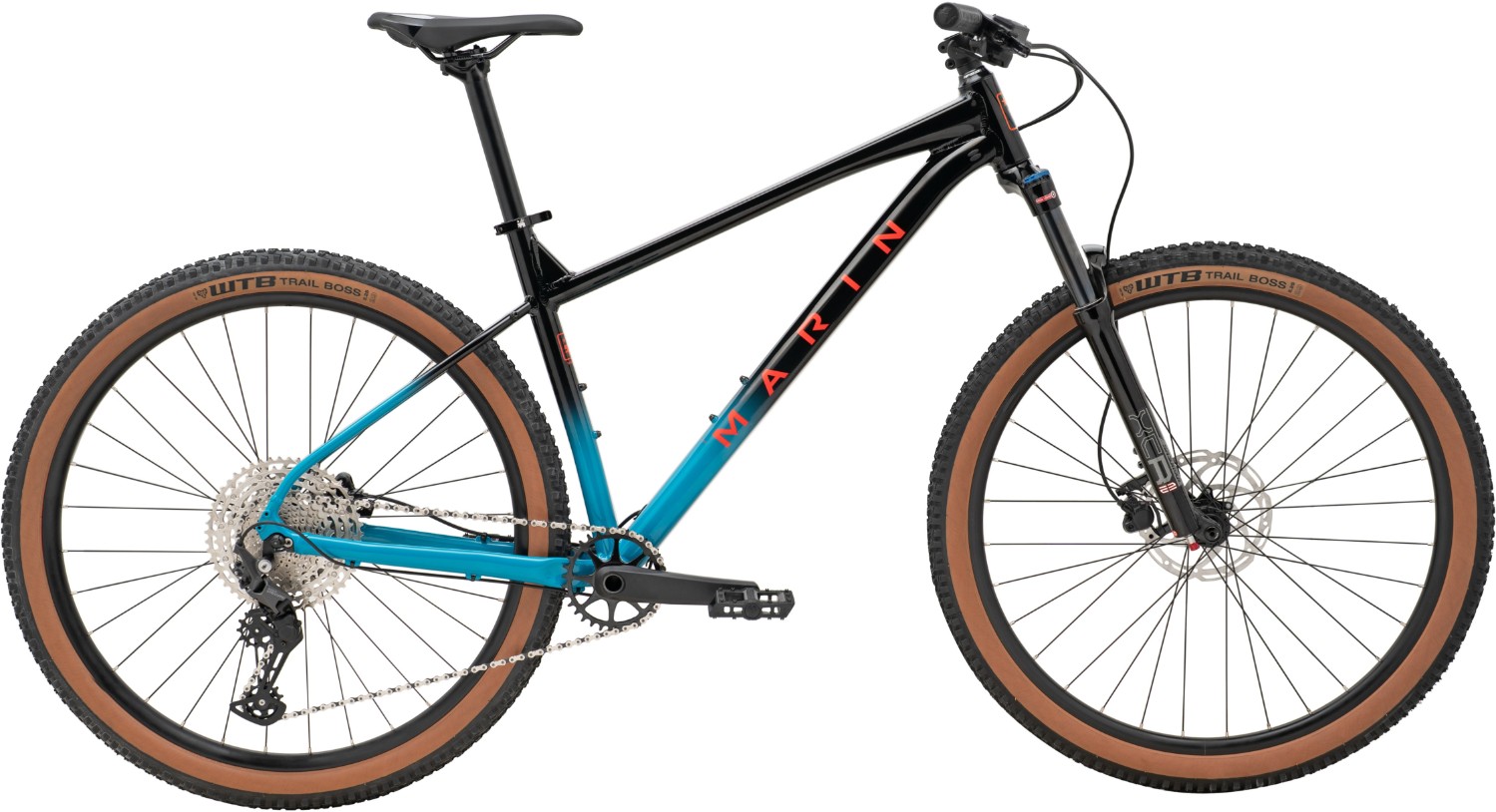

Marin Bobcat Trail 5 29" Mountain Bike 2025 - Hardtail MTB
The Marin Bobcat Trail 5 29" takes trail riding to the next level with its robust Series 2 aluminium frame and upgraded Shimano CUES 1x11 drivetrain. Built for riders looking to explore singletracks and challenging terrains, the SR Suntour XCR LOR-DS BOOST fork offers 120mm of travel for added control and comfort over rough trails. Equipped with hydraulic disc brakes and tubeless-compatible rims, this bike ensures you’re ready to handle a variety of conditions with confidence. Whether you’re a seasoned rider or just getting into mountain biking, the Bobcat Trail 5 has the performance features to keep you shredding with ease.
Key Features:
- Frame: Series 2 6061 Aluminium, internal cable routing, dropper post ready
- Fork: SR Suntour XCR LOR-DS BOOST, 120mm travel with lockout
- Drivetrain: Shimano CUES 11-speed, wide-range 11-48T cassette
- Brakes: Tektro M280 hydraulic disc brakes, 180mm front rotor, 160mm rear rotor
- Wheels: Marin aluminium double wall rims, 29” wheels, tubeless compatible
- Tyres: WTB Trail Boss 2.25”, versatile tread for trail performance
- Other Standout Feature: Tubeless compatibility for improved grip and lower rolling resistance
- Finance Option: Available with 0% APR finance
The Marin Bobcat Trail 5 is built to offer the best bang for your buck when it comes to trail riding performance. Its Series 2 aluminium frame provides a lightweight yet sturdy base, with modern geometry that ensures a stable ride while also being nimble enough to tackle technical sections. The SR Suntour XCR fork, with its 120mm of travel, smooths out the bumps, while the thru-axle provides extra stiffness for improved handling.
The Shimano CUES 11-speed drivetrain gives you a wide gear range to tackle climbs and fast descents, while the hydraulic disc brakes offer reliable stopping power in all conditions. The 29” wheels and WTB Trail Boss tyres ensure you have plenty of traction on loose or muddy terrain, and the tubeless-ready rims mean you can upgrade for even more control and reduced punctures.
Whether you’re looking to push your limits on local trails or take on new adventures, the Bobcat Trail 5 is up for the challenge.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing |
| Fork | SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout, 42mm (27.5") and 46mm (29") Offsets |
| Stem | Marin Alloy, 31.8mm Clamp, 45mm |
| Bars | Marin 31.8 Riser, 12mm Rise, 780mm Width |
| Front Brake | Tektro M280 Hydraulic Disc, 180mm Rotor |
| Rear Brake | Tektro M280 Hydraulic Disc, 160mm Rotor |
| Brake Lever | Tektro M280 Hydraulic |
| Rear Mech | Shimano CUES U6000GS, w/Clutch |
| Shifters | Shimano CUES 11-Speed |
| Speed | 11 |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Front Hub | Forged Alloy, Disc, 32H |
| Rear Hub | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | WTB Trail Boss Comp, 27.5/29x2.25”, Wire Bead |
| Rear Tyre | WTB Trail Boss Comp, 27.5/29x2.25”, Wire Bead |
| Seat Post | Marin Alloy, 30.9 |
| Saddle | Marin MTB |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC LG |
| Cassette | Shimano CUES CSLG400, 11-Speed, 11-48T |
| Pedals | Nylon Platform |
Bobcat Trail Sizing
See the table below to find the right size Marin Bobcat Trail.
|
Size |
XS (27.5”) |
S (27.5”) |
M (27.5”) |
M (29”) |
L (29”) |
XL (29”) |
XXL (29”) |
|
Rider Height Range |
5’0” – 5’4” |
5’4” – 5’7” |
5’7” – 5’10” |
5’6” – 5’9” |
5’6” – 6’0” |
6’0” – 6’2” |
6’2” – 6’4” |
Read our bike size guide for more information on sizing.
Bobcat Trail Geometry
|
Size |
XS |
S |
M |
L |
XL |
XXL |
|
Wheel Size |
27.5” |
27.5” |
27.5” / 29” |
29” |
29” |
29” |
|
Stack (mm) |
578.56 |
583.19 |
587.83 / 613.97 |
618.6 |
623.24 |
627.88 |
|
Reach (mm) |
409.1 |
422.88 |
438.44 / 430.95 |
449.62 |
465.29 |
474.96 |
|
Head Tube Angle |
68 |
68 |
68 / 68 |
68 |
68 |
68 |
|
Head Tube Length (mm) |
100 |
105 |
110 / 110 |
115 |
120 |
125 |
|
Seat Tube Angle Virtual |
74 |
74 |
74 / 72.7 |
72.7 |
72.7 |
72.7 |
|
Seat Tube Angle Actual |
74 |
74 |
74 / 74 |
74 |
74 |
74 |
|
Seat Tube Length (mm) |
330 |
381 |
431 / 431 |
482 |
520 |
559 |
|
Top Tube Actual (mm) |
564.23 |
570.64 |
583.64 / 580.16 |
599.16 |
618.12 |
633.44 |
|
Top Tube Effective (mm) |
575 |
590 |
607 / 607 |
627 |
644 |
655 |
|
Bottom Bracket Height (mm) |
304.5 |
304.5 |
304.5 / 311 |
311 |
311 |
311 |
|
Bottom Bracket Drop (mm) |
48 |
48 |
48 /61 |
61 |
61 |
61 |
|
Chain Stay (mm) |
430 |
430 |
430 / 445 |
445 |
445 |
445 |
|
Wheelbase (mm) |
1098.23 |
1113.77 |
1131.32 / 1150.17 |
1170.17 |
1182.25 |
1199.8 |
|
Standover Height (mm) |
639.7 |
679.36 |
723.37 / 735.3 |
778.55 |
809.93 |
838.88 |
|
Fork Offset (mm) |
44 |
44 |
44 /51 |
51 |
51 |
51 |
|
Seatpost Diameter (mm) |
45 |
45 |
45 /45 |
45 |
45 |
45 |
|
Handlebar Width (mm) |
720 |
720 |
720 / 720- |
720 |
720 |
720 |
|
Stem Length (mm) |
45 |
45 |
45 /45 |
45 |
45 |
45 |
|
Crank Length (mm) |
170 |
170 |
175 / 175 |
175 |
175 |
175 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
