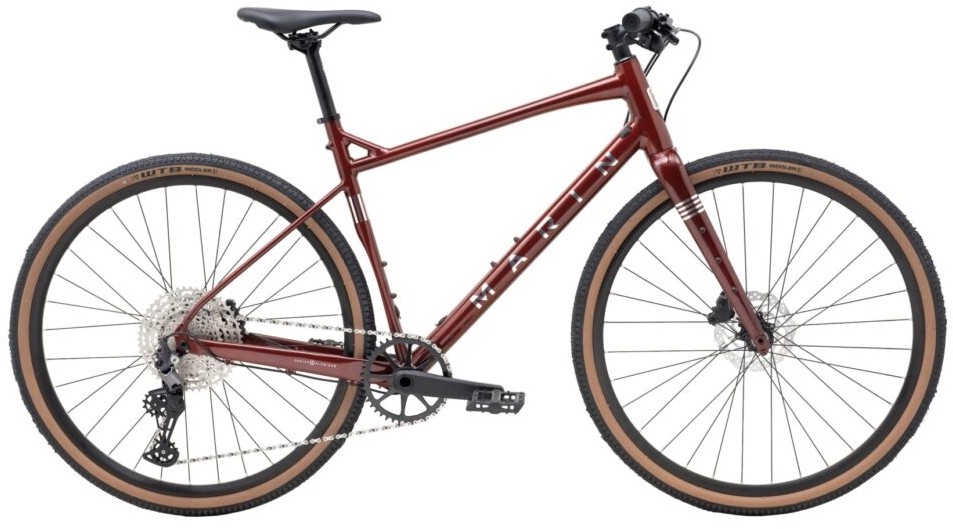

Marin DSX 2 2025 - Gravel Bike
Built around a Series 3 aluminum frame and a lightweight, feature-rich carbon fork with ample mounting points for bikepacking gear, the DSX 2 stands out with its 12-speed 1X Shimano Deore drivetrain, Tektro hydraulic brakes, and WTB Riddler tires. The Marin DSX 2 is your ticket to a versatile cycling experience, blending flat-bar agility with off-road prowess.
Key Features:
- Frame: Series 3 DSX, 6061 aluminum, tapered head tube, flat mount disc, 142x12mm thru-axle
- Fork: Marin full carbon, tapered steerer, flat-mount disc, fender eyelets
- Drivetrain: Shimano Deore 12-speed, forged aluminum crank, 42t steel narrow-wide chainring
- Brakes: Shimano MT201/UR300 hydraulic disc, 160mm rotors
- Wheels: Marin aluminum double wall, 21mm inner, disc-specific
- Tyres: WTB Riddler, 700cx45mm, for versatile traction
- Standout Feature: Flat-bar agility with a mountain bike spirit
- Finance Option: Available with 0% APR finance.
With Marin components and WTB Riddler tires, the DSX 2 is ready for any terrain, from daily commutes to multi-day epics.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Bars | Marin MiniRiser |
| Front Brake | Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor |
| Rear Brake | Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor |
| Brake Lever | Shimano Hydraulic |
| Rear Mech | Shimano Deore 12-speed |
| Shifters | Shimano Deore 12-Speed |
| Speed | 12 |
| Rims | Marin Aluminum Double Wall, 21mm Inner, Disc Specific |
| Front Hub | Forged Aluminum, 100x12mm, Disc, 32H |
| Rear Hub | Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | WTB Riddler, 700Cx45mm |
| Rear Tyre | WTB Riddler, 700Cx45mm |
| Seat Post | Marin Alloy |
| Saddle | Marin DSX |
| Chainset | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Bottom Bracket | Sealed Outboard Bearing |
| Chain | KMC X12 |
| Cassette | Shimano Deore 12-Speed, 10-51T |
| Pedals | Resin Platform |
Marin DSX Size Chart
|
|
Height (cm) |
Height (in) |
|
S |
160 - 168 |
5' 3" - 5' 6" |
|
M |
168 - 178 |
5' 6" - 5' 10" |
|
L |
178 - 188 |
5' 10" - 6' 2" |
|
XL |
188 - 193 |
6' 2" - 6' 4" |
What size frame do I need if I am between sizes? - read here
