(1)Product ID: 262262

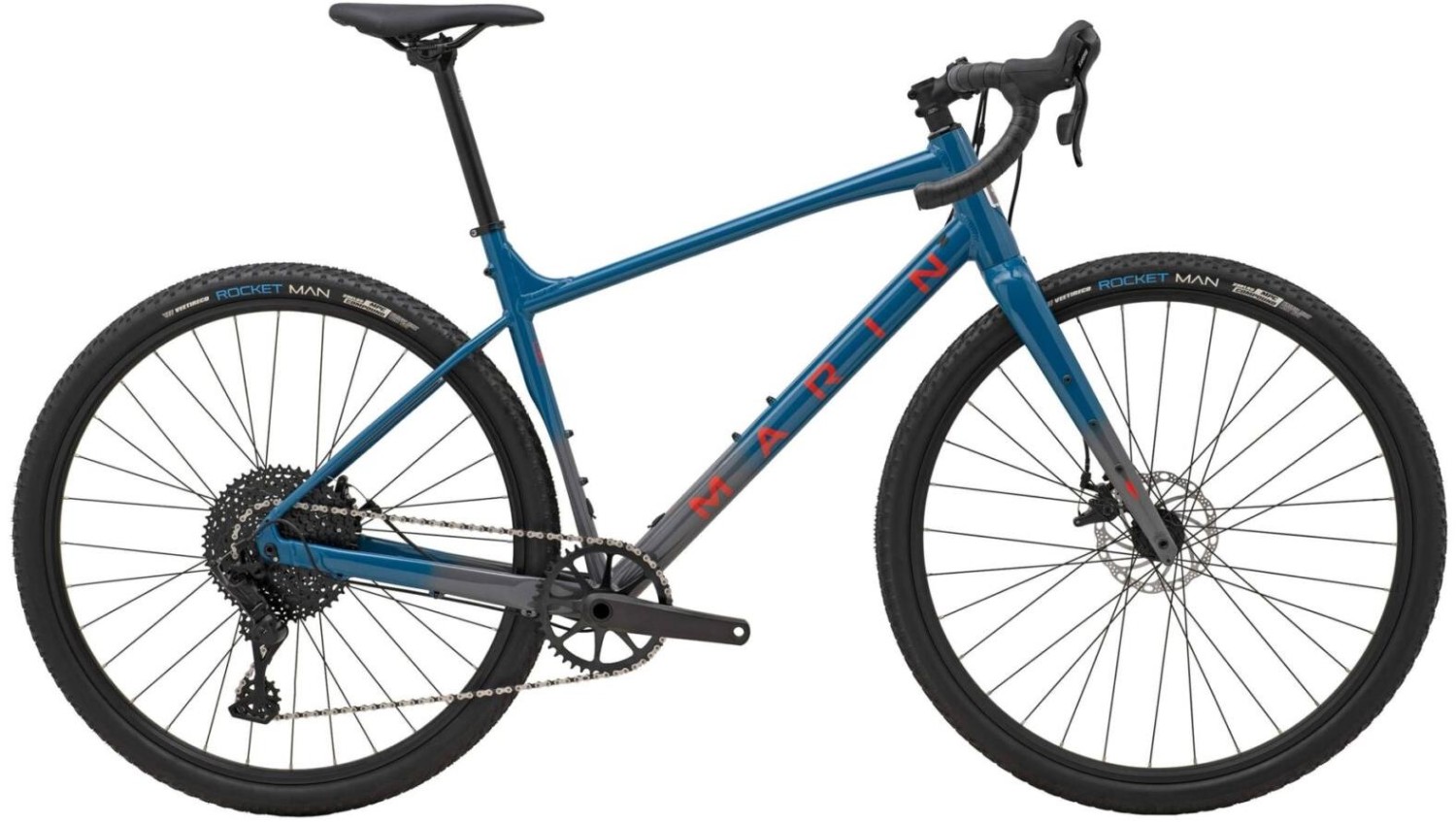

Marin Gestalt X10 2024 - Gravel Bike
The Marin Gestalt X10 is your do it all gravel bike. Designed from Series 3 aluminum, its lightweight frame features internal cable routing, mudguard, and rack mounts, ensuring adaptability for various terrains. The full carbon fork, equipped with flat-mount disc brakes and fender eyelets, enhances control and stability, making it an excellent companion for gravel adventures.
Key Features:
- Series 3 aluminum frame with mudguard & rack mounts for every adventure
- Marin full carbon fork offers precise handling
- Microshift Advent X 10-speed drivetrain for reliable gear changes
- Tektro MD-C500 dual-piston road mechanical disc brakes offer consistent braking
- G-One Overland 700x45mm tyres for strong grip in various conditions
- Available with 0% APR finance
The Gestalt X10 is designed for explorers at heart. Its Series 3 aluminum frame ensures robustness while the full carbon fork guarantees responsive handling. The 1x10 Microshift Advent X drivetrain, with a wide-ranging 11-51t cassette, provides seamless shifting on varied terrains, empowering you to conquer steep climbs and fast descents.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA No 42ACB, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Bars | Marin Butted Alloy, Compact 16º Flared Drop |
| Front Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Rear Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Brake Lever | microSHIFT Advent X |
| Rear Mech | MicroSHIFT Advent X 10-Speed Wide-Range |
| Shifters | MicroSHIFT Advent X 10-Speed |
| Speed | 10 |
| Rims | Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific |
| Front Hub | Forged Aluminum Alloy, Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Schwalbe G-One Overland, 700Cx45mm |
| Rear Tyre | Schwalbe G-One Overland, 700Cx45mm |
| Seat Post | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Chainset | Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X10 |
| Cassette | SunRace 10-Speed, 11-51T |
| Pedals | Resin Platform |
Marin Gestalt 2024 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
160 - 168 | 5'3" - 5'6" |
|
M |
168 - 178 | 5'6" - 5'10" |
| L | 178 - 188 | 5'10" - 6'2" |
| XL | 188 - 193 | 6'2" - 6'4" |
Marin Gestalt 2024 Geometry Chart
| S | M | L | XL | |
| STACK | 547.6 | 566 | 579.1 | 621.5 |
| REACH | 400 | 420 | 440 | 460 |
| HEADTUBE ANGLE | 67.5° | 67.5° | 67.5° | 67.5° |
| HEADTUBE LENGTH | 130 | 150 | 175 | 210 |
| SEATTUBE ANGLE | 75° | 74° | 74° | 74° |
| SEATTUBE LENGTH | 460 | 485 | 505 | 530 |
| TOPTUBE EFFECTIVE | 546.7 | 582.5 | 608.9 | 638.2 |
| BB HEIGHT | 282.5 | 282.5 | 282.5 | 282.5 |
| BB DROP | 80 | 80 | 80 | 80 |
| CHAINSTAY | 425 | 425 | 425 | 425 |
| WHEELBASE | 1065.2 | 1092.8 | 1122.4 | 1155.6 |
| STANDOVER HEIGHT | 678.6 | 687.7 | 708.6 | 734.5 |
| FORK OFFSET | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 440 | 460 | 480 | 480 |
| STEM LENGTH | 50 | 50 | 50 | 50 |
| CRANK LENGTH | 170 | 170 | 175 | 175 |
All lengths in millimeters
