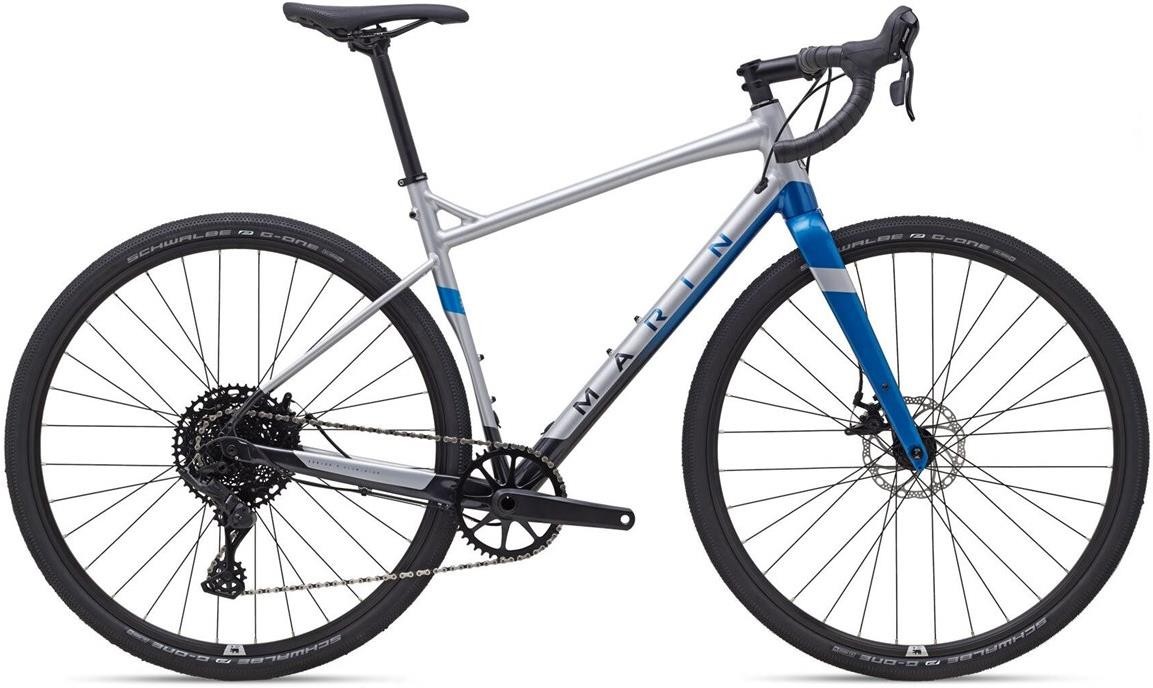

Marin Gestalt X10 - Nearly New - 58cm 2022 - Gravel Bike
ADVENTURE ON AND OFF-ROAD RIDING
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Bars | Marin Butted Alloy, Compact 16º Flared Drop |
| Front Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Rear Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Brake Lever | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Rear Mech | MicroSHIFT Advent X 10-Speed Wide-Range |
| Shifters | MicroSHIFT Advent X 10-Speed |
| Speed | 10 |
| Rims | Marin Aluminum Double Wall, 19mm Inner, 24mm Tall. |
| Front Hub | Forged Aluminum Alloy, 100x12mm, 6-Bolt Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | WTB, Riddler Comp, 700Cx37, Wire Bead |
| Rear Tyre | WTB, Riddler Comp, 700Cx37, Wire Bead |
| Seat Post | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Chainset | Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X10 |
| Cassette | SunRace 10-Speed, 11-51T |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
