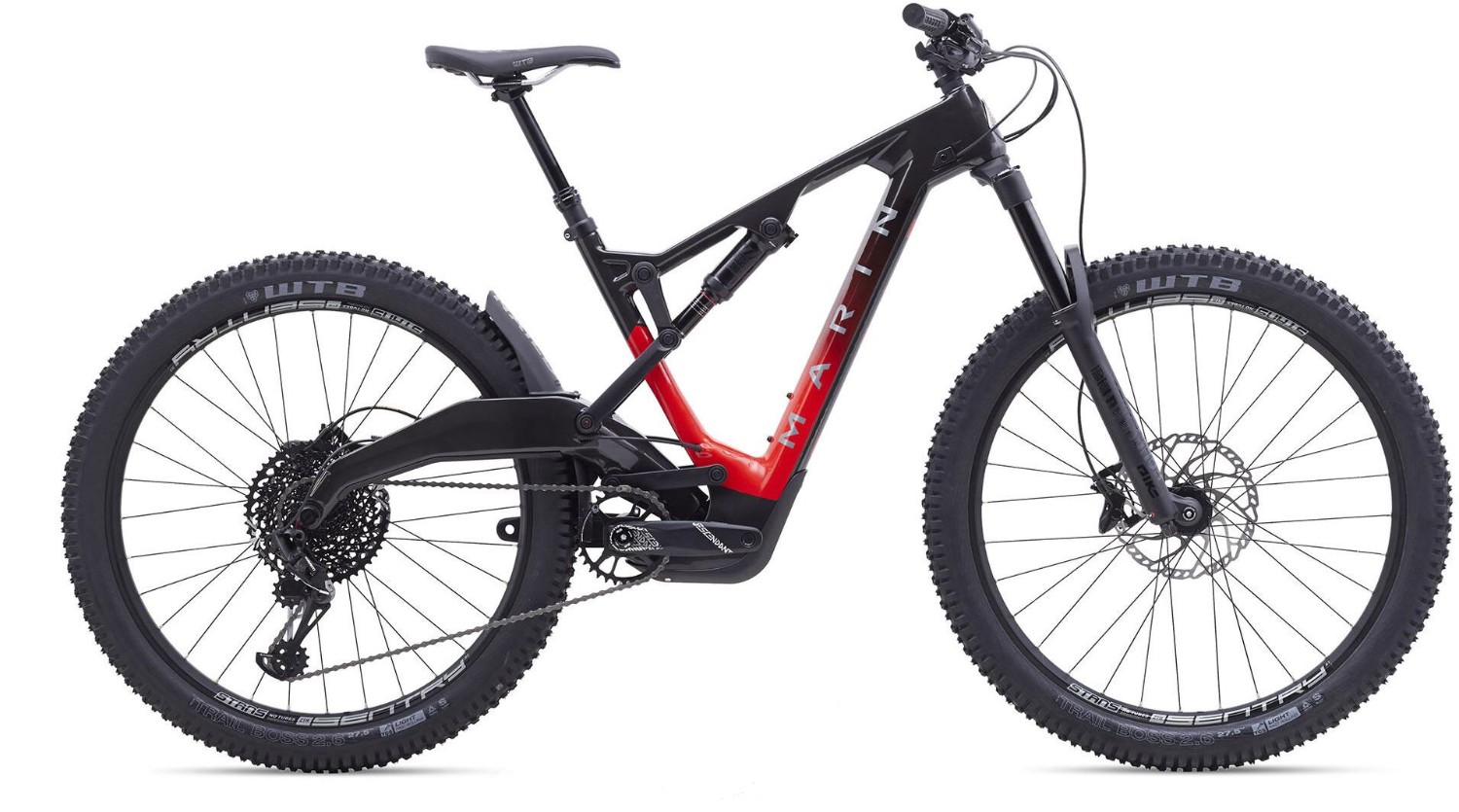

Marin Mount Vision 8 27.5" Mountain Bike 2020 - Trail Full Suspension MTB

Marin Mount Vision 8 27.5" Mountain Bike 2020 - Trail Full Suspension MTB

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Full Suspension MTB

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

All Mountain Trail

Bliss Trail Popping, Playful Fun

Up, Down, And Everything In Between

The all-new Mount Vision from Marin embodies the true spirit of mountain bikes, designed to make the climbs effortless and the descents mind-blowing. The Mount Vision is equipped with 150mm of travel front and rear, a perfect balance of suspension and playfulness. The rear suspension features the Naild R3ACT – 2 Play system, which brings riders the best in rear suspension with size specific kinematics and ground tracing performance. The Mount Vision is the new benchmark for 27.5” trail bikes.

Key Features:

  • Full carbon fibre frame with 150mm of travel
  • RockShox Pike RC forks with 150mm of travel
  • RockShox Deluxe R rear shock
  • SRAM GX/NX 1x12 Eagle gearing
  • Powerful Shimano 4 pot brakes
  • Sizes: S, M, L, XL
  • Colour: Black Red
  • The Marin Mount Vision 8 is available with 0% APR finance
  • Marin Mount Vision Review

Highlights:

  • Naild R3act – 2 Play Suspension

    The revolutionary Naild R3ACT — 2 Play Suspension gives the Marin Mount Vision a true performance advantage over traditional systems. By isolating the rider’s mass from acceleration forces, a new benchmark in pedalling efficiency and bump absorption is achieved. What this means for the rider is no lockouts, no loss of power transfer, and the best traction you have ever had.

  • Ground Tracing

    At the heart of the Naild R3ACT – 2 Play system, Ground Tracing kinematics allows the rear wheel to follow the contours of the trail, providing the rider improved wheel contact and loading with the ground as the bike moves over bumps. Increasing the time that the wheel is on the ground not only guarantees maximum control over terrain, it also increases efficiency by allowing the bike to recover energy off the backside of bumps.

  • Size-specific Kinematics

    The Mount Vision was designed using anthropometric data to define rider position and centre of gravity. From this data, Marin worked with Naild to develop two separate kinematics, one for sizes small and medium and one for sizes large and extra-large.

  • Carbon Fibre Frame

    The unidirectional carbon fibre frame utilizes the latest in high modulus carbon fibre technology, materials, and layup for the lightest and strongest frame possible.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 27.5" Wheels, 150mm Travel, 148mm Boost Rear Spacing, Bolt On Thru-Axle
Fork:RockShox Pike RC 27.5”, 150mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 46mm Offset
Rear Shock:RockShox Deluxe R, 210x60mm, Rebound Adjustment, Custom Tune, Trunnion Mount
Headset:FSA Orbit, No. 42/47/ACB/S-4, Sealed Cartridge Bearings, 1 1/8"x 1 1/2”
Stem:Marin 3D Forged Alloy, 35mm
Bars:Marin Mini-Riser, 6061 Double Butted Aluminum, 25mm Rise, 780mm Width, 5o Up, 9o Back
Front Brake:Shimano XT MT520 4-Piston Hydraulic Disc, 203mm Rotor
Rear Brake:Shimano XT MT520 4-Piston Hydraulic Disc, 180mm Rotor
Brake Lever:Shimano MT500
Rear Mech:SRAM GX Eagle 12-Speed
Shifters:SRAM NX Eagle 12 Speed
Speed:12
Rims:Stan's No Tubes Sentry S1, 32mm Inner, Pinned Joint, BST Technology, Tubeless Compatible
Front Hub:Forged Alloy, 110x15mm, 6-Bolt Disc, 32H
Rear Hub:Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H
Spokes:14g Black Stainless Steel
Front Tyre:WTB Trail Boss 27.5x2.6", Tri-Tech Triple Compound, Fast Rolling, Light Casing with Slash Guard, TCS Aramid Bead, Tubeless Compatible
Rear Tyre:WTB Trail Boss 27.5x2.6", Tri-Tech Triple Compound, Fast Rolling, Light Casing with Slash Guard, TCS Aramid Bead, Tubeless Compatible
Seat Post:KS LEV Integra Dropper Post, Southpaw Lever, Size S 120mm Travel, All Other Sizes: 150mm Travel
Saddle:WTB Volt Race
Chainset:SRAM Descendant 6K Aluminum, Direct Mount 12-Speed 32T, Boost Spacing
Bottom Bracket:SRAM GXP BB92
Chain:SRAM NX Eagle 12-Speed
Cassette:SRAM XG-1275 12-Speed, 10-50T
Pedals:Basic Resin Flat
