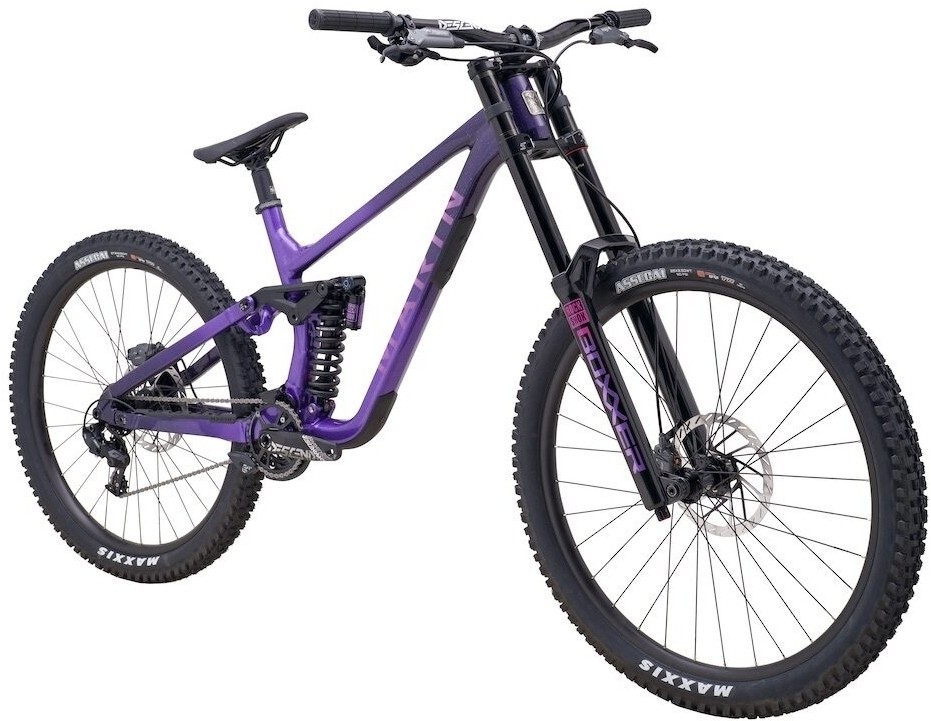

Marin Quake 29 Mountain Bike 2025 - Downhill Full Suspension MTB
The Marin Quake 29 is a big-hitting, no-compromise downhill bike engineered for high-speed control on steep and technical terrain. Developed with input from elite riders like Matt Jones and Vinnie Moonen, and tested at iconic freeride events like Red Bull Hardline and Darkfest, it’s built to handle the world’s toughest trails.
Key Features:
- Series 4 aluminium frame with 180mm MultiTrac 2 LT suspension and adjustable geometry
- RockShox Boxxer fork with 200mm of travel and 52mm offset
- RockShox Vivid Coil Ultimate DH rear shock with 180mm travel
- SRAM GX DH 7-speed drivetrain with Descendant crankset
- SRAM Maven Bronze 4-piston brakes with 200mm HS2 rotors
- 29" Marin alloy wheels with Maxxis Assegai DH-casing tyre
- Flip chip adjustable geometry and 27.5”/29” rear wheel compatibility
- Available with 0% APR finance
At its core is a completely re-engineered Series 4 alloy frame featuring the latest MultiTrac 2 LT suspension platform, offering 180mm of rear travel. By moving pivot points from the seatstay to the chainstay, Marin has enhanced chassis control under braking, improved mid-stroke support, and increased sensitivity at the bottom of the stroke. The design also allows for flip chip geometry adjustment, letting you choose between low BB/long chainstays or high BB/short chainstays ideal for tailoring your ride to the terrain or switching to a 29" or 27.5" rear wheel.
Up front, the legendary RockShox Boxxer delivers 200mm of supple, race-proven travel, while the RockShox Vivid Coil Ultimate DH shock handles the hits with precision tuning, hydraulic bottom-out control, and independent compression damping.
The SRAM GX DH 7-speed drivetrain is geared specifically for gravity use, with tight, purposeful shifts and a durable build. Paired with a Descendant 34T crankset, it’s ready for everything from freeride features to high-speed rock gardens.
Braking is handled by SRAM Maven Bronze 4-piston callipers with massive 200mm HS2 rotors, giving you all the stopping power and modulation needed for the steepest tracks. The 29" Marin double-wall rims are wrapped in Maxxis Assegai 2.5" DH-casing tyres, tubeless-ready and grippy enough for hard-charging downhill sessions.
Thoughtful frame protection features include rubberised guards on the chainstay and seatstays, a down tube bash plate, a shuttle pad for tailgate transport, and sealed internal cable ports for a clean and quiet ride.
From freeride lines to World Cup-level descents, the Marin Quake 29 is built to perform under pressure. It’s a precision-tuned, heavy-hitting platform designed for serious gravity riders who want confidence at every corner, jump and landing.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH |
| Fork | RockShox Boxxer, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset |
| Rear Shock | RockShox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune |
| Headset | FSA No 74 |
| Stem | SRAM Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length |
| Bars | SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep |
| Front Brake | SRAM Maven Bronze, 200mm HS2 Rotor |
| Rear Brake | SRAM Maven Bronze, 200mm HS2 Rotor |
| Brake Lever | SRAM Maven Bronze |
| Front Mech | e*thirteen Vario DH Chainguide |
| Rear Mech | SRAM GX DH |
| Shifters | SRAM GX DH, 7-Speed |
| Speed | 7 |
| Rims | Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Front Hub | Marin Forged, 110x20mm, 6-Bolt Disc, 32H |
| Rear Hub | Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing |
| Rear Tyre | Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing |
| Seat Post | Marin Alloy, 34.9mm |
| Saddle | Marin Short Nose |
| Chainset | SRAM Descendant Alloy 34T, 165mm |
| Bottom Bracket | SRAM DUB BSA |
| Chain | Sram PC-1110 |
| Cassette | SRAM GS DH, 11-25T |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
