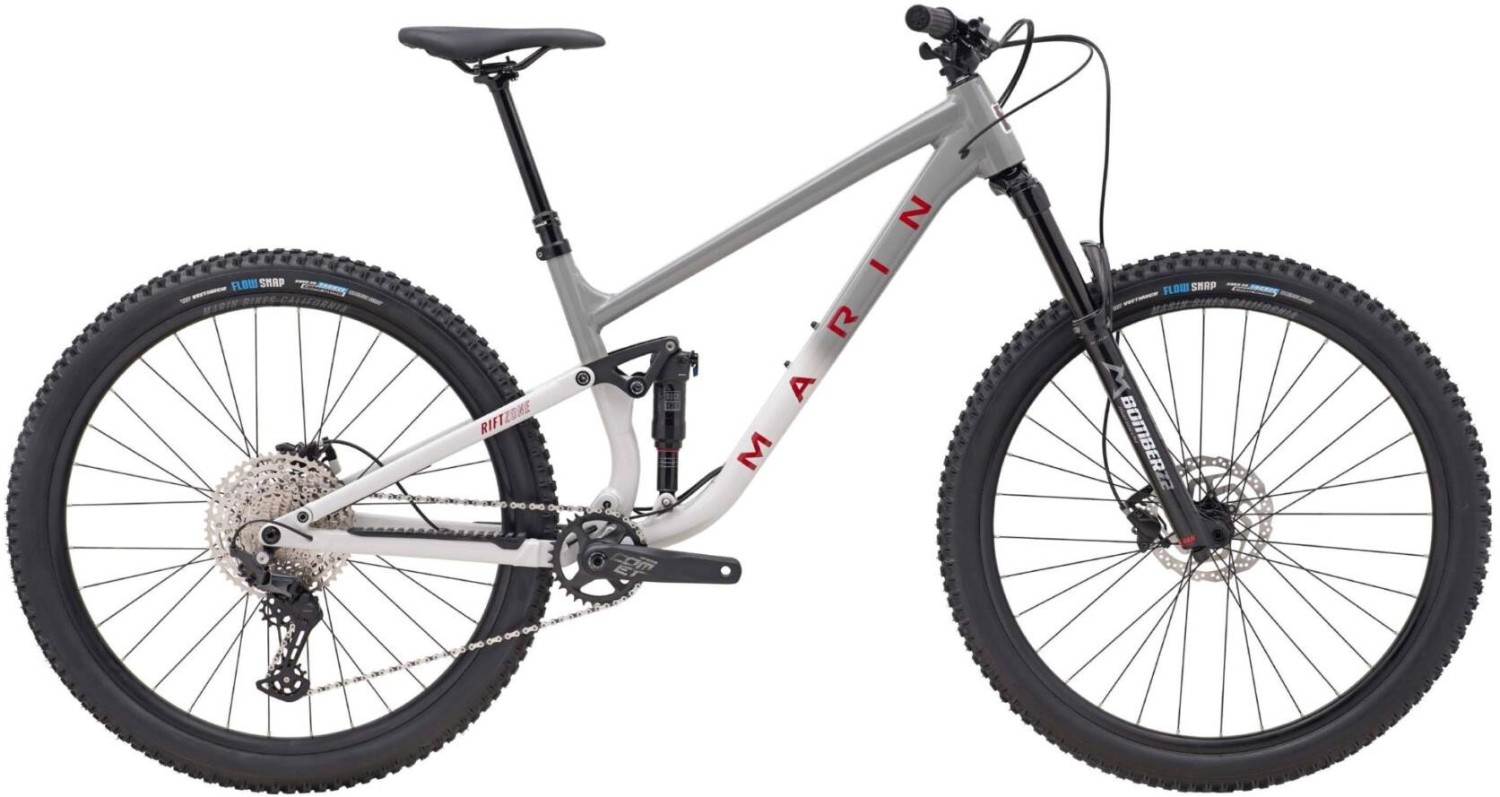

Marin Rift Zone 2 29 Mountain Bike 2024 - XC Full Suspension MTB
- Frame: Series 3 6061 aluminum, 29” wheels, 130mm travel, MultiTrac suspension, boost thru-axle
- Rear Shock: RockShox Deluxe Select RT, rebound adjustment, 210x50mm
- Drivetrain: Shimano Deore, 12-speed, FSA Comet 1x chainset
- Brakes: Shimano BR-MT200 hydraulic disc, 180mm rotor
- Wheels: Marin double-wall alloy, 29mm inner width, tubeless compatible
- Tires: Vee Tire Flow Snap 29x2.35", Tackee compound, tubeless-ready
- Standout Feature: Innovative MultiTrac suspension platform
- Finance Option: Available with 0% APR finance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Rear Shock | RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Front Brake | Shimano BR-MT200 Hydraulic Disc, 180mm Rotor |
| Rear Brake | Shimano BR-MT200 Hydraulic Disc, 180mm Rotor |
| Brake Lever | Shimano BL-MT201 |
| Rear Mech | Shimano Deore, 12-Speed, SGS |
| Shifters | Shimano Deore, 12-Speed, SL-M6100-R |
| Speed | 12 |
| Rims | Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible |
| Front Hub | Shimano HF-MT410B, 110x15mm, Centerlock |
| Rear Hub | Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Vee Tire Flow Snap 29x2.35", Tackee Compound, Tubeless Ready |
| Rear Tyre | Vee Tire Flow Snap 29x2.35", Tackee Compound, Tubeless Ready |
| Seat Post | TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Chainset | FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Chain | KMC X-12 Silver and Black |
| Cassette | Shimano, Deore M6100, 12-Speed, 10-51T |
| Pedals | Resin Platform |
Marin Rift Zone 2024 Size Chart
|
Size |
Height (cm) |
Height (Feet) |
|
S |
160 – 168 |
5’3” – 5’6” |
|
M |
168 - 178 |
5’6” – 5’10” |
|
L |
178 – 188 |
5’10” – 6’2” |
|
XL |
188 - 193 |
6’2” – 6’4” |
What size frame do I need if I am between sizes? - read here
Marin Rift Zone 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Stack mm |
623.6 |
628.2 |
637.3 |
641.8 |
|
Reach mm |
435 |
460 |
485 |
515 |
|
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
|
Head Tube Length mm |
110 |
115 |
125 |
130 |
|
Seat Tube Angle |
77° |
77° |
77° |
77° |
|
Seat Tube Length mm |
390 |
400 |
425 |
430 |
|
Top Tube Effective mm |
579 |
605 |
632.1 |
663.2 |
|
BB Height mm |
343 |
343 |
343 |
343 |
|
BB Drop mm |
35 |
35 |
35 |
35 |
|
Chain Stay mm |
430 |
430 |
430 |
430 |
|
Wheel Base mm |
1170 |
1205.1 |
1234.4 |
1266.3 |
|
Stand Over Height mm |
690.2 |
691.2 |
701.7 |
700.5 |
|
Fork Offset mm |
44 |
44 |
44 |
44 |
|
Seat Post Diameter mm |
30.9 |
30.9 |
30.9 |
30.9 |
|
Handlebar Width mm |
780 |
780 |
780 |
780 |
|
Stem Length mm |
35 |
35 |
35 |
35 |
|
Crank Length mm |
170 |
170 |
170 |
170 |
