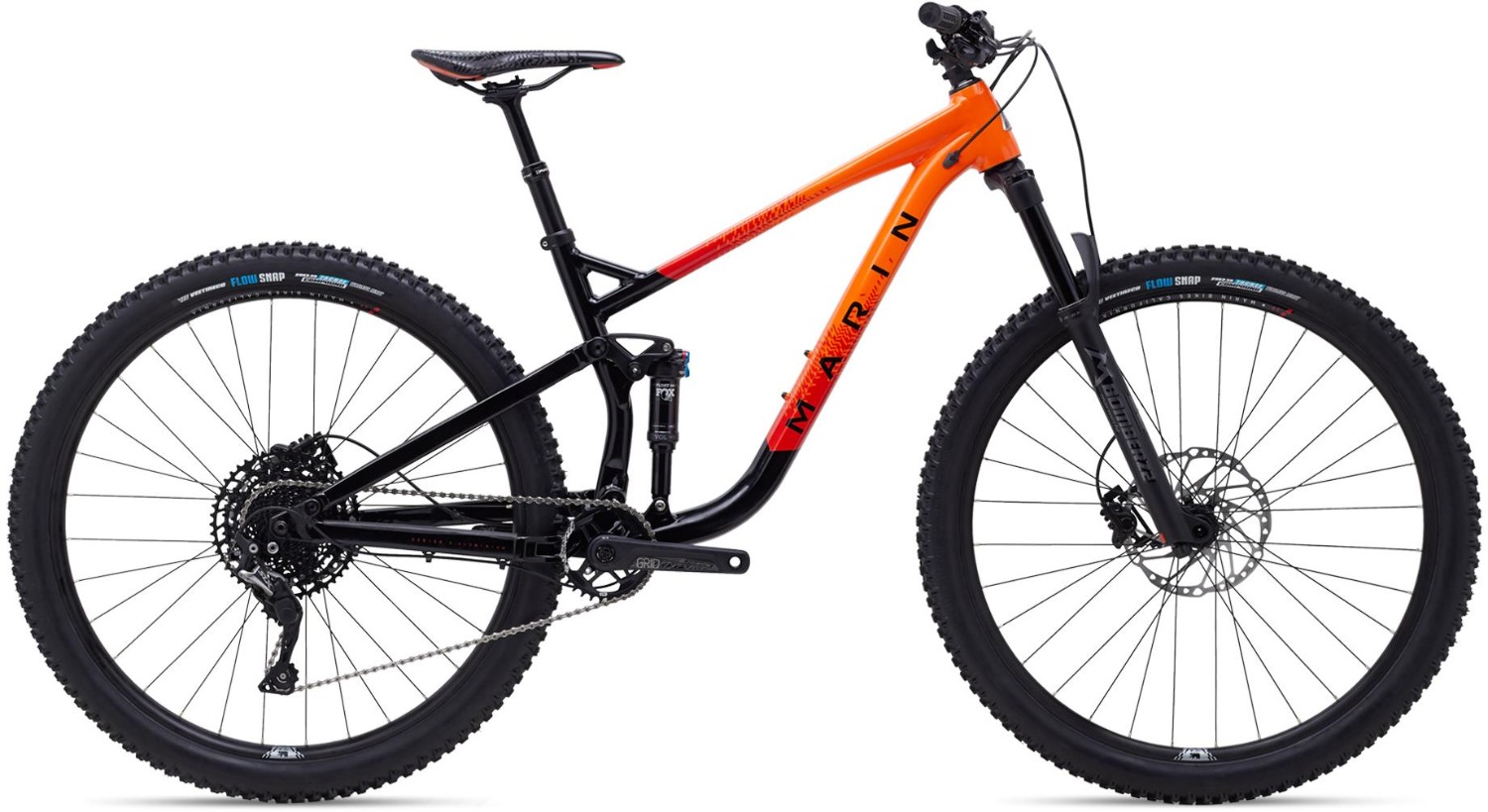

Marin Rift Zone 3 29" Mountain Bike 2020 - Trail Full Suspension MTB

£2,395.00
Price Match
or £66.46 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Select your size for Christmas Delivery availability
Add to Basket

Cycle to Work

Product Description

The Marin Rift Zone is a short travel trail speed freak, delivering instant power to the ground while not sacrificing the suspension. 29” wheels roll over the rocks, and your trophy case will picking up KOMs and PRs

Key Features:

  • Aluminium alloy frame with 125mm travel MultiTrac suspension
  • Marzocchi Bomber Z2 fork for 130mm of plush suspension control
  • Shimano SLX 1x12 speed drivetrain for a huge gear range and easy shifting
  • Dropper post with remote for more control on the descents
  • Sizes: Small, Medium, Large, X Large
  • Colours: Orange/Black
  • The Marin Rift Zone 3 is available with 0% APR finance

Marin Rift Zone Review



INTENDED USE FAST PACED, EPIC RIDES

PUSHING THE ENVELOPE UP AND DOWN THE TRAIL CHASING PERSONAL RECORDS

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

MODERN GEO FOR THE MODERN TRAIL SLAYER

Using the most from modern features, Rift Zone models utilize short fork offsets and slack head tube angles to ensure that the bike handles perfectly from a seated or standing position, and travels effortlessly up and down the mountain.

SERIES 3 ALUMINUM FRAME

Rift Zone 1, 2, and 3 models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.

MULTITRAC SUSPENSION TECHNOLOGY

MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on baskets over £99
  • UK price match
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)



Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Fork:Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt On Axle, 44mm Offset
Rear Shock:Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, 25mm x M8 Hardware Top and Bottom
Headset:FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Stem:Marin 3D Forged Alloy, 35mm
Bars:Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm rise, 5º Up, 9º Back
Front Brake:Shimano MT420, 4 Piston Hydraulic Disc Brake, 203mm Rotor
Rear Brake:Shimano MT420, 4 Piston Hydraulic Disc Brake, 180mm Rotor
Brake Lever:Shimano MT401 Hydraulic Lever
Rear Mech:Shimano SLX SGS, Direct Attachment, 12-Speed
Shifters:Shimano SLX, 12 Speed, SL-7100R
Speed:12
Rims:Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Front Hub:Forged Alloy, 110x15mm, Centerlock Disc, 32H
Rear Hub:Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Freehub Body
Spokes:14g Black Stainless Steel
Front Tyre:Vee Tire Co, Flow Snap, 27.5x2.35, Tackee Compound, 72 TPI, Tubeless Compatible
Rear Tyre:Vee Tire Co, Flow Snap, 27.5x2.35, Tackee Compound, 72 TPI, Tubeless Compatible
Seat Post:X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M & L 150mm Travel, Size XL 175mm Travel, 30.9mm
Saddle:Marin Speed Concept
Chainset:FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Bottom Bracket:Mego EXO 73mm BSA
Chain:KMC X-12 Silver & Black
Cassette:SunRace, 12 Speed, 11-50T, ED Black
Pedals:Not Included

There are currently no customer reviews

Write your own review

Rift Zone Sizing

Marin Rift Zone Sizing and Geometry





Frame Size

XXS - 13"

4'8"



5'1"

XS - 15"

5'1"



5'4"

S - 16"

5'4"



5'7"

M - 18"

5'7"



5'10"

L - 19"

5'10"



6'0"

XL - 20"

6'0"



6'3"

XXL - 21"

6'3"



6'5"

XXXL - 22"

6'5"



6'9"

Read our bike size guide for more information on sizing.



Marin Rift Zone Geometry (mm)



S

M

L

XL

Stack

602.6

607.15

611.7

616.25

Reach

430

455

480

515

Headtube angle

65.5°

65.5°

65.5°

65.5°

Headtube length

100

105

110

115

Seat tube angle (effective)

76°

76°

76°

76°

Seat tube length

390

400

425

430

Top tube (effective)

580.24

606.36

632.51

668.65

BB height

344

344

344

344

BB drop

34

34

34

34

Chainstay

425

425

425

425

Wheelbase

1158.92

1186

1213

1252

Standover

677.41

683.97

694.16

697.39

Fork offset

44

44

44

44

Seatpost diameter

30.9

30.9

30.9

30.9

Handlebar width

780

780

780

780

Stem length

35

35

35

35

Crank length

170

175

175

175

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Full Sus MTB Guide



Is a full-suspension mountain bike right for me?

If you’re new to the world of cycling, we highly recommend taking a look at our bike buying guide overview or our mountain bike buying guide to help you decide what type of bike is right for your needs.

When you’re choosing a full suspension mountain bike, there are a few things to look out for which can help you to work out the quality and performance you can expect from a particular model.


Suspension travel & usage

Depending on the type of mountain bike riding you’ll be doing, you may want to have longer or shorter suspension travel on your bike:

Travel

Usage

Pros

Cons

Up to 120mm

XC

Lightweight & efficient pedalling for long-distance rides

Short travel is less capable on rough & demanding trails with large jumps & drops

120 – 150mm

Trail

Lightweight, balance of climb-friendly efficiency & rough-descent capability

More weight than a shorter travel bike & less efficient climbing. Less capable on descents than a longer travel bike

150-180mm

Enduro

Capable of covering difficult & technical downhill sections. Wide enough gear range for climbing

Heavier & significantly less efficient at climbing compared to shorter travel bikes

180mm +

Downhill

Designed for highly technical & high-speed descents, with big drops and large jumps

Heavy, and inefficient at climbing. Limited gear range means most climbs will require pushing the bike


Frame material

Full-suspension MTB frames are mostly made from either aluminium or carbon fibre, with each material having its own benefits & drawbacks.

Aluminium

Aluminium is lightweight, stiff, strong, and easy to manufacture. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of bikes, from entry-level & enthusiast bikes, right the way up to top-spec racing bikes.

Carbon

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The most affordable carbon bikes typically use medium strength carbon fibres, while the most expensive bikes use stronger ‘high modulus’ carbon. Carbon fibre frames are found on enthusiast-level bikes, right up to high-performance bikes designed for racing.


Groupset & drivetrain

A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen.
A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifters
  • Front & rear derailleur
  • Chain
  • Cassette
MTB Groupsets

Mountain bike groupset components are typically supplied by either Shimano or SRAM, with additional manufacturers like Formula, Hope, Magura, Tektro and TRP supplying brake systems. Shimano & SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano & SRAM groupsets to determine which bikes offer the best performance.


Wheel size

You’ve probably noticed that a lot of mountain bikes come in a choice of wheel size, mainly a 27.5 inch wheel (also known as a 650B wheel) or a 29inch wheel (known as a 29er). Although there are still bikes which use 26 inch wheels, these are gradually being phased out on all but the smallest bikes. The difference between these wheel sizes can have a dramatic effect on the way a bike feels and handles out on the trail.

27.5in/650b Wheels

27.5inch wheels are smaller and lighter than 29er wheels, which makes them more agile and gives the bike a more responsive & playful nature. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground and making it a little slower when climbing.

29er Wheels

29er wheels have a bigger rolling radius which makes them naturally smoother over rough ground. For this reason, a 29er mountain bike often requires less suspension travel than smaller wheeled alternatives. The downsides are an increase in weight, and the larger diameter wheels generate stronger gyroscopic forces, making the bike more stable, but less agile and responsive whilst manoeuvring.

26in Wheels

26 inch wheels were once the go-to wheel size on adult mountain bikes. However, they are now typically only found on the smallest frame sizes, and on junior bikes. 26 inch wheels are lightweight and give the bike very agile handling. The downsides to 26 inch wheels are their poor rolling resistance on rough ground, and the reduced contact patch due to the smaller wheel circumference.


Suspension components

Mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry level full suspension mountain bikes (up to approximately £1300) may come supplied with a fork & rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment
  • Lockout switch
  • Rebound damping adjustment on models towards the top of the price range.

Mid-range & enthusiast bikes (up to approximately £3500) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Components towards the top end of the enthusiast price range may also feature compression damping adjustment as well.

Top of the range & competition spec bikes (over £3500) also use components from Fox, RockShox & Manitou, with a few select models using parts from Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High & low speed rebound damping adjustment
  • High & low speed compression damping adjustment
  • Lockout switch
  • Multi-position 'mode' switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
