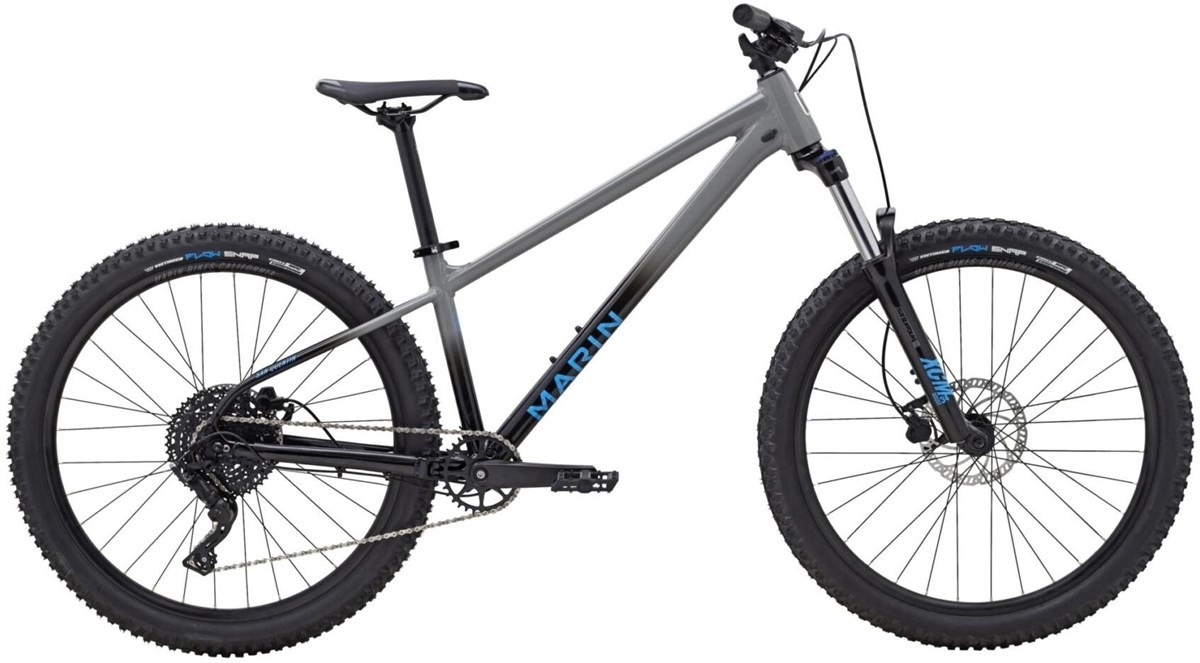

Marin San Quentin 1 27.5" - Nearly New – L 2024 - Hardtail MTB Bike
- Frame: Series 2 6061 aluminum with internal cable routing and 141mm open dropout
- Front Suspension: SR Suntour XCM34 Boost fork with 130mm travel and coil spring
- Drivetrain: Microshift 1x9-speed setup with a clutch rear derailleur for chain retention
- Brakes: Tektro M275 hydraulic disc brakes with 180mm rotors for reliable stopping power
- Wheels: Marin aluminum double-wall rims with Vee Tire Co Flow Snap 27.5x2.6" tires for traction and control
- Integrated steel 32t narrow-wide chainring for chain security on rough terrain
- Available with 0% APR finance.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | All New Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB |
Fork | SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Stem | Marin 3D Forged Alloy, 45mm |
Bars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
Front Brake | Tektro M275 Hydraulic Disc Brake, 180mm Rotor |
Rear Brake | Tektro M275 Hydraulic Disc Brake, 180mm Rotor |
Brake Lever | Tektro M275 Hydraulic Disc |
Rear Mech | MicroShift RD-M9195M, 9 Speed, With Clutch |
Shifters | MicroShift SL-M9195-R, 1x9 with Bearings |
Speed | 9 |
Rims | Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible |
Front Hub | Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H |
Rear Hub | Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body |
Front Tyre | Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead |
Rear Tyre | Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead |
Seat Post | Marin Alloy, 30.9mm |
Saddle | Marin Speed Concept |
Chainset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
Bottom Bracket | Sealed Cartridge Bearing, Square Taper |
Chain | KMC X-9 |
Cassette | Sunrace, 9 Speed, 11-46T |
Pedals | Nylon Platform |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Marin San Quentin 1 27.5" - Nearly New – L 2024 - Hardtail MTB Bike.
This product is no longer available.
