Mavic Crossride UST Quest WTS MTB Wheels - 27.5" - 2017

An extra 10% off this item today. Use code: CLEAR10
Now £99.99
Save 32% RRP: £146.25
Price Match Promise
or £16.67 / month
Finance Options
Be the first to write a review
Size
Colour
Add to Basket

Product Description

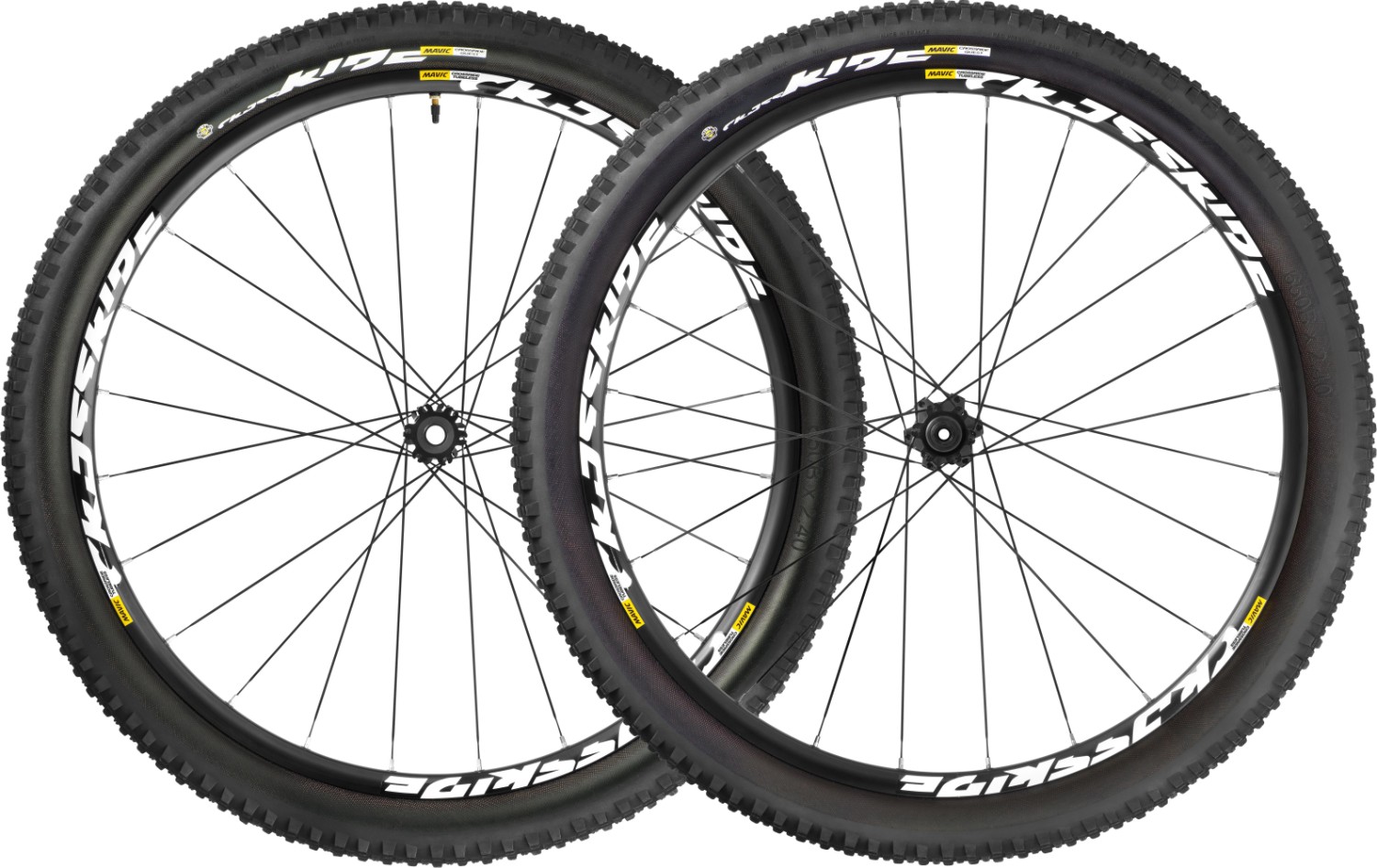

Mavic Crossride UST Quest WTS MTB Wheels - 27.5" – 85694

The Mavic Crossride UST Pulse WTS MTB Wheels come as an easy package. Your get fantastic wheels, tyres and a tubeless kit in one go. Convenience and excellent performance in one easy package.

This wheelset has sleeved 27.5” rims, made from S6000 aluminium alloy, which adds strength, giving a secure connection to the ground. The 21mm internal width helps with getting the most out of your tyres, giving support for tyres sidewalls, while also allowing for smaller tyres to be used for training purposes. They are tubeless UST rims, making an excellent seal without the need of a tube.

The hubs feature Mavic’s TS-2 alloy freehubs matched to sealed cartridge bearings, making maintenance easy. The bodies are alloy for weight savings as are the axles. The rear wheels come supplied with 12x142mm adaptors, while the front can be converted to quick release with adaptors available separately. These wheels are also available in Boost spacing (front: 15x110mm/rear: 12x148mm) and can be converted to SRAM’s XD Driver, available separately.

Matching up to the hubs are straight pull steel spokes. These add rigidity and strength. The weak point of normal J-bend spokes is removed with the use of straight-pull spokes, allowing for less spokes to be used and keeping the wheels lightweight. There are 24 spokes front and rear with a 2 cross pattern for both wheels. The spokes are bladed for even more rigidity and double butted, giving an even lighter weight.

Mavic’s Crossride Tubeless Quest tyres are balance speed and traction. The 66TPI casing is robust, but not hefty and features well spaced knobs for predictable handling and excellent grip, while keeping rolling resistance to a minimum.

Key Features:

  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
  • Recommended tyre sizes: 35 mm to 69 mm (1.4" to 2.7")
  • Weight Front 27.5"875g
  • Weight Pair 27.5"1870g
  • Weight Rear 27.5"995g
  • Weight Tyre 27.5” x 2.4780g
  • Mavic Crossride UST Quest WTS MTB Wheels are available with 0% APR finance

Rims

  • Material: S6000 Aluminium
  • Joint: sleeved
  • Drilling: traditional with H2 reinforcement
  • Valve hole diameter: 8,5 mm with pop off reducer
  • Tyre: UST Tubeless and tubetype
  • Internal width: 21 mm
  • ETRTO size 27.5": 584x21C

Spokes

  • Material: steel
  • Shape: straight pull, bladed, double butted
  • Nipples: steel, ABS
  • Count: 24 front and rear
  • Lacing: front and rear crossed 2

Hubs

  • Front and rear bodies: aluminium
  • Axle material: aluminium
  • Sealed cartridge bearings
  • Freewheel: TS-2 alloy

Tyre

  • Crossride Tubeless Quest
  • UST Tubeless Ready
  • Front and Rear Tread: Single Compound
  • Casing: 66 TPI
  • Dimension 27.5": 2.4

Versions

  • Colour: Black only
  • Disc standard : 6 Bolts only
  • Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)

Compatibility

  • Freewheel: Shimano/Sram, convertible to XD with optional driver body
  • Front axle: convertible from 15mm thru axle to Quick Release with optional adapters
  • Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters (not available in Germany)

Delivered with

  • UST valve and accessories
  • Tubeless rim tape
  • User guide

There are currently no customer reviews

Write your own review

MTB Wheels Guide

How do I choose an MTB wheel?

There are many different sizes of MTB wheels and it is important to get the right one to fit your bike. There are five things that you need to consider when choosing a new wheel; wheel diameter, axle type, hub spacing, rim width and freehub type (rear wheel only).

What are the different wheel diameters (sizes)?

MTB wheels are available in 4 different diameters:

  • 29” - cross country (XC) and trail bikes
  • 650b (27.5”) – Most common size, XC, trail and downhill bikes
  • 26” – the traditional wheel size, but is now less common
  • 24” – only found on certain jump and junior bikes

What are the different axle types?

There are different axle types for front and rear wheels:

  • QR (9mm) – quick release skewer – for front and rear wheels
  • 10mm – thru axle - for rear wheels
  • 12mm – thru axle – for rear wheels
  • 15mm – thru axle – for front wheels
  • 20mm – thru axle – for front wheels

What about hub spacing?

As with axle types there are specific hub spacing’s for front and rear wheels:

  • 100mm - front, traditional size
  • 110mm – front, Boost standard
  • 135mm – rear, traditional size
  • 142mm – rear, most common
  • 148mm – rear, Boost standard
  • 150mm – rear, Downhill bikes

Why does rim width matter?

Yes. This is because weight on the rim adversely affects acceleration and climbing more than weight on any other part of the bike. Having said that a wider (and heavier) rim is more robust and will offer more support for the tyre. For this reason, cross country MTBs tend to have narrower rims than trail and downhill bikes. As long as you get the wheel diameter, axle type and hub spacing to match your existing wheel it is usually possible to change the rim width for either a lighter or a sturdier wheel.

What about Plus sizes?

Plus sized 27.5” & 29” wheels use very wide rims (38-50mm) that require Boost standard hub spacing. You can only use these rims on ‘Plus Sized’ bikes.

What are the different freehub options?

The freehub is the part of the rear wheel that the cassette fixes on to. There are 3 main freehub types that fit specific cassettes:

  • Shimano and SRAM– fits Shimano and SRAM 8, 9 & 10 speed cassettes
  • SRAM XD – fits SRAM 11 & 12 speed cassettes
  • Hope – fits hope 11 speed cassettes

If you match the above criteria, then you can be sure that the wheel you buy will be compatible with your mountain bike.

Do I need a disc specific wheel?

If you have disc brakes on your bike then you will need a disc specific wheel. There are two different types of disc rotors that are compatible with different hubs:

  • 6 bolt – most common type
  • Centre lock – used on certain Shimano hubs

Note – disc specific wheels are not compatible with rim brakes.

What about tubeless?

Some wheels are ready to be used with tubeless tyres straight out of the box while others can be converted with a simple conversion kit. This will usually be specified in the product description.

Wheels and Wheelsets

Wheels are either sold individually or in pairs known as wheelsets. Check the product description for more details.

If you are unsure about which wheel you need then please contact us by phone on 01792 799508 or email info@tredz.co.uk and we will be happy to help.
