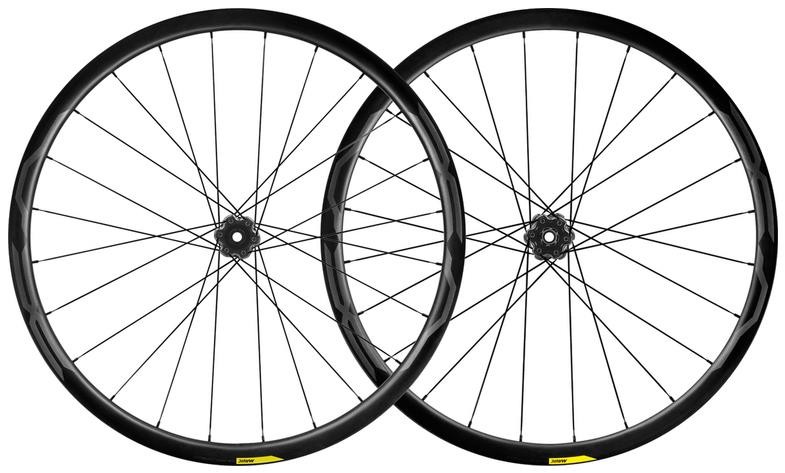

Mavic XA Pro Carbon 27.5" MTB Wheels 2018

From £598.50
Save £66.50 RRP: £665.00
Price Match Promise
or £20.70 / month
Finance Options
Be the first to write a review
Select a size
Add to Basket

Product Description

Crush climbs and rail the roughest descents. This carbon wheel reduces weight while improving ride quality

Laterally stiff with just enough vertical compliance for added control
Full carbon rim provides balanced and fine-tuned lateral stiffness for optimal control Enhanced fiber layup produces fine-tuned vertical compliance for durability The two-cross spoke pattern on the front and rear provides comfort and control

Dynamic and lightweight feel for easier climbing and agility on the trail
Full-carbon rim delivers responsive feel and excellent trail feedback Lightest trail wheel system in its class (1490g in 27.5)

Better traction and control, plus a reduced risk of punctures
26mm internal width (32mm outside) rims are optimized for 2.4” or larger tires Hookless rim profile reduces tire burbs and creates stronger rims

Rims
  • Material: 100% Unidirectional carbon fiber
  • Drilling: traditional
  • Valve hole diameter: 6.5 mm
  • Tyre: UST Tubeless and tubetype
  • Internal width: 26 mm
  • ETRTO size 27.5": 584x26TSS
  • Hookless profile
  • Use with Mavic Tubeless Tape

Spokes
  • Material: steel
  • Shape: straight pull, flat, double butted
  • Count: 24 front and rear
  • Lacing: front and rear crossed 2

Hubs
  • Front and rear bodies: aluminum
  • Axle material: aluminum
  • Adjustable sealed cartridge bearings (QRM+)
  • Freewheel: ITS-4 alloy

Versions
  • Color: Black only
  • Disc standard : 6 Bolts only
  • Hub width : Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)

Compatibility
  • Freewheel: Shimano/Sram or XD

Delivered with
  • UST valve and accessories
  • Tubeless rim tape
  • Multifonction adjustment wrench
  • User guide

Label
  • SSC

Intended use
  • ASTM CATEGORY 3 : CROSS COUNTRY AND TRAIL RIDING
  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
  • Recommended tyre sizes: 60mm to 81mm (2.35" to 3.2")

Filters
  • Category : Trail
  • Diameter: 650b/27.5"
  • e-bike: no
  • Front axle: 15x100
  • Front axle: 15x110 (Boost)
  • Rear axle: 12x135/142
  • Rear axle: 12x148 (Boost)
  • Rim width (internal): 25/26mm
  • Tubeless: yes
  • Weight: 1301g to 1500g

Efficiency & rigidity
  • ITS-4
  • UST Tubeless Ready
  • QRM+

Save energy on the climbs and rail rugged descents with higher speeds and total control. We engineered the XA Pro Carbon to be significantly lighter and laterally stiffer than any aluminum wheel, but also retained the impact resistance and vertical compliance that gives Mavic Wheel-Tire Systems the ride quality they’re known for. The XA Pro Carbon is the lightest wheel system in its category (1490g for 27.5” and 1535g for 29”). So you know it helps you climb and accelerate faster, but where it really shines is in the way it handles rough and challenging terrain. We engineered a wide 26mm hookless rim profile that’s fully UST Tubeless compliant for improved traction, puncture resistance and ease of use. These asymmetric rims are fine-tuned to optimize spoke tension and they use 24 double-butted steel spokes to find the sweet spot between lateral stiffness and vertical compliance. Hubs are 6-Bolt only and compatible with all current axle standards including Standard and Boost.

  • Weight Front 27.5"   715
  • Weight Pair 27.5"   1550
  • Weight Rear 27.5"   835

There are currently no customer reviews

Write your own review

MTB Wheels Guide

How do I choose an MTB wheel?

There are many different sizes of MTB wheels and it is important to get the right one to fit your bike. There are five things that you need to consider when choosing a new wheel; wheel diameter, axle type, hub spacing, rim width and freehub type (rear wheel only).

What are the different wheel diameters (sizes)?

MTB wheels are available in 4 different diameters:

  • 29” - cross country (XC) and trail bikes
  • 650b (27.5”) – Most common size, XC, trail and downhill bikes
  • 26” – the traditional wheel size, but is now less common
  • 24” – only found on certain jump and junior bikes

What are the different axle types?

There are different axle types for front and rear wheels:

  • QR (9mm) – quick release skewer – for front and rear wheels
  • 10mm – thru axle - for rear wheels
  • 12mm – thru axle – for rear wheels
  • 15mm – thru axle – for front wheels
  • 20mm – thru axle – for front wheels

What about hub spacing?

As with axle types there are specific hub spacing’s for front and rear wheels:

  • 100mm - front, traditional size
  • 110mm – front, Boost standard
  • 135mm – rear, traditional size
  • 142mm – rear, most common
  • 148mm – rear, Boost standard
  • 150mm – rear, Downhill bikes

Why does rim width matter?

Yes. This is because weight on the rim adversely affects acceleration and climbing more than weight on any other part of the bike. Having said that a wider (and heavier) rim is more robust and will offer more support for the tyre. For this reason, cross country MTBs tend to have narrower rims than trail and downhill bikes. As long as you get the wheel diameter, axle type and hub spacing to match your existing wheel it is usually possible to change the rim width for either a lighter or a sturdier wheel.

What about Plus sizes?

Plus sized 27.5” & 29” wheels use very wide rims (38-50mm) that require Boost standard hub spacing. You can only use these rims on ‘Plus Sized’ bikes.

What are the different freehub options?

The freehub is the part of the rear wheel that the cassette fixes on to. There are 3 main freehub types that fit specific cassettes:

  • Shimano and SRAM– fits Shimano and SRAM 8, 9 & 10 speed cassettes
  • SRAM XD – fits SRAM 11 & 12 speed cassettes
  • Hope – fits hope 11 speed cassettes

If you match the above criteria, then you can be sure that the wheel you buy will be compatible with your mountain bike.

Do I need a disc specific wheel?

If you have disc brakes on your bike then you will need a disc specific wheel. There are two different types of disc rotors that are compatible with different hubs:

  • 6 bolt – most common type
  • Centre lock – used on certain Shimano hubs

Note – disc specific wheels are not compatible with rim brakes.

What about tubeless?

Some wheels are ready to be used with tubeless tyres straight out of the box while others can be converted with a simple conversion kit. This will usually be specified in the product description.

Wheels and Wheelsets

Wheels are either sold individually or in pairs known as wheelsets. Check the product description for more details.

If you are unsure about which wheel you need then please contact us by phone on 01792 799508 or email info@tredz.co.uk and we will be happy to help.
