Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

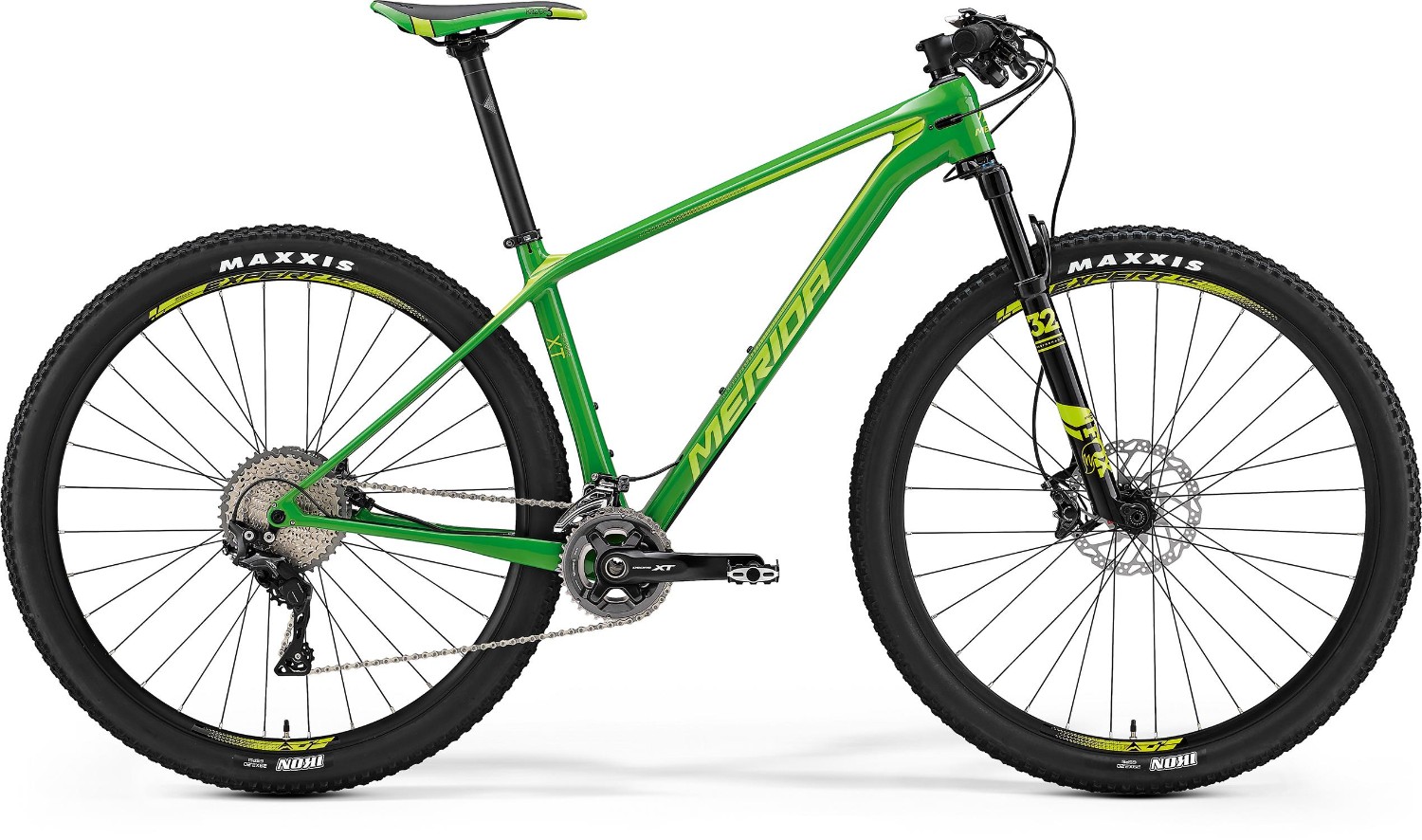

XC race ready. The Merida Big Nine XT is a carbon framed hardtail mountain bike for rapid single track adventures and cross country MTB racing.

The lightweight carbon composite frame offers compliance, for a smooth ride, alongside stiffness for efficient power transfer and confident handling. The modern 29er XC geometry features a longer top tube with shorter stem and slacker head angle. This offers improved confidence on technical terrain, especially on the descents, while still offering capable and efficient climbing performance. 29” wheels offer fast rolling performance over single track and rough terrain.

The Fox 32 Float Performance fork offers 100mm of plush suspension control with adjustable compression and rebound damping so you can adapt the performance to the trail. The Shimano XT 2x11 speed drivetrain offers slick, precise shifting over a very wide range of gears so you can take on challenging terrain. The XT brakes deliver confident stopping control.

Ride cross country trails faster on the Merida Big Nine XT.

Key Features:

  • Lightweight CF3 carbon fibre composite frame with modern XC geometry
  • Fox 32 Float Performance fork offers 100mm of plush suspension travel
  • Lightweight 29” wheels for rapid off-road rolling
  • Shimano XT 2x11 speed drivetrain for slick, precise shifting
  • Shimano XT hydraulic disc brakes for confident all-weather stopping
  • Sizes: 17”, 19”, 21”
  • Colour: Green/Green
  • The Merida Big Nine XT is available with 0% APR finance


Frame: XC focussed carbon frame with aero profiled tubes (approx. 1.35kg frameset - M). Leaf spring profiled chain and seat stays provide comfort. BB92 bottom bracket, Boost axle standard and tapered head tube deliver stiffness and steering precision.
Fork: Fox Float 32 Performance SC air fork with tapered steerer, 100mm travel, 15mm bolt through boost axle standard and remote lockout
Headset: VP-2331 1-1/8"/1.5" with neck 3.5mm H:10.1L
Stem: Merida Expert -5 degree with carbon faceplate
Bars: Merida Expert double butted 6061 aluminium, flat, 720mm wide
Front Brake: Shimano M506 hydraulic disc, 180mm rotor
Rear Brake: Shimano M506 hydraulic disc, 160mm rotor
Brake Lever: Shimano XT
Front Mech: Shimano XT double
Rear Mech: Shimano XT GS Shadow+ 11 speed
Shifters: Shimano XT 11 speed
Speed: 22
Rims: Merida Expert CC, 22.5mm inner width, tubeless ready
Front Hub: Shimano Deore, 15mm bolt through, 110mm boost axle standard
Rear Hub: Shimano Deore, 12mm bolt through, 148mm boost axle standard
Spokes: Double butted stainless steel (Black)
Front Tyre: Maxxis Ikon 29er 2.2" Kevlar bead
Rear Tyre: Maxxis Ikon 29er 2.2" Kevlar bead
Seat Post: Merida Expert carbon 30.9mm in-line
Chainset: Shimano XT 36-26
Bottom Bracket: Press fit
Chain: KMC X11, 11 speed
Cassette: Shimano XT, 11 speed, 11-42
Pedals: XC Pro Alloy

Occasionally without notice, manufacturers sometimes change product specifications.
