(no reviews)Product ID: 274088

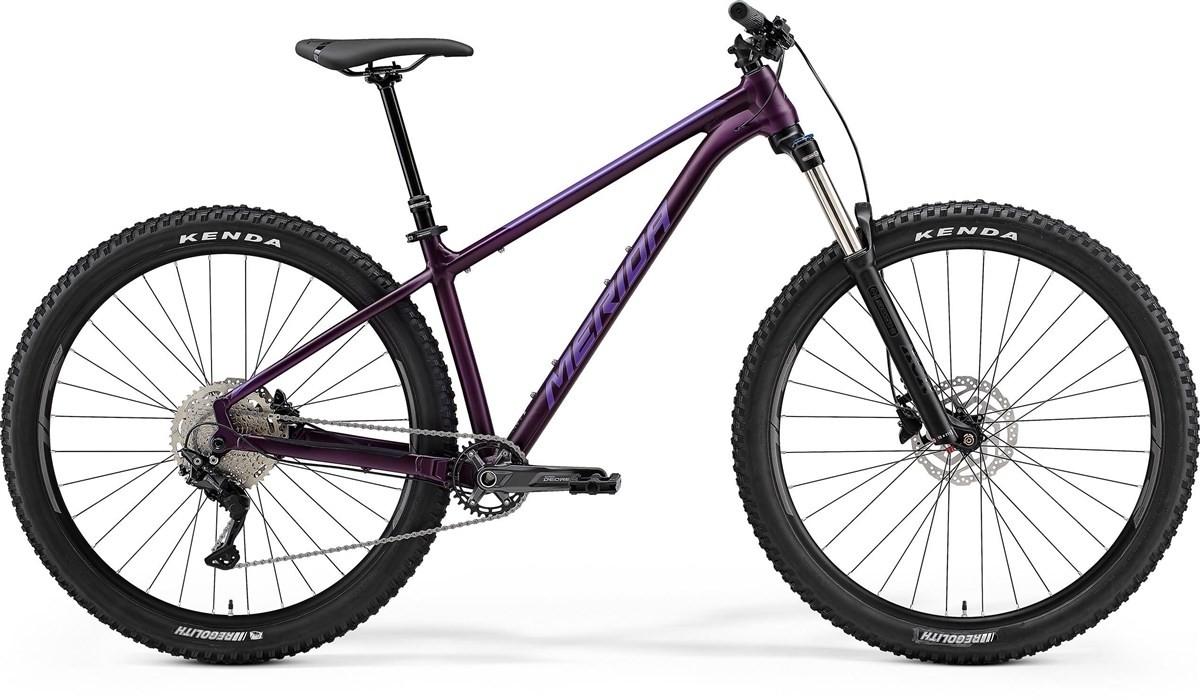

Merida Big Trail 400 - Nearly New – L 2023 - Hardtail MTB Bike
This Big Trail 400 mountain bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the drive side upper stay, rear mech. There are no manuals included.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max. tyre size 29" x 2.5" |
| Fork | Suntour XCR34 LOR; Air; 140mm travel; Tapered; lockout; 51mm fork offset. Max. tyre size: 29" x 2.4" |
| Headset | Merida M4455 |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 50mm (all sizes) |
| Bars | Merida Expert CC; aluminium; 740mm wide; 10mm rise |
| Front Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor |
| Rear Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 180 mm rotor |
| Brake Lever | Tektro HD-M275 |
| Rear Mech | Shimano Deore M5120 Shadow+ |
| Shifters | Shimano Deore M4100 with Shimano SL -MT500-IL lever |
| Speed | 10 |
| Rims | Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 32 spokes; Center lock; including removable lever with 6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
| Rear Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
| Seat Post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 125mm (S), 150mm (M/L), 175mm (XL/XXL) |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano Deore M5100; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL) |
| Bottom Bracket | Shimano Deore |
| Chain | KMC X10 |
| Cassette | KMC X10 |
| Pedals | VP Components, VPE-891 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida Big Trail 400 - Nearly New – L 2023 - Hardtail MTB Bike.
This product is no longer available.
