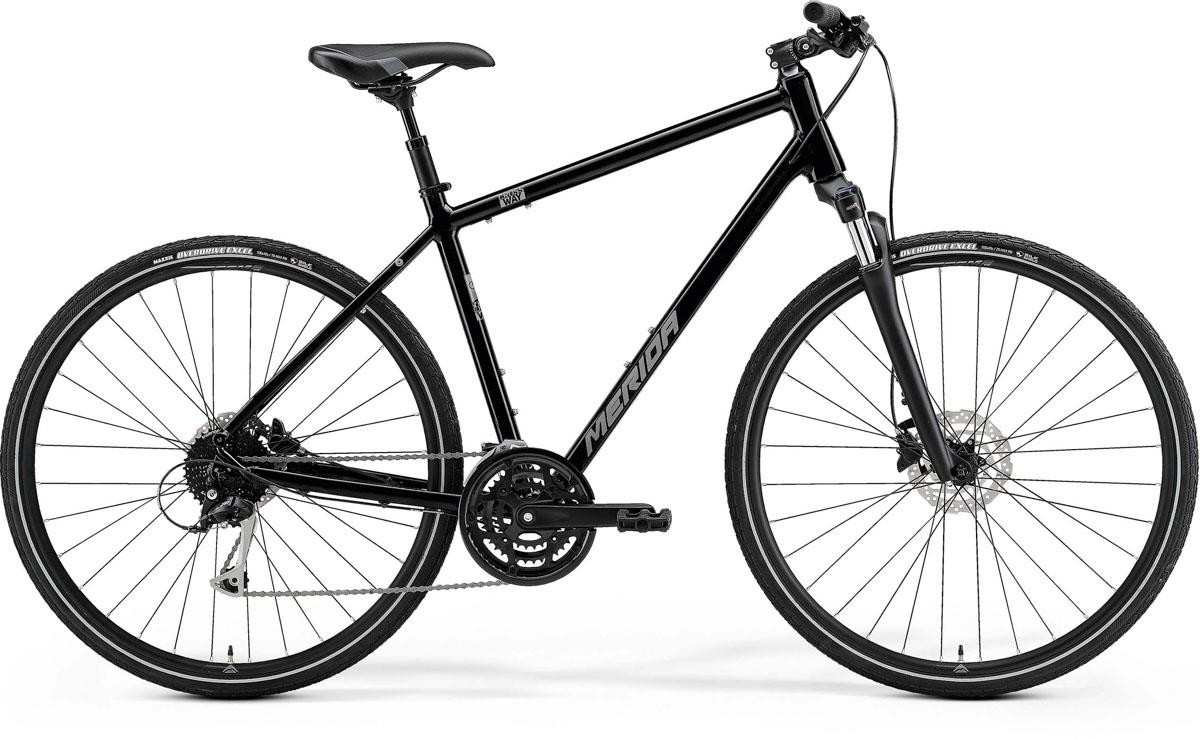

Merida Crossway 100 2021 - Hybrid Sports Bike
For MY21 the Crossway family gets a makeover. All disc equipped Crossway models get a new TFS frame which uses a much slimmer tube profile giving the bikes a much lighter and sporty look. Cables are internally routed and colour ways are kept simple to maintain the modern appearance. Only the 10V frame remains unchanged as it is all about the lowest price. The Crossway Urban is discontinued, the MY20 Speeder revamp made it far more versatile and closed the narrow gap that the Urban occupied.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS - 6061 series double butted and technoformed aluminium tubing with new 'urban' look and internal cable routing. Tapered head tube for confidence-inspiring handling. Equipped with mounts for rack, mudguards and kickstand. |
| Fork | Suntour NEX HLO; Coil; 63mm travel; Lockout |
| Headset | Merida M2346 Neck |
| Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Length : 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL |
| Bars | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Front Brake | Shimano MT-200 with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano MT-200 with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano MT-200 |
| Front Mech | Shimano M370 |
| Rear Mech | Shimano Alivio |
| Shifters | Shimano Altus |
| Speed | 27 |
| Rims | Merida Comp TK; 20mm inner rim width; 17mm profile; Material: aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Centerlock; Quick Release |
| Rear Hub | Shimano TX505; 135x9mm; 32 spokes; Centerlock; Quick release |
| Spokes | Black stainless |
| Front Tyre | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild |
| Rear Tyre | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshild |
| Seat Post | Merida TK; 30.9mm diameter; 10mm lay back; 40mm suspension travel |
| Saddle | Merida Cross Sport |
| Chainset | SAMOX, AF29-321SSS-P chainwheel with 170mm - XXS/XS/S, 175mm - M/XL length crank |
| Bottom Bracket | FSA TH-7420ST Cartridge Bearing |
| Chain | KMC M99 |
| Cassette | Shimano HG200; 11-34 teeth; 9 speed |
| Pedals | VP Components, VPE-891 |
Merida Crossway Size Chart
|
Frame Size |
Height (cm) |
Height (in) |
|
XXS |
< 149 |
< 4' 11" |
|
XS |
145 - 160 |
4' 9" - 5' 3" |
|
S |
155 - 170 |
5' 1" - 5' 7" |
|
M |
168 - 180 |
5' 6" - 5' 11" |
|
L |
178 - 190 |
5' 10" - 6' 3" |
|
XL |
> 185 |
> 6' 1" |
What size frame do I need if I am between sizes? - read here
