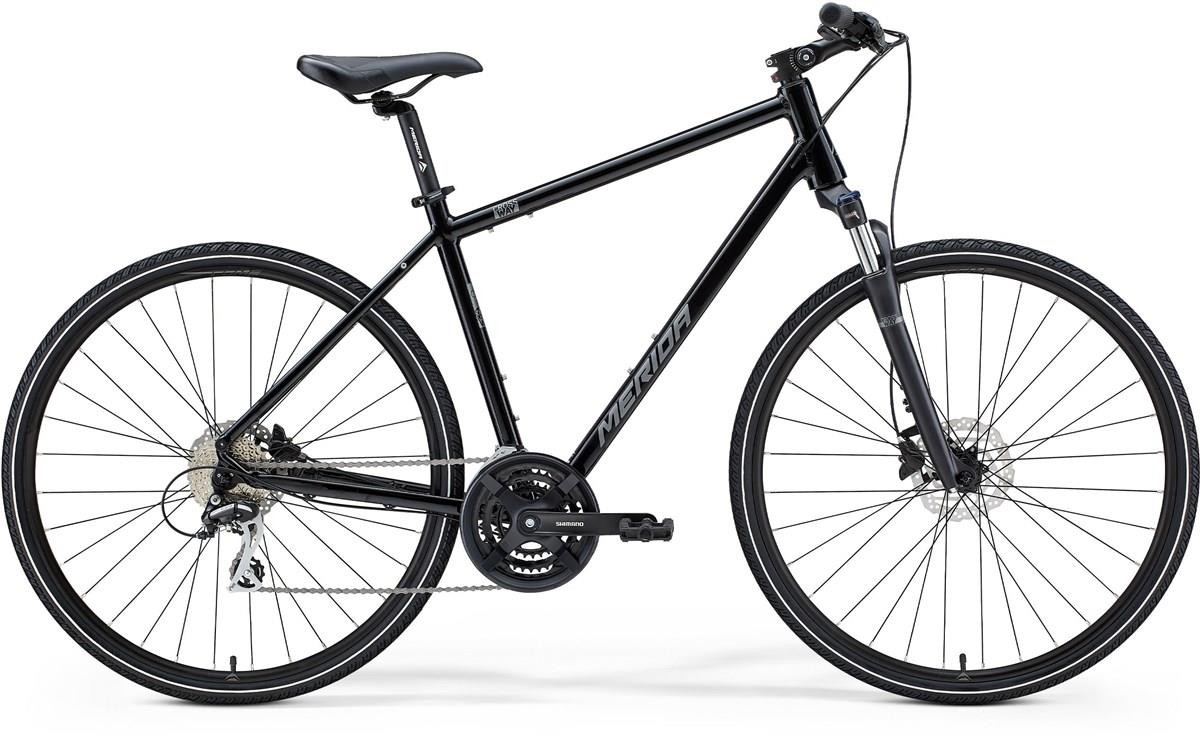

Merida Crossway 20D - Nearly New - 55cm 2023 - Hybrid Sports Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max. tyre size 700 x 50c |
| Fork | Suntour NEX HLO; Coil; 63mm travel; Lockout. Max. tyre size: 700 x 50c |
| Headset | Merida M2340 |
| Stem | Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm (all sizes) |
| Bars | Merida CC; aluminium; 660mm wide; 25mm rise |
| Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160 mm rotor |
| Rear Brake | Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano ST-EF505 |
| Front Mech | Shimano FD-TY710 |
| Rear Mech | Shimano RD-M359 |
| Shifters | Shimano ST-EF505 |
| Speed | 24 |
| Rims | Merida CC; 17mm inner rim width; Aluminium |
| Front Hub | Shimano TX505; 100x9mm wide; 32 spoke holes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm wide; 32 spokes; Center lock |
| Spokes | Black steel |
| Front Tyre | Merida K1171; 700x40C; wire bead |
| Rear Tyre | Merida K1171; 700x40C; wire bead |
| Seat Post | Merida TK; 30.9mm diameter; 13mm setback; 40mm seatpost suspension travel |
| Saddle | Merida Cross Sport |
| Chainset | Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M,L) |
| Bottom Bracket | FSA TH-7420ST-W, Cartridge Bearing |
| Chain | Sunrace M84 |
| Cassette | Sunrace M84 |
| Pedals | VP Components, VPE-891 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
