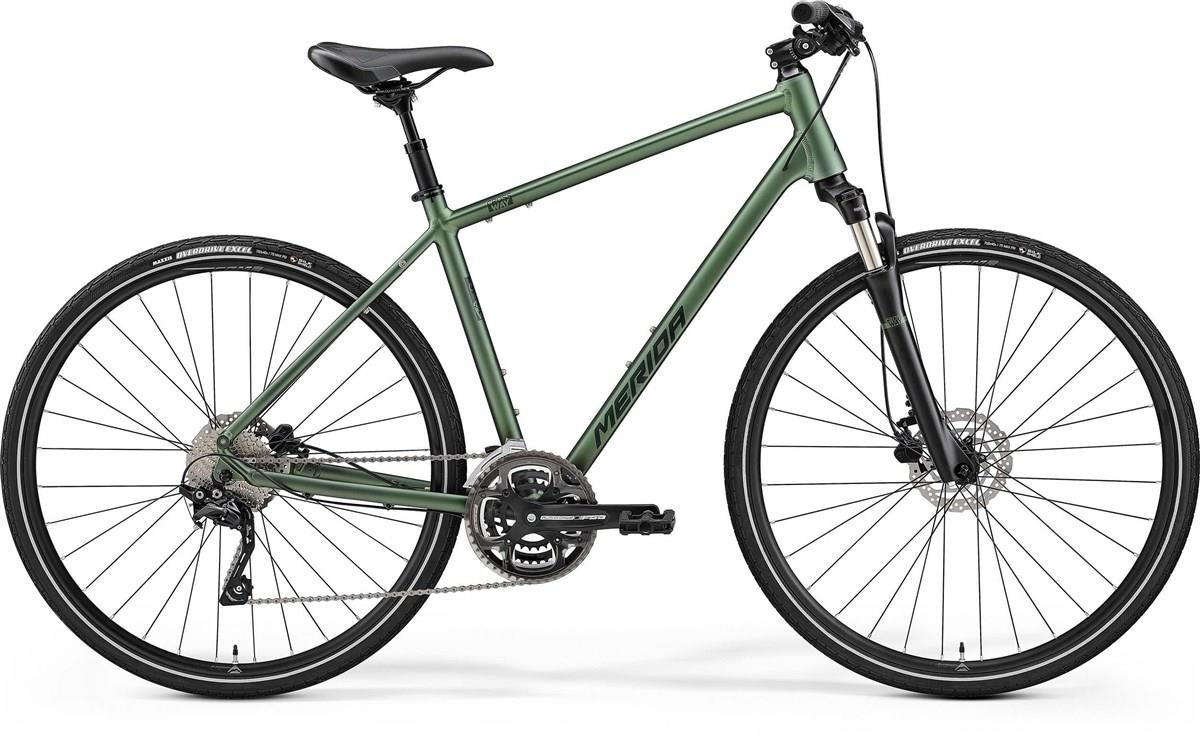

Merida Crossway 300 - Nearly New - M 2023 - Hybrid Sports Bike
This Crossway 300 - Nearly New - M hybrid bike is rated the highest possible grade which reflects that the bike is in excellent condition and can be reasonably considered to be like new. Having never been ridden, the only minor cosmetic marks are on the down tube, fork and seat stay.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS II - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max. tyre size 700 x 50c |
| Fork | Suntour NX1-DS-LO; Coil; 63mm travel, Lockout. Max. tyre size: 700 x 50c |
| Headset | Merida M2346 Neck |
| Stem | Merida Comp TK; aluminium; 31.8mm diameter; adjustable - Stem length: 80mm (XXS/XS/S), 90mm (M/L), 100mm (XL) |
| Bars | Merida Comp CC; aluminium; 660mm wide; 25mm rise |
| Front Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 160 mm rotor |
| Rear Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Tektro HD-M275 |
| Front Mech | Shimano Deore |
| Rear Mech | Shimano Deore |
| Shifters | Shimano Deore |
| Speed | 30 |
| Rims | Merida Comp TK; 20mm inner rim width; 17mm depth; Aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm; 32 spokes; Center lock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
| Rear Tyre | Maxxis Overdrive Excel; 700 x 40C; wire bead; reflective stripe, Silkshield |
| Seat Post | Merida TK; 30.9mm diameter; 10mm lay back; 40mm suspension travel |
| Saddle | Merida Cross Sport |
| Chainset | FSA Alfa Drive; 48-36-26 tooth chainset. Crank length: 170mm (S), 175mm (M,L) |
| Bottom Bracket | FSA TH-7420ST Cartridge Bearing |
| Chain | KMC X10 |
| Cassette | Shimano HG500 11-34 teeth |
| Pedals | VP Components, VPE-891 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
