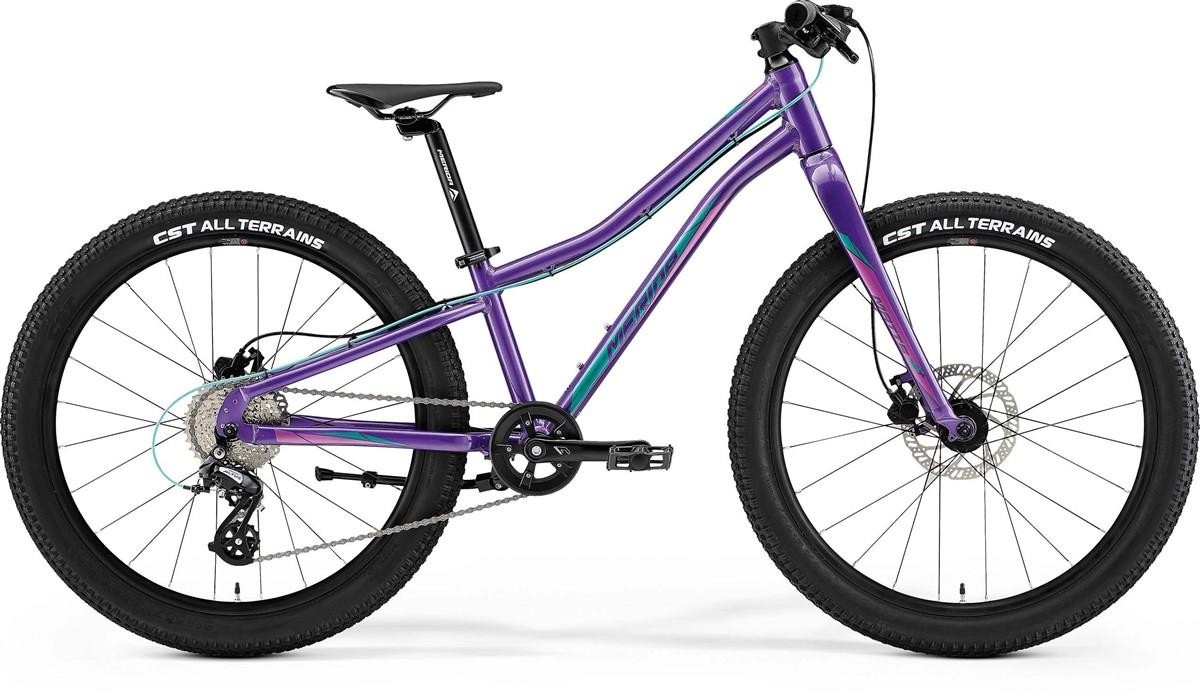

Merida Matts J.24 - Nearly New 2023 - Junior Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS - 6061 aluminium tubing, double butted and technoformed. BSA BB standard, 9mm QR axle standard. Replaceable dropout. Maximum tyre clearance 24" x 2.4" |
| Fork | Merida Matts J. 24+; Material: aluminium. Max. tyre size: 24" x 2.4" |
| Headset | VP Z104AE |
| Stem | Merida Expert CC; aluminium; 31.8mm diameter; -5 degree stem angle - Stem length: 60mm |
| Bars | Merida Expert JR; aluminium; 620mm width; 20mm rise |
| Front Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Tektro; 160mm rotor |
| Rear Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Tektro; 140mm rotor |
| Brake Lever | Tektro HD-M275 |
| Rear Mech | Shimano RD-M310 |
| Shifters | Altus |
| Speed | 8 |
| Rims | Merida JR 24+; Aluminium |
| Front Hub | Joytech D761DSE; 100x9mm; 24 spokes |
| Rear Hub | Joytech D762TSE; 135x9mm; 24 spokes |
| Spokes | Black steel |
| Front Tyre | CST Jet C1820; 24" x 2.4"; wire bead |
| Rear Tyre | CST Jet C1820; 24" x 2.4"; wire bead |
| Seat Post | Merida CC; aluminium; 30.9mm diameter; in-line |
| Saddle | Merida Expert JR |
| Chainset | Merida Expert JR; 28 tooth chainset. Crank length: 140mm |
| Bottom Bracket | Cartridge Bearing |
| Chain | Sunrace M84 |
| Cassette | Sunrace M84 |
| Pedals | Marwi SP-202 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida Matts J.24 - Nearly New 2023 - Junior Bike.
This product is no longer available.
