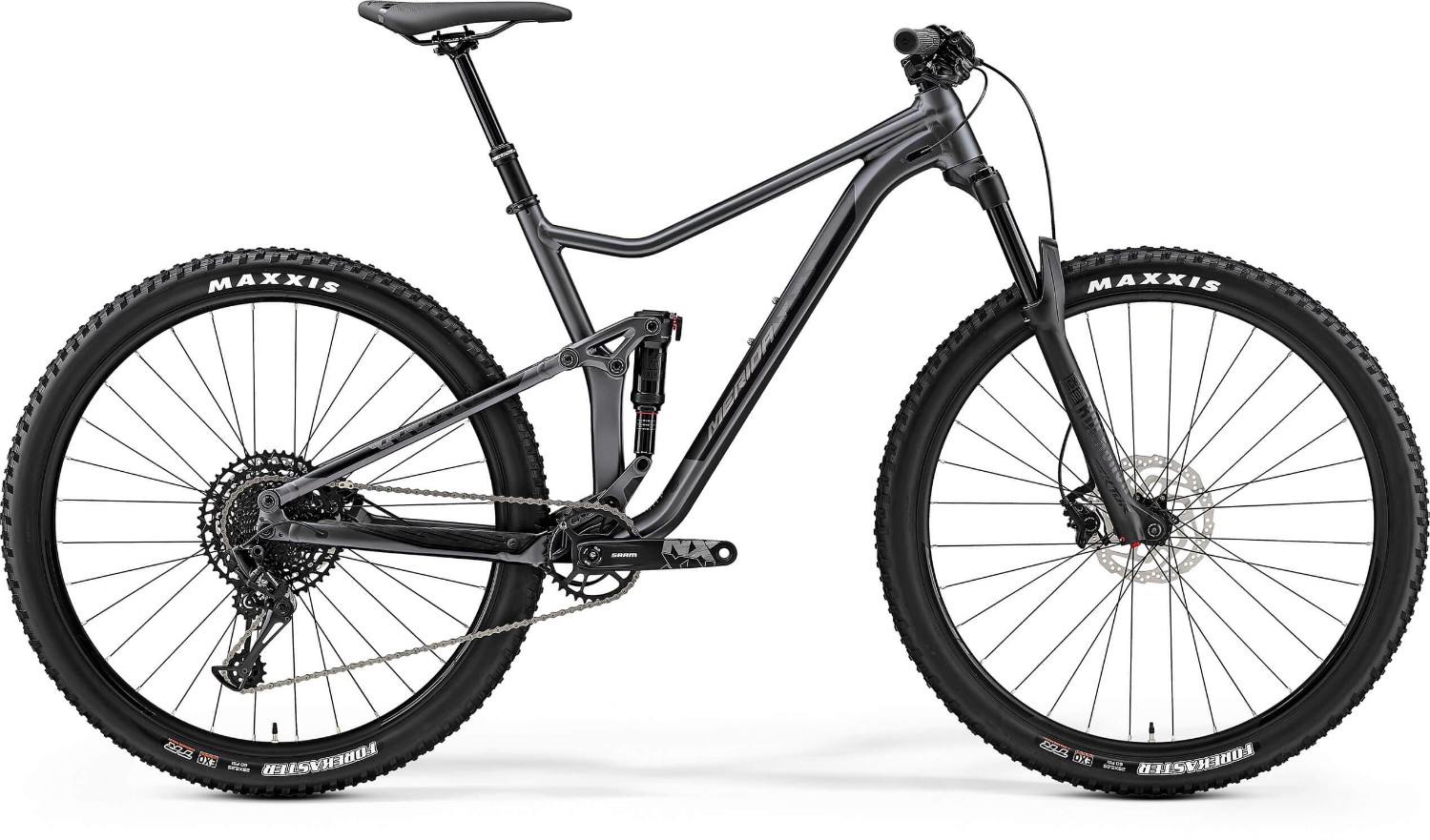

Merida One-Twenty 9.600 29" Mountain Bike 2019 - Trail Full Suspension MTB
One of the new breed of trail bikes redefining what a short travel bike is capable of. With a bottomless suspension feel, sensitive in the initial hit with a progressive and supportive mid-stroke. Total frame optimisation for 2019 with smart and rattle free internal cable routing. Low standover height, bottle cage mounts, enlarged bearings and easy frame maintenance. Enhanced with a solid component choice the new Merida One-Twenty is a true do-it-all trail bike.
Key Features:
- 6066 Aluminium frame with smart internal cable routing
- Rock Shox Deluxe RL Shock controls the 120mm of rear wheel travel
- Rock Shox Sektor RL Fork with 130mm of trail taming travel
- SRAM NX Eagle 1x12 speed groupset gives a huge ratio for climbing
- Sizes: S, M, L, XL
- Colour: Silk Black/Dark Silver
- The Merida One-Twenty 7.600 27.5 is available with 0% APR finance
The design considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays which is as easy to maintain. All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt.
It’s our most versatile bike, available in 29” wheel in carbon and either 27.5” or 29” in aluminium so it can be used as a fun trail bike or a superfast marathon bike.
Built around a frame made of 6066 series triple butted, hydroformed aluminium tubing with smooth welding. Tapered head tube for precise steering, Boost axle standard for stronger wheels, Smart Entry cable clamping for rattle free running. 3020g – M +/- 3%
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite – 6066 series triple butted, hydroformed aluminium tubing with smooth welding. Tapered head tube, Boost axle standard for stronger wheels, Smart Entry cable clamping for rattle free running. 3020g – M +/- 3% |
| Fork | Rock Shox Sektor RL; Air 130mm travel; Tapered steerer |
| Rear Shock | Rock Shox Deluxe RL; lockout |
| Headset | FSA NO.47/50 |
| Stem | Merida Expert TR; 35mm long; 0 degrees |
| Bars | Merida Expert TR, 760mm wide, 20mm rise |
| Front Brake | Shimano MT-500 hydraulic with Shimano RT10 180mm rotors |
| Rear Mech | SRAM NX Eagle |
| Shifters | Sram NX Eagle, 12 speed with I-Spec II adapter |
| Speed | 12 |
| Rims | Merida Expert TR; 29mm inner width |
| Front Hub | Shimano MT400-B; Boost standard 15mm bolt through front; Shimano MT400-B; Boost standard 12mm bolt through |
| Rear Hub | 32 spokes centre lock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Forekaster; 2.35"; kevlar bead; TR EXO Dual |
| Rear Tyre | Maxxis Forekaster; 2.35"; kevlar bead; TR EXO Dual |
| Seat Post | Merida Expert TR; 30.9mm diameter; in line; S: 100mm seat post travel - M/L/XL 125mm seat post travel; |
| Saddle | Merida Comp CC |
| Chainset | Sram NX Eagle; 32 teeth |
| Bottom Bracket | Sram BB DUB press fit MTB 92 |
| Chain | SRAM NX Eagle |
| Cassette | Sram NX 1230 Eagle; 11-50 teeth; 12 speed |
| Pedals | Basic Resin Flat |
Merida One-Twenty 2024 Size Chart
|
Frame Size |
Height cm |
Height Feet / Inches |
|
XS |
<163 |
<5'4" |
|
S |
163 - 173 cm |
5'4" - 5’8” |
|
M |
167 - 183 cm |
5’6” – 6’0” |
|
L |
177 - 190 cm |
5’10” – 6’3” |
|
XL |
> 187 cm |
>6’2” |
What size frame do I need if I am between sizes? - read here
Merida One Twenty 2024 Geometry Chart
| Size | XShort | Short | Mid | Long | XLong |
|---|---|---|---|---|---|
| Stack | 604 | 609 | 613 | 618 | 622 |
| Reach | 425 | 445 | 465 | 485 | 505 |
| Head Tube Length | 95 | 100 | 105 | 110 | 115 |
| Head Tube Angle | 66° | 66° | 66° | 66° | 66° |
| Bottom Bracket Drop | 40 | 40 | 40 | 40 | 40 |
| Fork Length | 541 | 541 | 541 | 541 | 541 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1155 | 1177 | 1199 | 1221 | 1243 |
| Top Tube Length (horizontal) | 548 | 569 | 590 | 611 | 632 |
| Standover Height | 748 | 750 | 752 | 754 | 756 |
| Seat Tube Length | 400 | 410 | 425 | 445 | 470 |
| Seat Tube Angle | 78.5° | 78.5° | 78.5° | 78.5° | 78.5° |
| Tyre Size | 29" | 29" | 29" | 29" | 29" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida One-Twenty 9.600 29" Mountain Bike 2019 - Trail Full Suspension MTB.
This product is no longer available.
