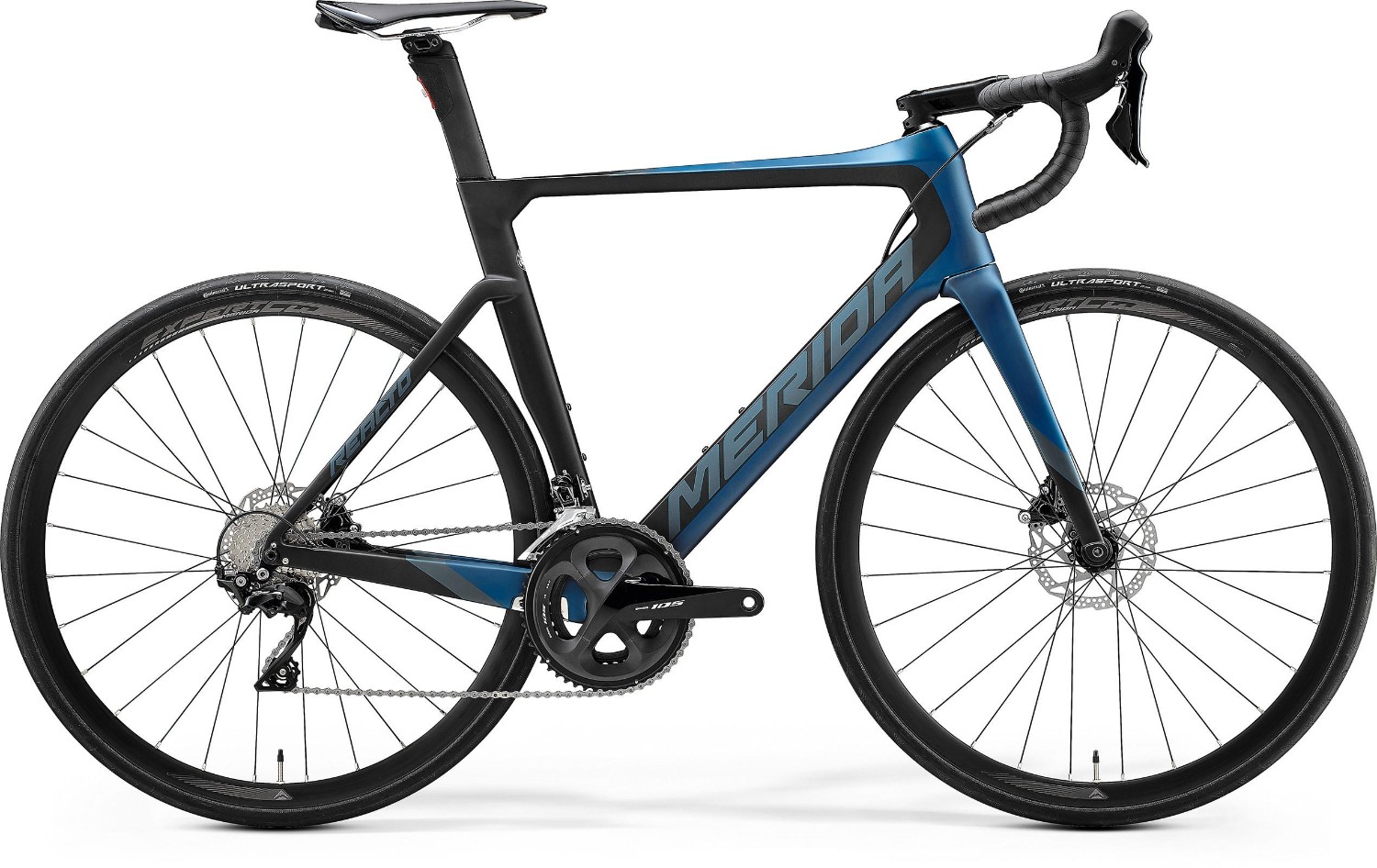

Merida Reacto Disc 4000 2020 - Road Bike

£2,000.00
Price Match
or £55.50 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Select a colour
Add to Basket

Cycle to Work

Product Description

Tried and tested on stages of the world’s most prestigious races, the Reacto is Merida’s aero road bike. With a range to suit any budget the fantastic Reacto aero road bike retains its reputation for incredible value. Lighter and more aerodynamically efficient, the new Reacto is 8 watts more efficient than previous versions of the bikes.

Key Features:

  • Carbon frame and fork with CF2 slightly relaxed geo
  • Shimano 105 2x11 drivetrain for the smooth shifting
  • Merida Comp CW/VP wheelset for fast rolling
  • Shimano 105 hydraulic disc brakes give powerful stopping power
  • Sizes: 47, 50, 52, 54, 56, 59cm
  • Colours: Green, Black
  • The Merida Reacto Disc 4000 is available with 0% APR finance

Merida Reacto Review

Highlights:

  • X-Taper Headtube
  • Internal Cable Routing
  • Di2 Routing
  • Nano Matrix Carbon
  • Anti Wrinkle System
  • S-Flex
  • Carbon Fork
  • Disc Cooler
  • Internal Clamp
  • Flip Flop Head

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:CF2 carbon, slightly more relaxed geometry and more economic carbon lay-up. Tapered head tube, BB386 and 12mm bolt through axles. Truncated NACA Fastback profile tubes. Flat mount disc brakes with cooling fins, – 1150g M/L +/- 3%
Fork:Merida Reacto CF2 disc; Tapered steerer; carbon; disc cooler technology
Headset:Merida Reacto
Stem:Merida Expert CW; 31.8 mm diameter; -8 degree rise
Bars:Merida Expert CW
Front Brake:Shimano 105
Rear Brake:Shimano 105
Brake Lever:Shimano 105 R7000
Front Mech:Shimano 105; GS
Rear Mech:Shimano 105; GS
Shifters:Shimano 105 disc
Speed:22
Rims:Merida Expert CW; 19 mm inner width; 30 mm deep
Front Hub:VP CLK170F; 100x12 mm axle; 28 spoke, Centerlock
Rear Hub:VP 270SB; 12-142 mm axle; 28 spoke; Centerlock rear with Merida Comp TR rear axle with removeable 6/4mm allen key
Spokes:Double Butted Black stainless
Front Tyre:Continental Ultra Sport II; 700x25C; Kevlar bead - folding
Rear Tyre:Continental Ultra Sport II; 700x25C; Kevlar bead - folding
Seat Post:Merida Expert CW; Aero shape; 15 mm layback; Carbon
Saddle:Merida Expert CC
Chainset:Shimano 105; 52-36 teeth
Bottom Bracket:FSA 386-BB30 PF6000 [SMN FC]
Chain:KMC X11
Cassette:Shimano CS-R7000; 11-30 teeth; 11 speed
Pedals:Not Included

There are currently no customer reviews

Write your own review

Reacto Sizing

Merida Reacto Bike Sizing

See the table below to find the right size Merida Reacto.



Frame Size

47

158cm



167cm

50

163cm



172cm

52

168cm



177cm

54

173cm



182cm

56

178cm



187cm

59

183cm



183cm +



Read our bike size guide for more information on sizing.

Reacto 300 and 400 Geometry

FRAME SIZE CM

47

50

52

54

56

59

ST SEAT TUBES MM

470

500

520

540

560

590

TT TOP TUBES MM

518

530

545

560

575

590

CS CHAIN STAYS MM

405

405

405

405

405

405

HTA HEAD TUBE ANGLE [°]

71

72

73

73

73

73

STA SEAT TUBE ANGLE [°]

74

74

74

73.5

73

73

BD BOTTOM BRACKET DROPS MM

61

61

61

61

61

61

HT HEAD TUBE LENGTHS MM

120

130

140

160

180

205

FL FORK LENGTHS MM

366

366

366

366

366

366

R REACH MM

373

381

393

397

401

408

S STACKS MM

506

519

532

551

570

594

WHEEL BASE MM

974

978

984

994

1004

1019

SH STAND OVER HEIGHT MM

740

766

784

802

820

848



Reacto 4000, 5000, 6000, 7000-E, Force Edition Geometry

FRAME SIZE CM

50

52

54

56

59

ST SEAT TUBES MM

500

520

540

560

590

TT TOP TUBES MM

535

545

560

575

590

CS CHAIN STAYS MM

408

408

408

408

408

HTA HEAD TUBE ANGLE [°]

71

72.5

73

73

73.5

STA SEAT TUBE ANGLE [°]

74

74

73.5

73

73

BD BOTTOM BRACKET DROPS MM

70

66

66

66

66

HT HEAD TUBE LENGTHS MM

142

162

177

197

217

FL FORK LENGTHS MM

368

368

368

368

368

R REACH MM

381

385

390

394

402

S STACKS MM

539

558

575

593

616

WHEEL BASE MM

991

990

995

1005

1014

SH STAND OVER HEIGHT MM

759

782

802

821

848



Reacto 8000-E, 10K-E, 9000-E Geometry

FRAME SIZE CM

50

52

54

56

59

ST SEAT TUBES MM

500

520

540

560

590

TT TOP TUBES MM

535

545

560

575

590

CS CHAIN STAYS MM

408

408

408

408

408

HTA HEAD TUBE ANGLE [°]

72.5

73.5

73.5

73.5

74

STA SEAT TUBE ANGLE [°]

74

74

73.5

73

73

BD BOTTOM BRACKET DROPS MM

70

66

66

66

66

HT HEAD TUBE LENGTHS MM

126

142

157

172

192

FL FORK LENGTHS MM

368

368

368

368

368

R REACH MM

383

389

395

400

409

S STACKS MM

529

543

557

572

593

WHEEL BASE MM

978

980

990

1000

1009

SH STAND OVER HEIGHT MM

761

782

800

819

844



Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Road Bike Guide



Road Bike Guide

Is a Road Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our road bike buying guide to help you decide what type of bike is right for your needs.

When you’re choosing a road bike, there are a few things to look out for which can help you work out the quality and performance you can expect from a particular model.


Usage

What road bike is right for you? There are a few different kinds of road bike, and they all have their specialities. We break down their strengths and usage in an easy to read table below.

Type of Road Bike

Usage

Pros

Cons

Sportive Road

Long distance, training, sportive and endurance riding, as well as rough roads.

Comfortable, relaxed geometry is more accessible for riders new to road cycling.

Not as aggressive or stiff, so serious racers may look for a road race bike.

Road Race

Racing and training.

Lightweight, aggressive geometry for most efficient riding position.

Range limited to tarmac roads and cycle paths.

Aero Race

Road and criterium racing.

Aero dynamically efficient and fast. Stiff frames and aggressive geometry.

Heavier than road race bikes.

Flat Bar Road

Training and commuting. Comfortable, fast city riding.

Upright riding position is great for training and city riding.

Limited options of bikes. MTB-like position not great for racing.

Type of Road Bike / Usage

Pros

Cons

Sportive Road

Long distance, training, sportive and endurance riding, as well as rough roads.

Comfortable, relaxed geometry is more accessible for riders new to road cycling.

Not as aggressive or stiff, so serious racers may look for a road race bike.

Road Race

Racing and training.

Lightweight, aggressive geometry for most efficient riding position.

Range limited to tarmac roads and cycle paths.

Aero Race

Road and criterium racing.

Aero dynamically efficient and fast. Stiff frames and aggressive geometry.

Heavier than road race bikes.

Flat Bar Road

Training and commuting. Comfortable, fast city riding.

Upright riding position is great for training and city riding.

Limited options of bikes. MTB-like position not great for racing.


Frame Material

The vast majority of road bikes are made from either aluminium alloy or carbon fibre. Alloy bikes can offer higher tier groupsets for a lower price, whereas carbon frames come at a significant premium, but are lighter and give that extra performance advantage.

Aluminium

Aluminium alloy frames
Alloy frames have come a long way recently, using hydroforming and butting to keep the weight low, while keeping stiffness high.

Carbon fibre

Carbon fibre composite frames
Carbon frames have a lighter weight and greater stiffness, while maintaining excellent comfort.


Fork

Road bike forks are made to be lightweight and stiff, giving accurate steering, as well as a comfortable ride. Budget road bikes will have alloy forks, whereas mid-range forks often have mix-material forks, with alloy steerer tubes and carbon fork blades. Carbon bladed forks deliver a more comfortable ride, absorbing road vibrations and flexing slightly in rough roads. Full carbon forks are found on high end road bikes. They are especially lightweight and offer even greater stiffness.


Groupset

A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifters
  • Front & rear derailleur
  • Chain
  • Cassette

Road groupsets are supplied by Shimano, SRAM or Campagnolo. Having reliable and fast shifting can make all the difference when pushing hard. The majority of road bikes have double chainring drivetrains, while triple chainring setups are usually only found on low end bikes and touring bikes. Road bikes will have 7-11 speeds in the rear, with higher gears meaning more options for smoother riding.

Road Groupsets

Brakes

Disc Brakes

Disc brakes
Disc brakes offer greater stopping power and modulation. They work as well in wet as dry weather, and don’t require the rims to be replaced periodically. They come at a weight penalty, however.

Calliper Rim Brakes

Calliper rim brakes
Rim brakes are lightweight and easy to maintain. They allow greater aerodynamics for aero road bikes and


Wheels & Tyres

Types of tyres

Road bikes tyres don’t vary as much as mountain bike or even hybrid, but they still make a huge difference to how the bike rides. For a detailed look into road bike tyres, see our guide.

Road tyres have long been offered as either clincher or tubular. Clincher tyres are the standard tyres that fit onto standard rims with a tube holding the air. Tubular tyres are glued to a special tubular rim and are fully encased, doing without a tube.

Tubeless tyres are now a feature of road bikes, delivering a compromise between tubular and clincher tyres. They look the same as clincher tyres, but pair up with special rims to offer a proper seal within the tyres, also doing away with tubes.

Tyre Size

Road tyres are traditionally quite narrow. Nowadays the accepted standard is 25c, but 23c and 28c tyres are very common too. The larger the size tyre, the more comfortable they will be, but they will also be heavier and potentially slower rolling. Sportive and flat bar road bikes will commonly have wider tyres, whereas race and aero road bike will tend towards narrower tyres.

Finance

How do I apply for finance?

Spend £99 or more at Tredz and you can spread the cost. Pay monthly over 6-48 months, interest free (dependent on repayment terms and amount).

1Fill your basket with everything you want from Tredz and go to the checkout.

2During checkout, select the finance option you want as your method of payment.

3You will be sent to our finance provider's secure server to complete your application.

4Finance providers PayPal & V12 will use the information provided to make a decision and complete checkout if you are approved.

Read more about buying on finance

Buy now, pay 12 months later with interest free credit Pay nothing for 3 or 6 months on orders over £850, or 12 months on orders over £1,500* *Not available through PayPal Credit

Flexible finance options

Choose your term.

£2,000.00 Your basket + this product

Lowest monthly cost

£55.50 15.9% APR

per month

for 48 months

Lowest 0% interest

£83.34 0% APR

per month

for 24 months

Open Finance Calculator
Representative example: If total purchase price is £1,399.00 with a deposit of £139.90 (10%) and your selected term is 36 months Classic Credit (15.9% APR fixed), you would pay £43.55 per month. Total charge for credit will be £308.70 and total amount repayable is £1567.80, subject to terms and status.

Delivery & Guarantee

UK Delivery Information

We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE in the UK, regardless of the size and on all orders over £20.

Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.

Please note that Pre-Order dates can sometimes change due to updated stock information.

Click here for more UK and international delivery information.

Returns & Warranty

It's easy to return a product with our 365 day, hassle free returns.

We will give you a full refund or exchange on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).

Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.

If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.

For more information please visit our Returns & Warranty page.

What's In The Box

What's In The Box

As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.

Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

What's in the box
  • Basic setup instructions
  • 16 point quality control checklist
  • Free tredz multitool
  • Free tred pedal spanner
  • Free basic pedals
  • Free drawstring kit bag
  • Free bike insurance voucher

All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.

  • Basic bike setup instructions
  • Free ‘basic’ pedals
  • Free Tredz pedal spanner
  • Free Tredz 9-key trail tool
  • Free Tredz drawstring bag
  • Free 8 weeks insurance voucher
  • 16 point, quality control check sheet

Tredz Service:

Tredz bikes are fully built & set up to ride
Read our bike setup guide.

Free UK delivery, on a date that suits you
We will ring to choose a suitable day. Find out more
  • Tredz bikes are fully checked & tested by Cytech qualified mechanics
  • 0% APR finance available on any basket over £99
  • Price match
  • 365 day 'no hassle' returns
  • Free UK delivery, on a date that suits you

You may also like...

Merida Scultura 6000 2019 - Road Bike Merida Scultura 6000 2019 - Road Bike
From £1,850.00 Save up to £350.00
Merida Scultura Disc 5000 2019 - Road Bike Merida Scultura Disc 5000 2019 - Road Bike
From £1,850.00 Save up to £350.00
Merida Scultura Disc 6000 2018 - Road Bike Merida Scultura Disc 6000 2018 - Road Bike
From £2,000.00 Save up to £750.00

Show finance options for:

Available finance options:

Months / APR Per month

Buy now, pay later over £850. Find out more Finance provider options available
