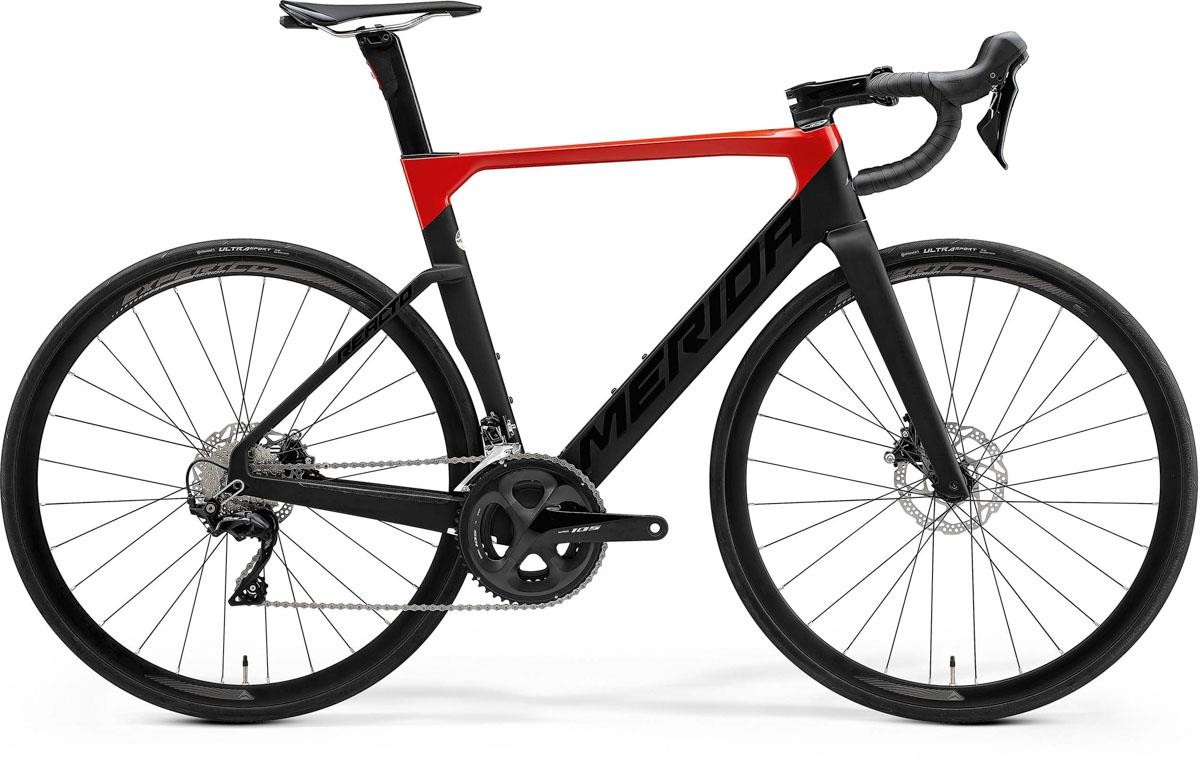

Merida Reacto Disc 4000 2021 - Road Bike
- ShowProduct Information Our Reacto has always been a class leading aero bike, combining state of the art aerodynamics and co... read more
- Show Reviews & Q&As
- Show Reacto Sizing & Geometry
- Show Road Bike Guide
- Show Finance
- Show Delivery & Guarantee
- Show What's In The Box
Product DescriptionOur Reacto has always been a class leading aero bike, combining state of the art aerodynamics and comfort. The 4th generation Reacto is more slippery and beautiful than ever, incorporating wider tyres and much neater cockpit cable integration. With its predecessor delivering almost unrivalled aerodynamic performance we had to look at the smallest incremental improvements. Computational Fluid Dynamics (CFD) calculations modelled performance in a virtual wind tunnel to optimise aerodynamics guiding the changes which gave most aerodynamic benefit: New fork design, smoothly integrated into the frame, significant 2 Watt improvement New handlebar design completely integrating the cables, saves about 2 watts per cable Increased gap between the tyre and seat stays and between the tyre and fork crown and blades optimises airflow in those key areas. A lower junction between the seat stays and seat tube further reduces drag. Further small details such as integrating the front disc cooler behind the fork and the rear in the rear triangle and creating new through axles with the thread integrated into the fork dropout also minimise drag and improve aerodynamic performance. All these improvements enable us to over-compensate the aerodynamic compromises made to give the bike bigger tyres. The result: the perfect package of comfort, aerodynamic, lightweight and style. Prototypes were wind tunnel tested following the German TOUR magazine standard, including the ‘moving leg dummy’ test. The new Reacto needs just 209 watts effort for 45 km/h speed, 1 watt faster than its predecessor, and in the leading group of aero road bikes ever tested by TOUR magazine. The 4000 uses a CF3 frame, the same geometry and features, but with more economic fibres used in the carbon lay-up.
Occasionally, without notice, manufacturers change product design and/or specifications.
|Frame:||CF3 carbon frame with the same race proven geometry as the CF5 with NACA fastback profiled tubes for efficient aerodynamics. Tapered headtube for confidence inspring handling, BB86, bolt through axles, disc cooler|
|Fork:||Reacto CF3 IV Disc; carbon|
|Stem:||FSA NS SMR; aluminium - Length : 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL|
|Bars:||Merida Expert CW|
|Front Brake:||Shimano 105; Hydraulic disc with Shimano RT54; 160mm rotor|
|Rear Brake:||Shimano 105; Hydraulic disc with Shimano RT54; 160mm rotor|
|Brake Lever:||Shimano 105 R7000|
|Front Mech:||Shimano 105|
|Rear Mech:||Shimano 105; GS|
|Rims:||Merida Expert CW; 19mm inner rim width; 30mm profile|
|Front Hub:||VP CLK170F; 100x12mm; 28 spokes, Centerlock|
|Rear Hub:||VP 270SB; 12-142mm; 28 spokes; Centerlock; including removable lever with 4/6mm Allen key|
|Spokes:||Double Butted Black stainless|
|Front Tyre:||Continental Ultra Sport III; 700 x 25C; Kevlar bead; folding|
|Rear Tyre:||Continental Ultra Sport III; 700 x 25C; Kevlar bead; folding|
|Seat Post:||Merida Team CW; Aero shape; 15mm lay back; Carbon with integrated light and battery|
|Saddle:||Merida Expert CC with saddlebox containing Merida Multitool|
|Chainset:||Shimano 105; 52-36 teeth chainwheel with 165mm - XSS, 170mm - XS/S, 172.5mm - M, 175mm - L/XL length crank|
|Bottom Bracket:||SM-BB71-41B, Pressfit 86.5|
|Cassette:||Shimano CS-R7000; 11-30 teeth; 11 speed|
Reacto Sizing & Geometry
Merida Reacto 2021 Sizing
|FRAME SIZE||BODY HEIGHT|
|XXS||153 - 162 cm|
|XS||158 - 167 cm|
|S||163 - 172 cm|
|S/M||168 - 177 cm|
|M/L||173 - 182 cm|
|L||178 - 187 cm|
|XL||> 183 cm|
Merida Reacto 2021 Geometry
|FRAME SIZE CM||47||50||52||54||56||59|
|ST SEAT TUBE [MM]||470||500||520||540||560||590|
|TT TOP TUBE [MM]||520||536||545||560||575||590|
|CS CHAIN STAY LENGTH [MM]||408||408||408||408||408||408|
|HTA HEAD TUBE ANGLE [°]||70.5||72||72.5||73.5||73.5||74|
|STA SEAT TUBE ANGLE [°]||74.5||74||74||73.5||73||73|
|BD BOTTOM BRACKED DROP [MM]||70||70||66||66||66||66|
|HT HEAD TUBE [MM]||105||112||128||140||155||176|
|FL FORK LENGTH [MM]||385||385||385||385||385||385|
|R REACH [MM]||377||384||390||395||400||409|
|S STACK [MM]||517||529||542||557||571||593|
|WB WHEEL BASE [MM]||985||983||990||990||999||1010|
|SH STAND OVER HEIGHT [MM]||746||771||792||810||826||853|
What size frame do I need if I am between sizes? - read here
Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!
