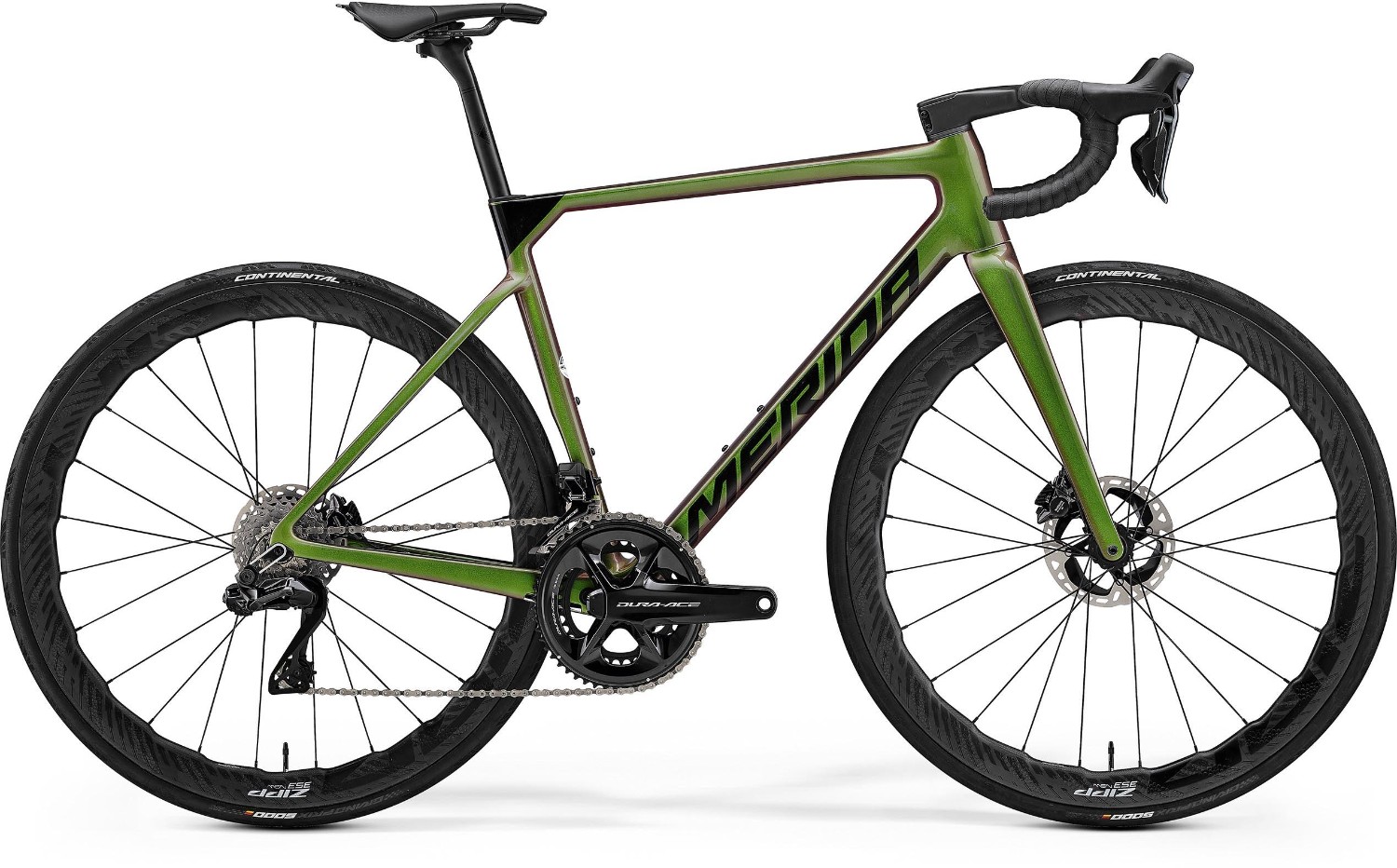

Merida Scultura 10K 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF5 carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
| Fork | Scultura CF5 Disc; full carbon; Max. tyre size: 700 x 30c; Disc cooler technology |
| Headset | Merida custom |
| Stem | Merida Team One-piece integrated; carbon. Stem length: 90mm (XXS/XS), 100mm (S), 110mm (M), 120mm (L/XL) |
| Bars | Merida Team SL One-piece integrated; carbon; Width: 400mm (XXS-XS-S), 420mm (M), 440mm (L-XL) |
| Front Brake | Shimano Dura Ace; hydraulic disc brake caliper with Shimano MT900; 160mm rotor |
| Rear Brake | Shimano Dura Ace; hydraulic disc brake caliper with Shimano MT900; 140mm rotor |
| Brake Lever | Shimano Dura Ace disc |
| Front Mech | SHIMANO Dura Ace Di2 |
| Rear Mech | Shimano Dura Ace Di2 |
| Shifters | Shimano Dura Ace disc Di2 |
| Speed | 24 |
| Rims | Part of wheelset - ZIPP 353 NSW TL Disc; 25mm inner rim width; 45mm rim depth; carbon; Tubeless ready (tubeless tape and valves included) |
| Front Hub | Part of wheelset - ZIPP 353 NSW TL Disc; 100x12mm; Center lock; With Merida Expert SL axle |
| Rear Hub | Part of wheelset - ZIPP 353 NSW TL Disc; 142x12mm; Center lock; With Merida Expert SL axle; including removable lever; 6/4mm allen key |
| Spokes | part of wheelset |
| Front Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
| Seat Post | Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex |
| Saddle | Prologo Scratch M5 |
| Chainset | Shimano Dura Ace; 52-36 tooth chainset. Power Meter. Crank length: 165mm (XXS,XS), 170mm (S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | Shimano BB92-41B, Pressfit 86.5 |
| Chain | Shimano CN-M9100-12 |
| Cassette | Shimano CN-M9100-12 |
| Pedals | Resin Platform |
See the table below to find the right size.
Road Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
