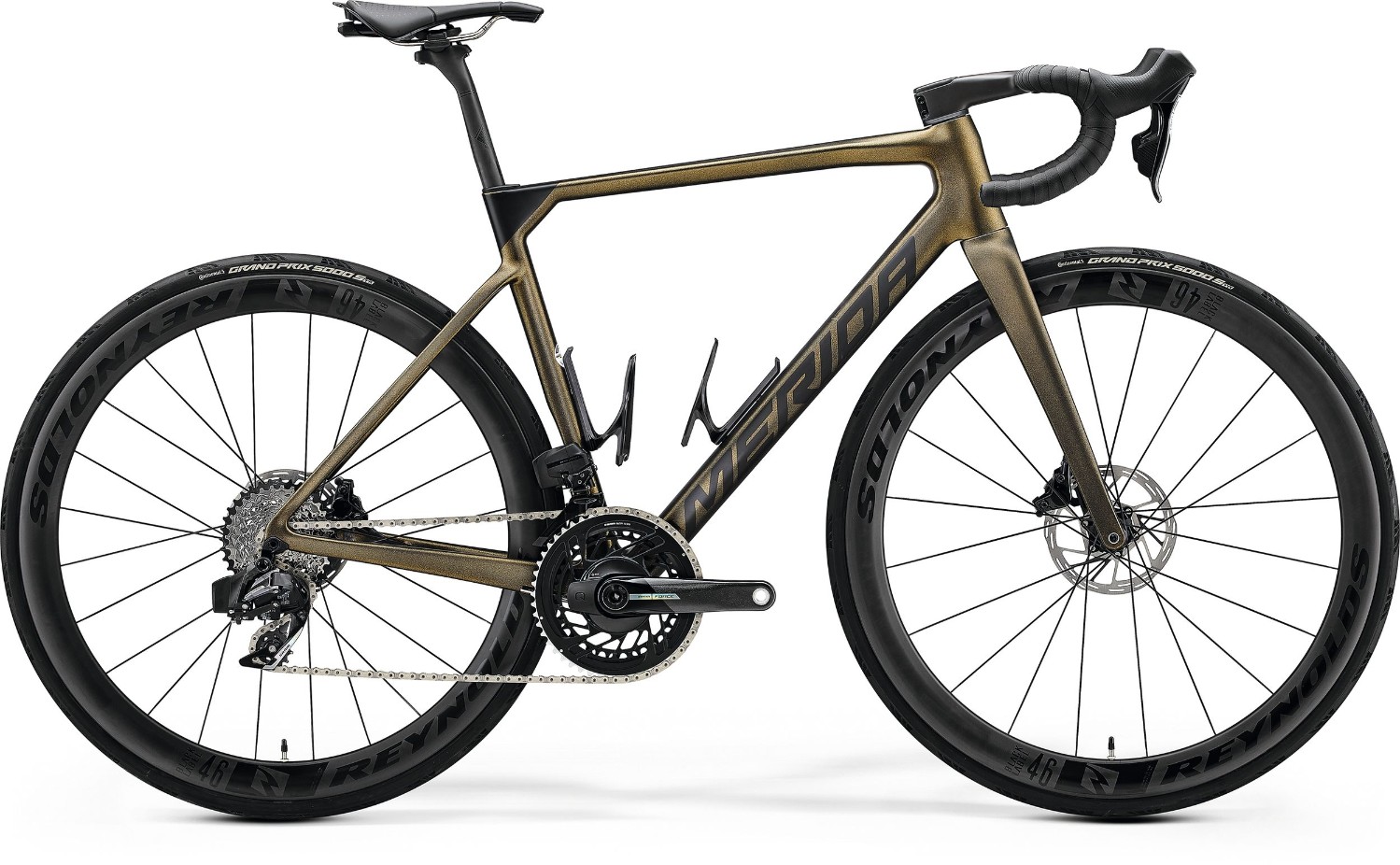

Merida Scultura 9000 2024 - Road Bike
The Scultura 9000, featuring a Cf5 carbon frame and Scultura cf5 disc fork, embodies the perfect fusion of low weight, razor-sharp handling, and aerodynamic prowess. With internal cable routing, 12mm through axles, and flat mount rear brakes, it's a race-ready machine. The SRAM Force AXS hydraulic disc brakes ensure precise stopping power, while the Reynolds BL 46 Pro DB wheelset and Continental Grand Prix 5000s TR tires provide speed and control.
Key Features:
- Frame: Cf5 carbon, race geometry, disc cooler, 12mm through axles
- Fork: Scultura cf5 disc, full carbon, disc cooler technology
- Drivetrain: SRAM Force AXS 2x12, 50-37T chainset, power meter
- Brakes: SRAM Force AXS hydraulic disc with 160mm rotors
- Wheels: Reynolds BL 46 Pro DB, carbon, tubeless-ready
- Available with 0% APR finance
Team Bahrain Victorious validated the Scultura's lightweight and agile focus. The aerodynamic advancements, including a disc cooler and race-proven geometry, make it the most aerodynamic Scultura yet. The blend of comfort and speed, showcased in grand tour victories, defines the SCULTURA 9000 as the epitome of streamlined race compliance.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | CF5 carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
Fork | Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c; Disc cooler technology |
Headset | Merida Team SL; OP-203 neck |
Stem | Team One-Piece Integrated; carbon. Length 90mm (XXS,XS), 100mm (S), 110mm (M) 120mm (L,XL) |
Bars | Team SL 1P Integrated; carbon; Width: 400mm (XXS,XS), 420mm (S,M,L), 440mm (XL) with Garmin + GoPro/Light Mount |
Front Brake | SRAM Force AXS hydraulic disc brake caliper with SRAM DB Paceline 160mm rotor |
Rear Brake | SRAM Force AXS hydraulic disc brake caliper with SRAM DB Paceline 160mm rotor |
Brake Lever | SRAM Force AXS |
Front Mech | SRAM Force AXS |
Rear Mech | SRAM Force AXS |
Shifters | SRAM Force AXS |
Speed | 24 |
Rims | Part of wheelset - Reynolds BL 46 PRO DB, 21mm inner rim width; 46mm rim depth; carbon; Tubeless ready (tubeless tape and valves included) |
Front Hub | Part of wheelset - Reynolds BL 46 PRO DB, 100x12mm; Centerlock with Merida Expert SL axle |
Rear Hub | Part of wheelset - Reynolds BL 46 PRO DB, 142x12mm; Centerlock with Merida Expert SL axle including removable 6/4mm allen key |
Spokes | part of wheelset |
Front Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
Rear Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
Seat Post | Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex |
Saddle | Prologo Scratch M5 with V-mount adapter; including Merida minitool |
Chainset | SRAM Force AXS; 50-37 tooth chainset; Power Meter. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S,M), 175mm (L,XL) |
Bottom Bracket | SRAM Pressfit Dub, Presfit 86.5 |
Chain | SRAM CN Force D1 12S |
Cassette | SRAM CS XG 1270 D1; 10-36 teeth; 12 speed |
Pedals | Resin Platform |
Merida Scultura 2024 Sizing
FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
XXS | 150 - 158 | 4'11" - 5'2" |
XS | 159 - 165 | 5'3" - 5'5" |
S | 166 - 173 | 5'5" - 5'8" |
M | 174 - 182 | 5'9" - 5'11" |
L | 183 - 189 | 6'0" - 6'2" |
XL | 190 - 200 | 6'3" - 6'7" |
Merida Scultura 2024 Geometry
FRAME SIZE | XS | S | M | L | XL |
TYRE SIZES | 28" | 28" | 28" | 28" | 28" |
SEAT TUBES (mm) | 458 | 481 | 501 | 521 | 550 |
TOP TUBES (mm) | 535 | 545 | 560 | 575 | 590 |
CHAIN STAYS (mm) | 408 | 408 | 408 | 408 | 408 |
HEAD TUBE ANGLE [°] | 72 | 72.5 | 73.5 | 73.5 | 74 |
SEAT TUBE ANGLE [°] | 74 | 74 | 73.5 | 73 | 73 |
BOTTOM BRACKET DROPS (mm) | 70 | 66 | 66 | 66 | 66 |
HEAD TUBE LENGTHS (mm) | 112 | 128 | 140 | 155 | 176 |
FORK LENGTHS (mm) | 385 | 385 | 385 | 385 | 385 |
REACH (mm) | 383 | 390 | 395 | 400 | 409 |
STACKS (mm) | 529 | 542 | 557 | 571 | 593 |
WHEEL BASE (mm) | 982 | 989 | 990 | 1000 | 1010 |
STAND OVER HEIGHT (mm) | 745 | 765 | 782 | 800 | 823 |
What size frame do I need if I am between sizes? - read here
