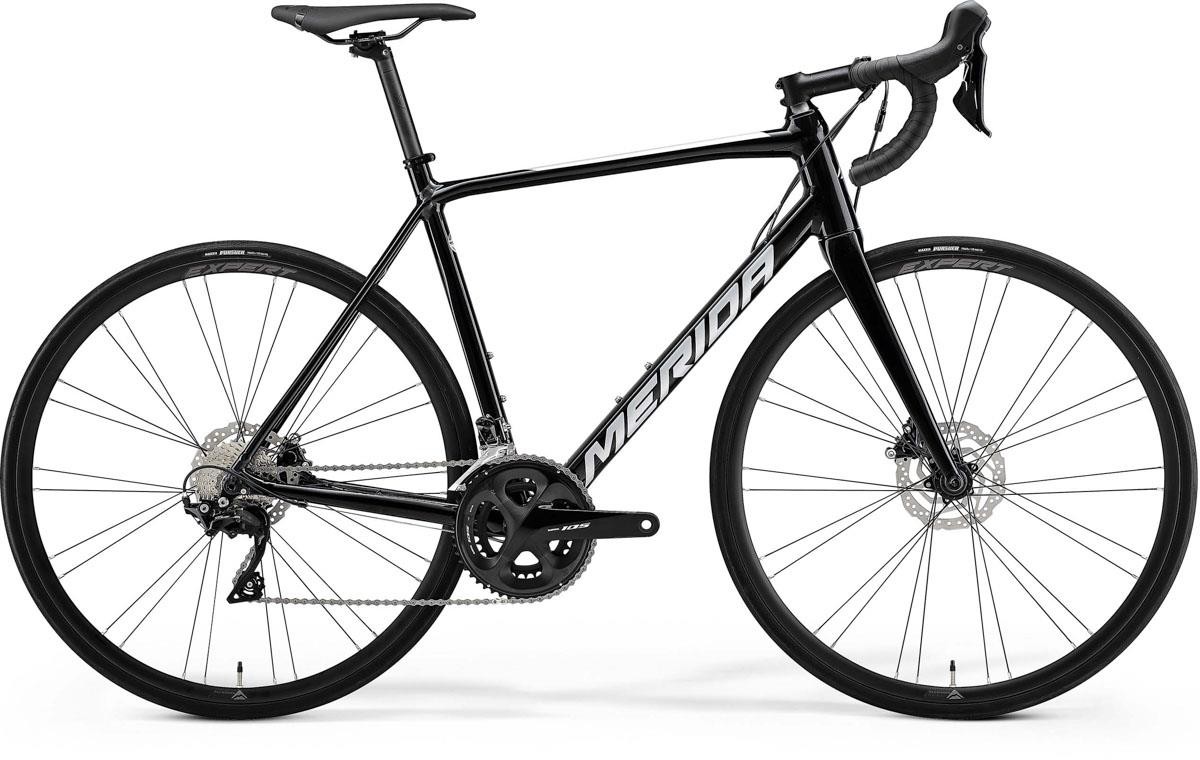

Merida Scultura Disc 400 2021 - Road Bike
Our Pro Tour proven Scultura adapted to run disc brakes. Class leading comfort and cutting-edge technology. 6066 series triple butted and hydroformed aluminium tubing with smooth welding. Tapered full carbon fork head tube for precise steering and 12mm bolt through axles for stiffness.
The Scultura 400 is equipped with a 22 speed Shimano 105 drivetrain including Shimano 105 hydraulic disc brakes.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite - 6066 series triple butted, hydroformed aluminium with smooth welding. Tapered head tube. Press-fit 86 BB and 12mm bolt through axles for stiffness. |
| Fork | Scultura CF2 Disc; carbon |
| Headset | Merida M2331 Neck |
| Stem | Merida Expert CC; 31.8mm diameter; -5 degree rise - Length : 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
| Bars | Merida Expert SL |
| Front Brake | Shimano 105; Hydraulic disc with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano 105; Hydraulic disc with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105; GS |
| Shifters | Shimano 105 disc |
| Speed | 22 |
| Rims | Merida Expert SL; 17mm inner rim width; 22mm profile |
| Front Hub | VP CLK170F; 100x12mm; 28 spokes; Centerlock |
| Rear Hub | VP CLK270R; 142x12mm; 28 spokes; Centerlock; including removable lever with 4/6mm Allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
| Rear Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
| Seat Post | Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano 105; 50-34 teeth chainwheel with 165mm - XXS, 170mm - XS/S, 172.5mm - SM/ML, 175mm - L/XL length crank |
| Bottom Bracket | SM-BB71-41B, Pressfit 86.5 |
| Chain | KMC X11 |
| Cassette | Shimano CS-R7000; 11-30 teeth; 11 speed |
| Pedals | Not Included |
Merida Scultura 2024 Sizing
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
Merida Scultura 2024 Geometry
| FRAME SIZE | XS | S | M | L | XL |
| TYRE SIZES | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBES (mm) | 458 | 481 | 501 | 521 | 550 |
| TOP TUBES (mm) | 535 | 545 | 560 | 575 | 590 |
| CHAIN STAYS (mm) | 408 | 408 | 408 | 408 | 408 |
| HEAD TUBE ANGLE [°] | 72 | 72.5 | 73.5 | 73.5 | 74 |
| SEAT TUBE ANGLE [°] | 74 | 74 | 73.5 | 73 | 73 |
| BOTTOM BRACKET DROPS (mm) | 70 | 66 | 66 | 66 | 66 |
| HEAD TUBE LENGTHS (mm) | 112 | 128 | 140 | 155 | 176 |
| FORK LENGTHS (mm) | 385 | 385 | 385 | 385 | 385 |
| REACH (mm) | 383 | 390 | 395 | 400 | 409 |
| STACKS (mm) | 529 | 542 | 557 | 571 | 593 |
| WHEEL BASE (mm) | 982 | 989 | 990 | 1000 | 1010 |
| STAND OVER HEIGHT (mm) | 745 | 765 | 782 | 800 | 823 |
What size frame do I need if I am between sizes? - read here
