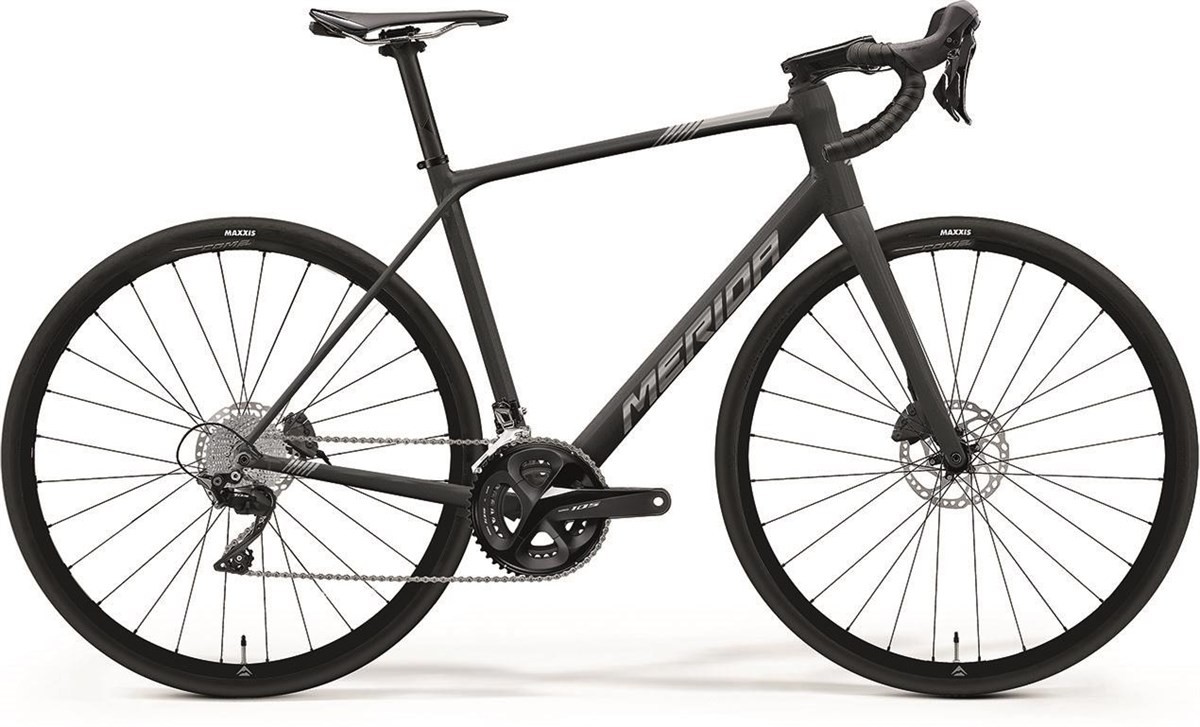

Merida Scultura Endurance 400 - Nearly New - S 2023 - Road Bike
This Scultura Endurance 400 - Nearly New - S road bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the fork leg and headtube.
Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding. The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed.
To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.
Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit.
All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite Aluminium, endurance geometry. Internal cable routing, 12mm through axles, BB86, flat mount rear brakes with Disc Cooler, 1 1/2" headtube. Max tyre - 35c, (32c with mudguards) |
| Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Max. tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | Merida 8158 Semi Integrated |
| Stem | Merida Expert CW; aluminium; 31.8mm diameter; -8 degree rise - Stem length: 80mm (XXS), 90mm (XS), 100mm (S/M), 110mm (L), 120mm (XL) |
| Bars | Merida Expert SL; aluminium; Width: 380mm(XXS),400mm (XS-S),420mm (M),440mm (L-XL) |
| Front Brake | Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano 105; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105; GS |
| Shifters | Shimano 105 disc |
| Speed | 22 |
| Rims | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | VP CLK170F; 100x12mm; 28 spokes, Center lock. With Merida Expert SL axle |
| Rear Hub | VP CLK270R; 142x12mm; 28 spokes; Center lock. With Merida Expert SL axle; including removable lever; 6/4mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Maxxis Detonator; 700 x 32c; Kevlar bead, folding; |
| Rear Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead; folding |
| Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano 105; 50-34 tooth chainset. Crank length:165mm (XXS), 170mm (XS,S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
| Chain | KMC X11 |
| Cassette | Shimano CS-HG700 11-34 teeth |
| Pedals | Resin Platform |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
