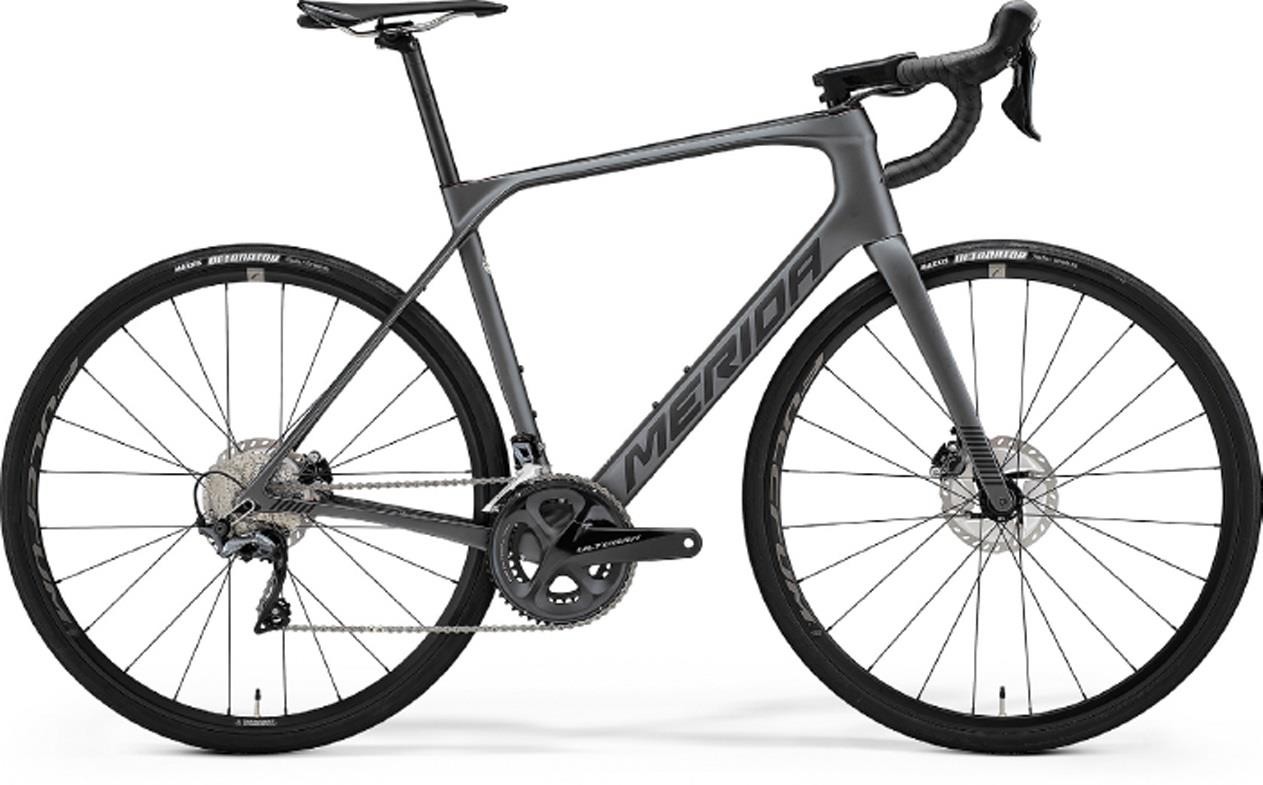

Merida Scultura Endurance 6000 2023 - Road Bike
Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.
The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed
To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.
Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.
All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max. tyre size 700 x 35c (700 x 32c with mudguard) |
| Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Max. tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | Merida-8151 Semi integrated |
| Stem | Merida Expert CW; aluminium; 31.8mm diameter; -8 degree rise - Stem length: 80mm (XXS), 90mm (XS), 100mm (S/M), 110mm (L), 120mm (XL) |
| Bars | Merida Expert SL; aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL) |
| Front Brake | Shimano Ultegra; hydraulic disc brake caliper with Shimano MT800; 160mm rotor |
| Rear Brake | Shimano Ultegra; hydraulic disc brake caliper with Shimano MT800; 160mm rotor |
| Brake Lever | Shimano Ultegra |
| Front Mech | Shimano Ultegra |
| Rear Mech | Shimano Ultegra; GS |
| Shifters | Shimano Ultegra Disc |
| Speed | 22 |
| Rims | Part of wheelset - Fulcrum Racing 700 DB; 19mm inner rim width; 22mm depth; |
| Front Hub | Part of wheelset - Fulcrum Racing 700 DB; 100x12mm; Center lock |
| Rear Hub | Part of wheelset - Fulcrum Racing 700 DB; 142x12mm; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | part of wheelset |
| Front Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead; folding |
| Rear Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead; folding |
| Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
| Saddle | Merida Expert CC; V-mount including Merida multitool |
| Chainset | Shimano Ultegra; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm - (S/M,M/L), 175mm (L/XL) |
| Bottom Bracket | Shimano SM-BB71-41B, Pressfit 86.5 |
| Chain | KMC X11 |
| Cassette | Shimano CS-HG700 11-34 teeth |
| Pedals | Resin Platform |
Merida Scultura Endurance Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
What size frame do I need if I am between sizes? - read here
