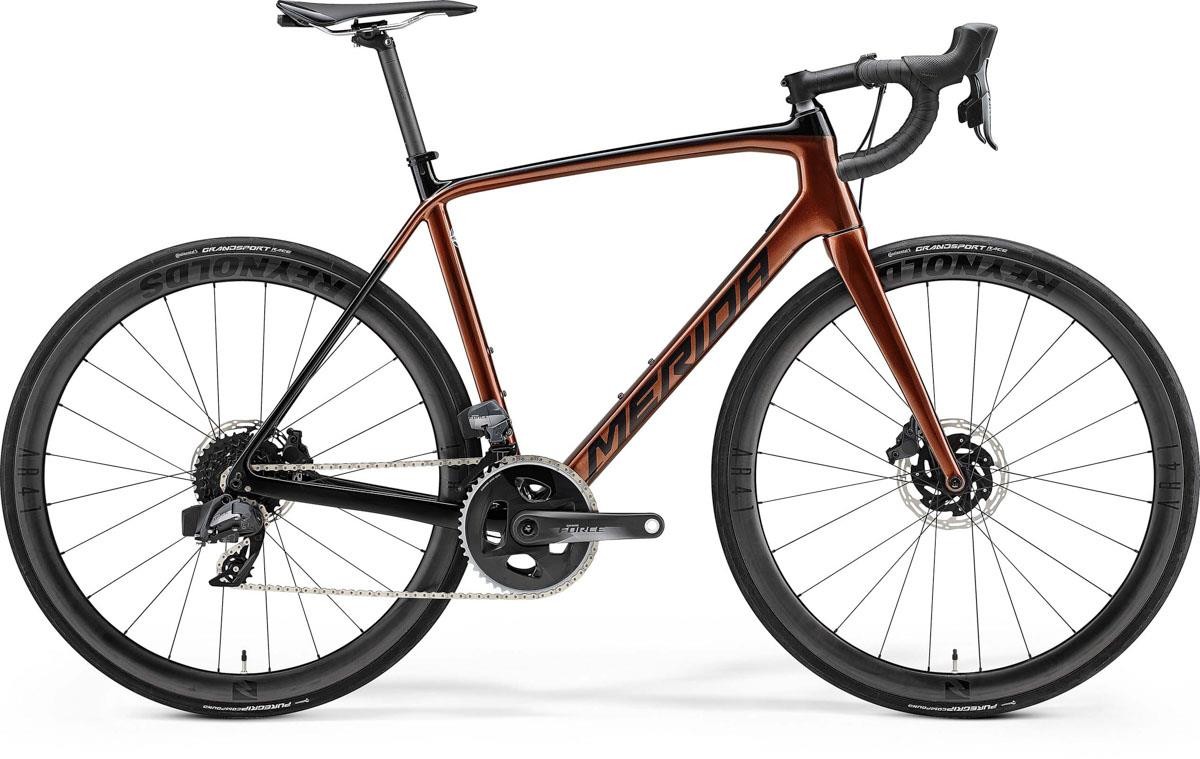

Merida Scultura Force Edition 2021 - Road Bike
The Scultura is the powerhouse of our ProTour teams powering them to world tour stage victories. This bike uses our CF2 frame which has a slightly less aggressive geometry than the pro riders use and is made of cheaper carbon fibres to keep the price down.
A real eye catcher the Force Edition is replete in bronze paint contrasting with the black of the deep section Reynolds carbon wheels. Shifting is electronic using the Sram Force eTap system.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF2 carbon - slightly more relaxed geometry and uses more economic carbon than CF4. Tapered head tube, BB386, 12mm through axles. Truncated NACA Fastback tubes for aerodynamics. Profiled seat stays reduce vibration. |
| Fork | Scultura CF2 Disc; carbon |
| Headset | Merida M2331 Neck |
| Stem | Merida Expert CC; 31.8mm diameter; -5 degree rise - Length : 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
| Bars | Merida Expert SL |
| Front Brake | Sram ED Force eTap AXS; Hydraulic disc with Sram DB CLX R centrelock 160mm rotor |
| Rear Brake | Sram ED Force eTap AXS; Hydraulic disc with Sram DDB CLX R centrelock 160mm rotor |
| Brake Lever | Sram ED Force eTap AXS |
| Front Mech | SRAM Force eTap AXS |
| Rear Mech | Sram Force eTap AXS; SS |
| Shifters | SRAM Force eTap AXS |
| Speed | 24 |
| Rims | Reynolds AR 41 DB, 21mm inner rim width; 41mm profile; Centerlock |
| Front Hub | Reynolds AR 41 DB, 100x12mm front; Centerlock |
| Rear Hub | Reynolds AR 41 DB, 142x12mm rear; Centerlock; including removable lever with 4/6mm Allen key |
| Spokes | part of wheelset |
| Front Tyre | Continental Grand Sport Race; 700 x 25C; Kevlar bead; folding |
| Rear Tyre | Continental Grand Sport Race; 700 x 25C; Kevlar bead; folding |
| Seat Post | Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon |
| Saddle | Merida Expert CC with saddlebox containing Merida Multitool |
| Chainset | Sram Force eTap AXS ; 48-35 teeth chainwheel with 165mm - XXS, 170mm - XS/S, 172.5mm - SM/ML, 175mm - L/XL length crank |
| Bottom Bracket | SRAM Pressfit Dub, Presfit 86.5 |
| Chain | SRAM FORCE |
| Cassette | Sram XG 1270 D1; 10-33 teeth; 12 speed |
| Pedals | Not Included |
Merida Scultura 2024 Sizing
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
Merida Scultura 2024 Geometry
| FRAME SIZE | XS | S | M | L | XL |
| TYRE SIZES | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBES (mm) | 458 | 481 | 501 | 521 | 550 |
| TOP TUBES (mm) | 535 | 545 | 560 | 575 | 590 |
| CHAIN STAYS (mm) | 408 | 408 | 408 | 408 | 408 |
| HEAD TUBE ANGLE [°] | 72 | 72.5 | 73.5 | 73.5 | 74 |
| SEAT TUBE ANGLE [°] | 74 | 74 | 73.5 | 73 | 73 |
| BOTTOM BRACKET DROPS (mm) | 70 | 66 | 66 | 66 | 66 |
| HEAD TUBE LENGTHS (mm) | 112 | 128 | 140 | 155 | 176 |
| FORK LENGTHS (mm) | 385 | 385 | 385 | 385 | 385 |
| REACH (mm) | 383 | 390 | 395 | 400 | 409 |
| STACKS (mm) | 529 | 542 | 557 | 571 | 593 |
| WHEEL BASE (mm) | 982 | 989 | 990 | 1000 | 1010 |
| STAND OVER HEIGHT (mm) | 745 | 765 | 782 | 800 | 823 |
What size frame do I need if I am between sizes? - read here
