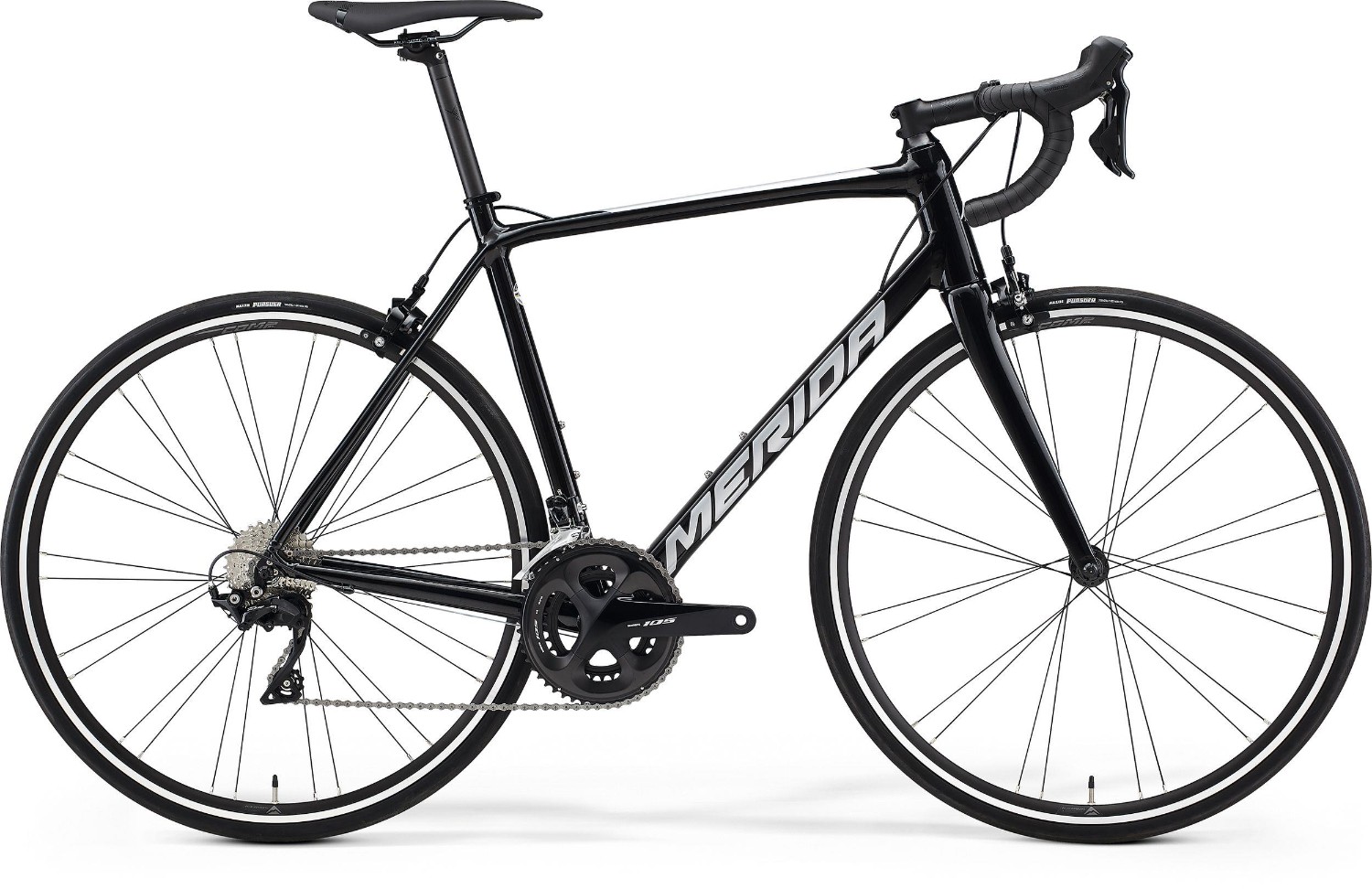

Merida Scultura Rim 400 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite BSA - 6066 triple butted and hydroformed aluminium with smooth welding. Tapered head tube. BSA BB standard, 9mm QR axle standard, Internal cable routing. Maximum tyre clearance 700 x 25c |
Fork | Scultura Rim CF2; full carbon. Tapered steerer. Max. tyre size: 700 x 25c |
Headset | Merida M2331 Neck |
Stem | Merida Expert CC; aluminium; 31.8mm diameter; -5 degree rise - Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
Bars | Merida Expert SL, aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (S/M-M/L), 440mm (L-XL) |
Front Brake | Shimano 105 calliper |
Rear Brake | Shimano 105 calliper |
Brake Lever | Shimano 105 |
Front Mech | Shimano 105 |
Rear Mech | Shimano 105; GS |
Shifters | Shimano 105 |
Speed | 22 |
Rims | Merida Comp SL; 17mm inner rim width; 24mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
Front Hub | Road sealed bearing; 100x9mm; 24 spokes; Quick Release |
Rear Hub | Road sealed bearing; 130x9mm; 28 spokes; Quick Release |
Spokes | Double Butted Black stainless |
Front Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
Rear Tyre | Maxxis Pursuer; 700 x 25C; Kevlar bead; folding |
Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
Saddle | Merida Comp SL; V-mount |
Chainset | Shimano 105; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (S/M,M/L), 175mm (L/XL) |
Bottom Bracket | Shimano BB-RS500 BSA |
Chain | KMC X11 |
Cassette | Shimano CS-R7000 11-30 teeth |
Pedals | Resin Platform |
Merida Scultura Rim 2023 Sizing
FRAME SIZE | BODY HEIGHT |
XS | 158 - 167 cm |
S | 163 - 172 cm |
S/M | 168 - 177 cm |
M/L | 173 - 182 cm |
L | 178 - 187 cm |
XL | > 183 cm |
Merida Scultura Rim Geometry
FRAME SIZE | XS | S | S/M | M/L | L | XL |
TYRE SIZES | 28" | 28" | 28" | 28" | 28" | 28" |
ST SEAT TUBES MM | 470 | 500 | 520 | 540 | 560 | 590 |
TT TOP TUBES MM | 520 | 530 | 545 | 560 | 575 | 590 |
CS CHAIN STAYS MM | 408 | 408 | 408 | 408 | 408 | 408 |
HTA HEAD TUBE ANGLE [°] | 71 | 72 | 73 | 73 | 73 | 73.5 |
STA SEAT TUBE ANGLE [°] | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
BD BOTTOM BRACKET DROPS MM | 66 | 66 | 66 | 66 | 66 | 66 |
HT HEAD TUBE LENGTHS MM | 130 | 140 | 150 | 170 | 190 | 215 |
FL FORK LENGTHS MM | 375 | 375 | 375 | 375 | 375 | 375 |
R REACH MM | 373 | 375 | 386 | 390 | 394 | 401 |
S STACKS MM | 529 | 542 | 555 | 574 | 593 | 619 |
WB WHEEL BASE MM | 983 | 979 | 985 | 995 | 1005 | 1014 |
SH STAND OVER HEIGHT MM | 720 | 744 | 762 | 779 | 798 | 826 |
What size frame do I need if I am between sizes? - read here
