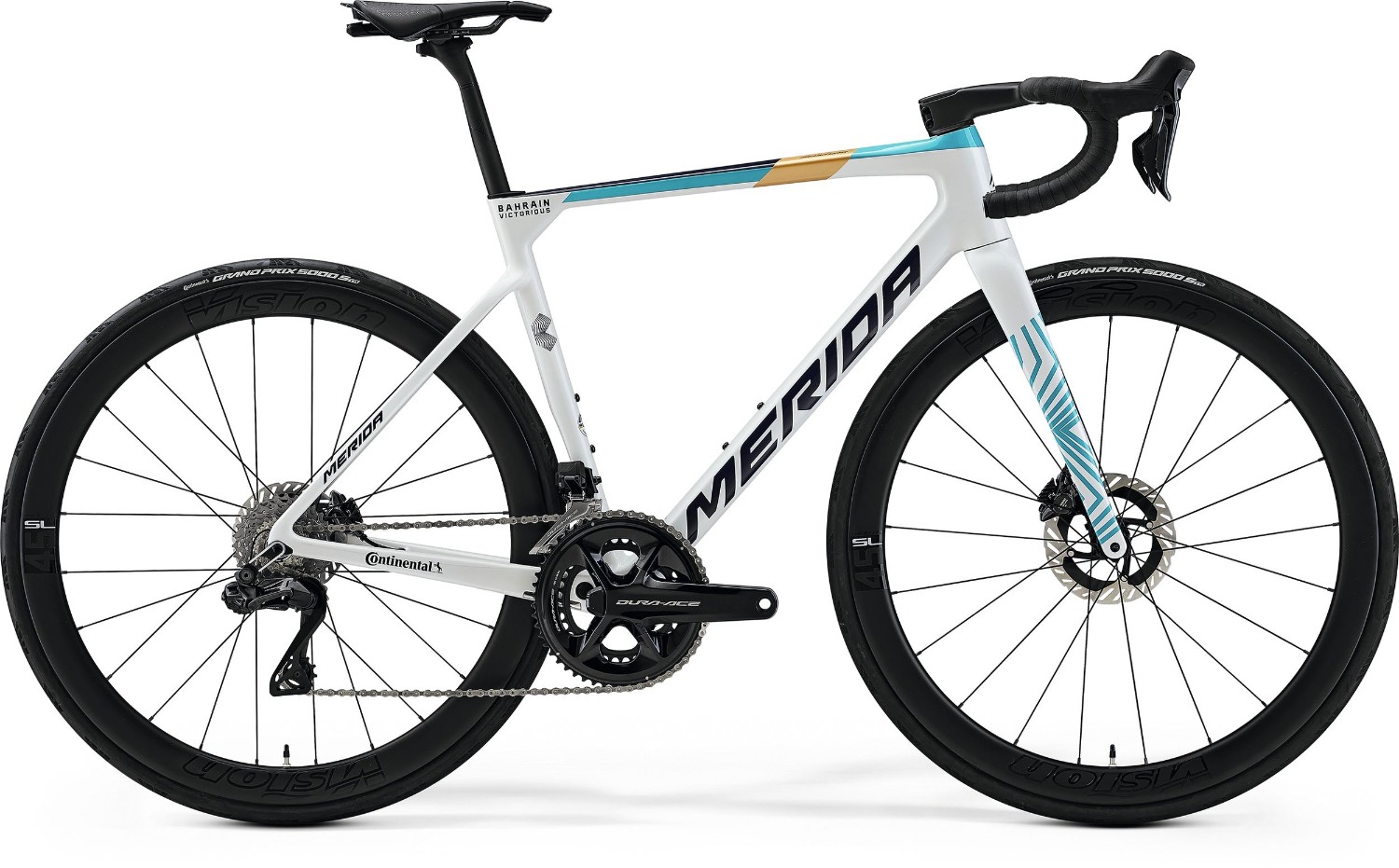

Merida Scultura Team 2025 - Road Bike
The Merida Scultura Team is designed for elite performance, blending lightweight a lightweight frame with aerodynamic efficiency and supreme comfort. It’s perfect for competitive riders aiming for top podium spots.
Key Features:
- Frame: CF5 carbon; premium fibres; race geometry; internal cable routing
- Fork: Scultura CF5 disc; full carbon
- Drivetrain: Shimano Dura-Ace Di2; 12-speed
- Brakes: Shimano Dura-Ace hydraulic disc; CL900 rotors
- Wheels: Vision Metron 45 SL; Continental Grand Prix 5000s TR tyres
- Other Stand Out Feature: Integrated one-piece carbon handlebar and stem
- Finance: Available with 0% APR finance
Tested by Team Bahrain Victorious to dominate mountain stages in the Tour de France and Vuelta a España, the fifth-generation Scultura retains its legendary lightweight build, agility, and comfort, with enhancements in aerodynamics inspired by the Reacto. This model excels in keeping you fresh for the final push, offering exceptional compliance and rider comfort, as proven in grand tour stage victories.
The CF5 carbon frame and fork are crafted for optimal performance, with internal cable routing and flat mount disc brakes ensuring a sleek profile. Equipped with Shimano Dura-Ace Di2 components, the Scultura Team offers precise shifting and powerful braking. The Vision Metron 45 SL wheels, paired with Continental Grand Prix 5000s TR tyres, provide exceptional speed and grip.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | CF5 carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
Fork | Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c; Disc cooler technology |
Headset | Merida Team SL; OP-203 neck |
Stem | Team One-Piece Integrated; carbon. Length 90mm (XXS,XS), 100mm (S), 110mm (M) 120mm (L,XL) |
Bars | Team SL 1P Integrated; carbon; Width: 400mm (XXS,XS), 420mm (S,M,L), 440mm (XL) with Garmin + GoPro/Light Mount |
Front Brake | Shimano Dura Ace hydraulic disc brake caliper with Shimano CL900 160mm rotor |
Rear Brake | Shimano Dura Ace hydraulic disc brake caliper with Shimano CL900 140mm rotor |
Brake Lever | Shimano Dura Ace disc |
Front Mech | SHIMANO Dura Ace Di2 |
Rear Mech | Shimano Dura Ace Di2 |
Shifters | Shimano Dura Ace disc Di2 |
Speed | 24 |
Rims | Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 18mm inner rim width; 45mm rim depth; carbon; Tubeless ready (tubeless tape and valves included) |
Front Hub | Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 100x12mm; Centerlock with Merida Expert SL axle |
Rear Hub | Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 142x12mm; Centerlock with Merida Expert SL axle including removable 6/4mm allen key |
Spokes | part of wheelset |
Front Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
Rear Tyre | Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready |
Seat Post | Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex |
Saddle | Prologo Scratch M5 with V-mount adapter; including Merida minitool |
Chainset | Shimano Dura Ace; 52-36 tooth chainset; Power Meter. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S,M), 175mm (L,XL) |
Bottom Bracket | Shimano BB92-41B, Pressfit 86.5 |
Chain | Shimano CN-M9100-12 |
Cassette | Shimano CS-R9200; 11-30 teeth; 12 speed |
Pedals | Not Included |
Merida Road Bike Size Chart
frame size |
Height cm |
Height Feet / Inches |
5XS– (38cm) |
< 152 cm |
<4’11” |
4XS – (41cm) |
148 - 157 cm |
4’10” – 5’2” |
3XS- (44cm) |
153 - 162 cm |
5’0” – 5’4” |
XXS – (47cm) |
158 - 167 cm |
5’2” – 5’7” |
XS – (50cm) |
163 - 172 cm |
5’4” – 5’8” |
S - (52cm) |
168 - 177 cm |
5’6” – 5’10” |
M – (54cm) |
173 - 182 cm |
5’8” – 6’0” |
L-(56cm) |
178 - 187 cm |
5’10” – 6’2” |
XL- (59cm) |
> 183 cm |
>6’2” |
What size frame do I need if I am between sizes? - read here
