(1)Product ID: 267630

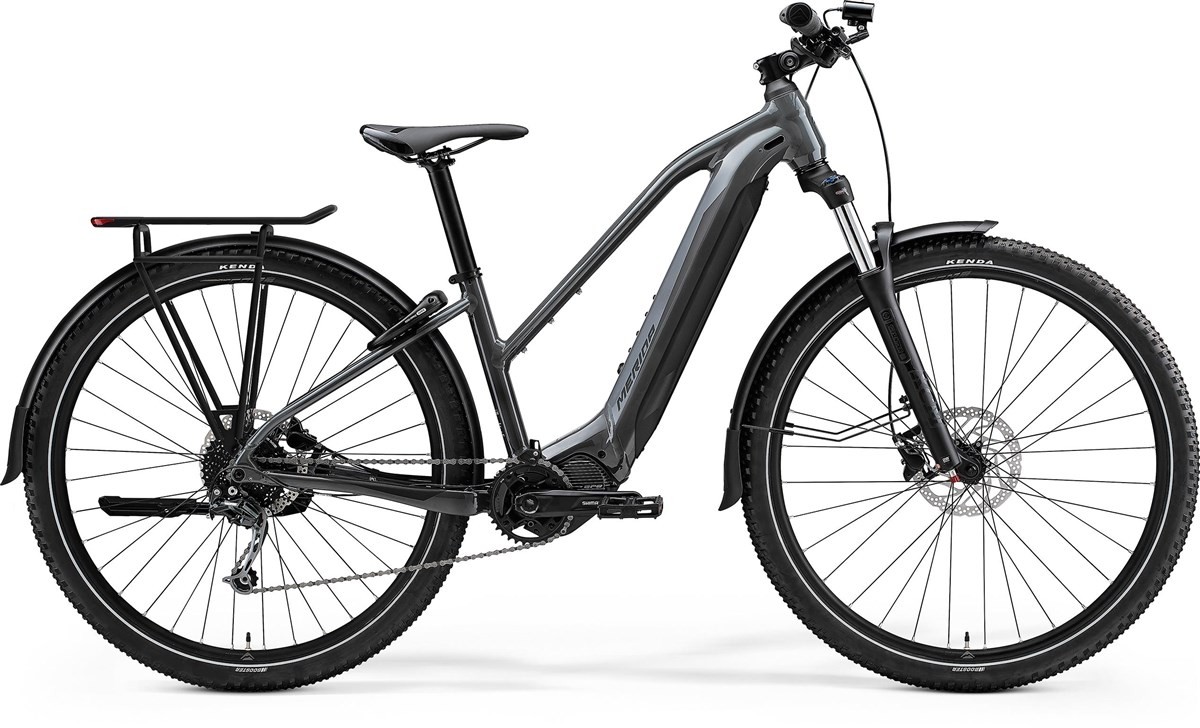

Merida eBig Tour 400 EQ - Nearly New – M 2023 - Electric Mountain Bike
This eBig Tour 400 EQ electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the fork, stem, kickstand and has non standard light bracket and handlebars fitted.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Hydroformed 6066 aluminium, intergrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without |
| Fork | Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.4" |
| Headset | Merida-8155 |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (all sizes) |
| Bars | Merida Expert CC; aluminium; 720mm wide; 10mm rise |
| Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| Rear Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| Brake Lever | Shimano MT-200 |
| Rear Mech | Shimano Deore RDM5120; SGS |
| Shifters | Shimano Deore M4100 |
| Speed | 10 |
| Rims | Merida Comp CC; 20mm inner rim width; Aluminium |
| Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Kenda Booster; 29" x 2.2"; wire bead |
| Rear Tyre | Kenda Booster; 29" x 2.2"; wire bead |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Saddle | Merida Expert TK; V-mount |
| Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC E10S |
| Cassette | Shimano M4100 11-46 teeth |
| Pedals | VP Components, VPE-537 |
| Battery Size (WH) | 630 Wh |
| Motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
| User Interface | Shimano SC-E5003A |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
