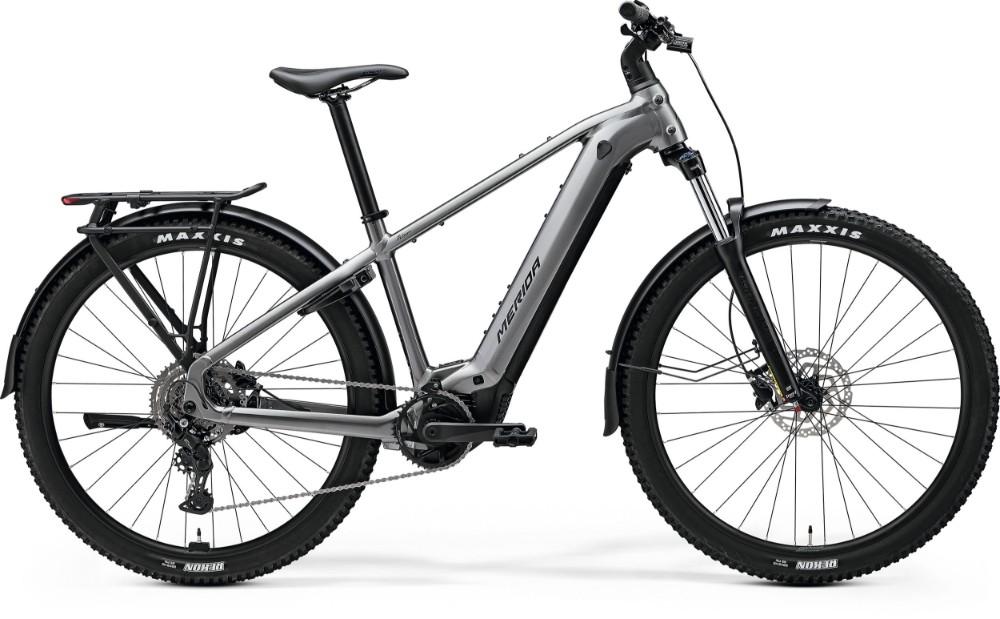

Merida eFloat CC 400 EQ 2026 - Electric Hybrid Bike
A versatile e-bike designed for everyday riding and weekend adventures. With a Bosch CX motor, 600 Wh battery, 120 mm fork and wide 29x2.4" tyres, it delivers stable handling and smooth assistance on roads, lanes and forest tracks.
Key Features:
- Aluminium Lite II frame with stable, upright geometry
- SR Suntour XCM34 LO-R fork with 120 mm travel
- Shimano Cues U4000 9-speed drivetrain
- Shimano MT-200 hydraulic brakes
- 29" wheels with 2.4" Maxxis Metropass AT tyres
- Blocklock headset for added frame protection
- Available with 0% APR finance
Drive Information:
- Bosch Performance Line CX motor, 85 Nm
- 600 Wh internal battery
- Bosch Purion 200 display and remote
The eFloat CC 400 EQ is built to handle a wide range of day-to-day riding. Its Lite II aluminium frame houses the 600 Wh battery neatly inside the downtube, keeping the weight centred for better balance. With clearance for 29x2.4" tyres even with mudguards fitted, it feels steady and confident whether you’re crossing the city or heading along gravel paths. The Blocklock headset helps protect the frame by preventing the bars from turning too far during tight manoeuvres or parking.
A 120 mm SR Suntour XCM34 LO-R coil fork adds comfort over uneven ground, helping smooth out potholes, kerbs and rougher tracks. Shimano’s Cues U4000 9-speed drivetrain offers dependable shifting with a wide 11–46T cassette, making it easier to manage steeper hills, especially when combined with the Bosch assistance.
The Bosch Performance Line CX motor delivers strong, natural-feeling power with up to 85 Nm of torque, helping you tackle climbs and headwinds without strain. Paired with the large 600 Wh battery, it supports longer rides between charges. The compact Purion 200 display provides simple, clear ride information and easy control of assistance modes.
Braking comes from Shimano MT-200 hydraulic brakes with 180 mm rotors front and rear for reliable stopping in busy traffic or off-road environments. The 29" Merida Comp TR II wheels and Maxxis Metropass AT tyres offer a smooth yet grippy ride on mixed surfaces, while the Merida Expert finishing kit delivers durability for everyday use.
Practical, comfortable and ready for varied terrain, the Merida eFloat CC 400 EQ is well suited to riders who want reliable support for commuting, leisure riding and gentle off-road exploring.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II ; aluminium; max. tyre size 29 x 2.4" with fender; 148x12 axle standard; intube battery |
| Fork | SR Suntour XCM34 LO-R; Coil; 120mm travel |
| Headset | Acros ICR Merida integrated neck w/ Blocklock |
| Stem | Merida Expert TK III; material: aluminium; 31.8mm diameter;; length: (S-M) - 70mm, (L-XL) - 90mm |
| Bars | Merida Expert CC; material: aluminium; 720mm wide; 10mm rise |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Mech | Shimano Cues U4000; GS |
| Shifters | Rear: Shimano Cues U4000-9 |
| Speed | 9 |
| Rims | Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included); 29" |
| Front Hub | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 12x148mm; 32 spoke; Centerlock |
| Spokes | Black stainless ; black nipples |
| Front Tyre | Maxxis Metropass AT; 29x2.4"; wired |
| Rear Tyre | Maxxis Metropass AT; 29x2.4"; wired |
| Seat Post | Merida Expert CC; material: aluminium; 34.9mm diameter; in-line |
| Saddle | Merida Expert TK II; V-mount |
| Chainset | FSA Direct Mount Steel Chainring; 38 tooth chainset; Crank: FSA CK-220 wide E-Bike Forged Crankset; 165mm |
| Chain | Shimano LG500 |
| Cassette | Shimano LG400-9; 11-46 teeth; 9 speed |
| Pedals | VP VPE-891 |
| Battery Size (WH) | 600wh |
| Motor | Bosch Performance Line CX |
| User Interface | Bosch Purion 200 |
Merida eFloat Size Chart
| FRAME SIZE | Height (cm) | Height (feet) |
|---|---|---|
| XS | < 160 cm | < 5'3" |
| S | 155 - 170 cm | 5'1" - 5'7" |
| M | 161 - 180 cm | 5'3" - 5'11" |
| L | 171 - 190 cm | 5'7" - 6'3" |
| XL | > 185 cm | > 6'1" |
What size frame do I need if I am between sizes? - read here
