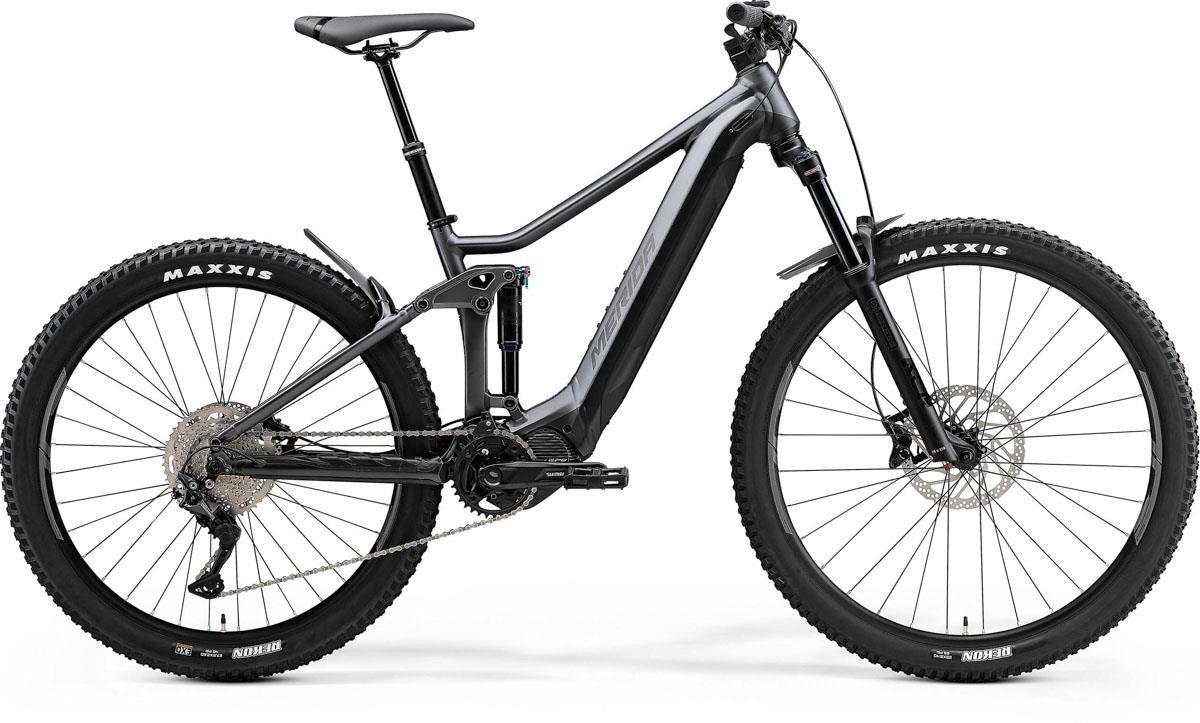

Merida eOne-Forty 400 2021 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite III - Hydroformed 6066 series triple butted aluminium with intergrated battery. Internal cable routing via Smart entry for rattle free running. Aggressive trail geometry due to the small Shimano motor allowing for use of short chainstays. |
Fork | Suntour XCR34 LOR DS; Air Boost; 140mm; Tapered; 51mm fork offset |
Rear Shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
Headset | Merida-8152 |
Stem | Merida Expert eTRII; Material: aluminium; 35mm diameter; 0 degree rise; 50mm all sizes |
Bars | Merida Expert eTR; 780mm wide; 20mm rise |
Front Brake | Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor |
Rear Brake | Shimano M4100; 2 piston with Shimano RTEM300; 180mm rotor |
Brake Lever | Shimano M4100 |
Rear Mech | Shimano Deore RDM5120 10 |
Shifters | Shimano Deore M4100 |
Speed | 10 |
Rims | Merida Comp TR; 29mm inner rim width; Material: aluminium |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key |
Spokes | Black stainless |
Front Tyre | Maxxis Rekon; 29" x 2.4"; wire bead |
Rear Tyre | Maxxis Rekon; 27.5" x 2.6"; EXO wire bead |
Seat Post | Merida Comp TR; 30.9mm diameter; in-line; S 100mm drop - M/L 125mm drop - XL/XXL 150mm drop with Shimano SL -MT500-IL lever |
Saddle | Merida Comp CC; V-mount |
Chainset | Shimano CRE70-B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank |
Bottom Bracket | Part of Shimano Steps motor |
Chain | Shimano CN-HG54 |
Cassette | Shimano M4100; 11-46 teeth; 10 speed |
Pedals | VP Components, VPE-537 |
Battery Size (WH) | Shimano SC-E5003 630 Wh |
Motor | Shimano EP8; 85Nm motor with Shimano E8036; 630Wh battery |
User Interface | Shimano SC-E5003 |
Merida eOne-Forty Size Chart
Size |
Height cm |
Height feet & Inches |
S (41cm) |
157 – 166 |
5’1” – 5’5” |
M (42cm) |
166 -173 |
5’5” – 5’8” |
L (43cm) |
173 - 180 |
5’8” – 5’11” |
XL (45cm) |
180 - 186 |
5’11” – 6’1” |
XXL (47cm) |
186 - 198 |
6’1” – 6’6” |
Merida eOne-Forty Geometry
Frame Size |
S |
M |
L |
XL |
XXL |
Tire Sizes |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
Frame Size cm |
41 |
42 |
43 |
45 |
47 |
St Seat Tube mm |
405 |
415 |
430 |
450 |
470 |
Top Tube mm |
561 |
581 |
603 |
624 |
645 |
Chain Stay Length mm |
439.5 |
439.5 |
439.5 |
439.5 |
439.5 |
Head Tube Angle |
66.5° |
66.5° |
66.5° |
66.5° |
66.5° |
Seat Tube Angle |
76.5° |
76.5° |
76.5° |
76.5° |
76.5° |
Bottom Bracket Drop mm |
25 |
25 |
25 |
25 |
25 |
Head Tube mm |
110 |
115 |
120 |
125 |
130 |
Fork Length mm |
551 |
551 |
551 |
551 |
551 |
Reach mm |
410 |
430 |
450 |
469 |
489 |
S Stack mm |
622 |
627 |
631 |
635 |
640 |
Wheelbase mm |
1160 |
1182 |
1204 |
1226 |
1248 |
Stand Over Height mm |
729 |
730 |
727 |
733 |
747 |
What size frame do I need if I am between sizes? - read here
