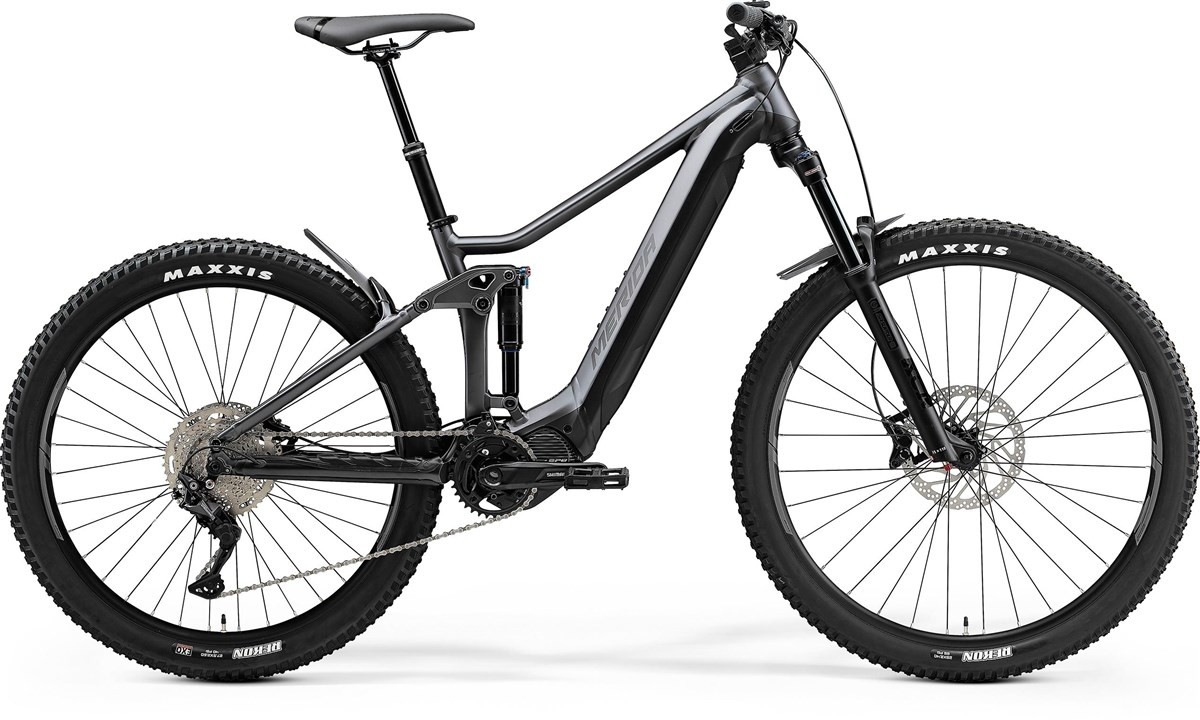

Merida eOne-Forty 400 - Nearly New - XL 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
Fork | Suntour XCR34 LOR DS; Air; Boost; 140mm; Tapered; 51mm fork offset; Max. tyre size: 29" x 2.4" |
Rear Shock | Suntour RS-Edge-TR-LO-R8-M6; lockout |
Headset | Merida-8152 |
Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point. |
Bars | Merida Expert eTR; 780mm wide; 20mm rise |
Front Brake | Shimano M42040; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor |
Rear Brake | Shimano M4100; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180 mm rotor |
Brake Lever | Shimano M4100 |
Rear Mech | Shimano Deore RDM5120 10 |
Shifters | Shimano Deore M4100 with Shimano SL -MT500-IL lever |
Speed | 10 |
Rims | Merida Comp TR; 29mm inner rim width; Aluminium |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
Spokes | Black stainless |
Front Tyre | Maxxis Rekon; 29" x 2.4"; Dual; wire bead |
Rear Tyre | Maxxis Rekon; 27.5" x 2.6"; EXO; wire bead |
Seat Post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M/L), 150mm (XL/XXL) |
Saddle | Merida Comp SL; V-mount |
Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
Bottom Bracket | Part of Shimano Steps motor |
Chain | KMC E10S |
Cassette | Shimano M4100 11-46 teeth |
Pedals | VP Components, VPE-537 |
Battery Size (WH) | 630 Wh |
Motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
User Interface | Shimano SC-E5003A |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida eOne-Forty 400 - Nearly New - XL 2023 - Electric Mountain Bike.
This product is no longer available.
