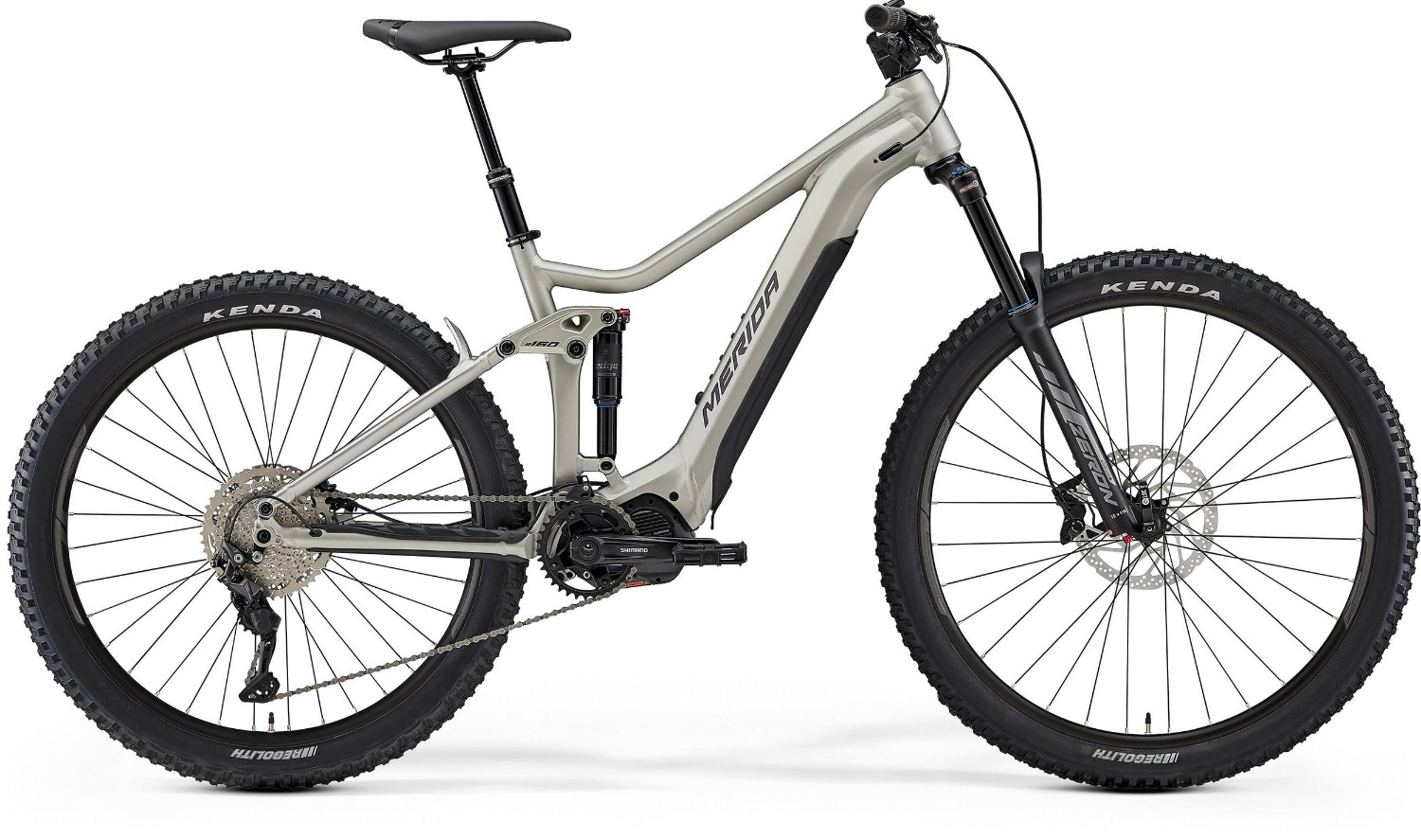

Merida eOne-Sixty 300 2021 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite III - Hydroformed 6066 series triple butted aluminium tubing with intergrated battery technology and internal cable routing via Smart entry ports for rattle free running. Aggressive enduro geometry delivers 150mm of rear wheel travel. |
Fork | Suntour Zeron 35-Boost LOR; Air; 160mm travel; Tapered; 51mm fork offset |
Rear Shock | Suntour RS Edge R |
Headset | Merida-8152 |
Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length : 40 mm all sizes |
Bars | Merida Expert eTR; 780mm wide; 20mm rise |
Front Brake | Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor |
Rear Brake | Shimano M4100; 2 piston hydraulic disc brake with Shimano RTEM300; 180mm rotor |
Rear Mech | Shimano Deore RDM5120 10 |
Shifters | Shimano Deore M4100-RC1 clamp band 10 |
Speed | 10 |
Rims | Merida Comp TR; 29mm inner rim width; Material: aluminium |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Centerlock |
Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key |
Spokes | Black stainless |
Front Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
Rear Tyre | Kenda Regolith; 27.5" x 2.6"; wire bead |
Seat Post | Merida Comp TR; 30.9mm diameter; in-line; XS 100mm drop - S/M 125mm drop - L/XL 150mm drop with Shimano SL -MT500-IL lever |
Saddle | Merida Comp CC; V-mount |
Chainset | Shimano CRE70-B; 34 teeth chainwheel with Shimano FC-E8000; 165mm length crank |
Bottom Bracket | Part of Shimano Steps motor |
Chain | Shimano CN-HG54 |
Cassette | Shimano M4100; 11-46 teeth; 10 speed |
Pedals | VP Components, VPE-537 |
Battery Size (WH) | 504 Wh |
Motor | Shimano E7000; 60Nm motor with Shimano E8035; 504Wh battery |
User Interface | Shimano SC-E5000 |
Merida eOne-Sixty 2021 Size Chart
Size |
Height cm |
Height feet & Inches |
XS (41cm) |
157 – 165 |
5’1” – 5’5” |
S (42cm) |
165 -171 |
5’5” – 5’7” |
M (44cm) |
171 - 179 |
5’7” – 5’11” |
L (47cm) |
179 - 187 |
5’11” – 6’2” |
XL (50cm) |
187 - 198 |
6’2” – 6’6” |
Merida eOne-Sixty 2021 Geometry
Frame Size |
XS |
S |
M |
L |
XL |
Tire Sizes |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
Frame Size cm |
41 |
42 |
44 |
47 |
50 |
St Seat Tube mm |
405 |
420 |
440 |
470 |
500 |
Top Tube mm |
563 |
584 |
605 |
629 |
652 |
Chain Stay Length mm |
439.5 |
439.5 |
439.5 |
439.5 |
439.5 |
Head Tube Angle |
65.5 |
65.5 |
65.5 |
65.5 |
65.5 |
Seat Tube Angle |
75.5 |
75.5 |
75.5 |
75.5 |
75.5 |
Bottom Bracket Drop mm |
17.05.20 |
17.5 |
17.5 |
17.5 |
17.5 |
Head Tube mm |
110 |
115 |
120 |
135 |
150 |
Fork Length mm |
571 |
571 |
571 |
571 |
571 |
Reach mm |
400 |
420 |
440 |
460 |
480 |
S Stack mm |
628.5 |
633 |
637.5 |
651.5 |
665 |
Wheelbase mm |
1168 |
1190 |
1212 |
1238.5 |
1265 |
Stand Over Height mm |
742 |
737 |
733 |
740 |
754 |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida eOne-Sixty 300 2021 - Electric Mountain Bike.
This product is no longer available.
