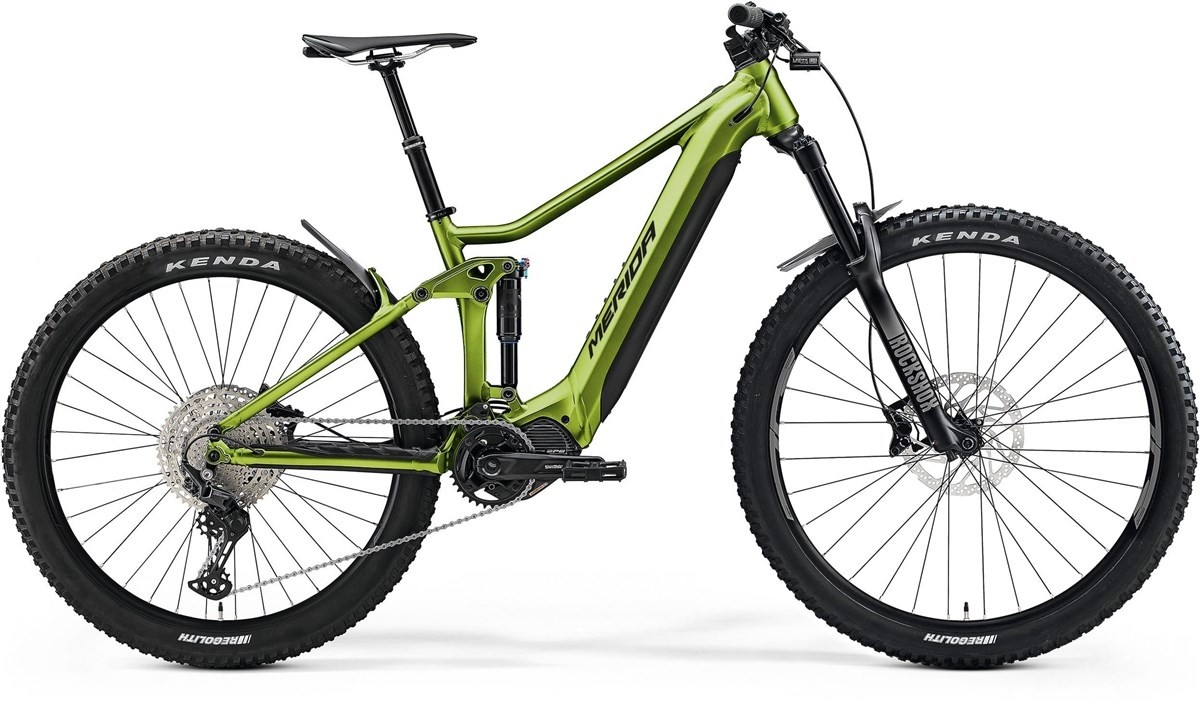

Merida eOne-Sixty 500 - Nearly New - XL 2023 - Electric Mountain Bike
The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry. To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Please note: The Shimano sc-e5003a unit on this bike requires a hardwired connection to the e-tube app as it's not Bluetooth enabled
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
Fork | RockShox 35 Gold RL; Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.8" |
Rear Shock | RockShox Deluxe Select+; platform |
Headset | Merida-8152 |
Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
Bars | Merida Expert eTR; 780mm wide; 20mm rise |
Front Brake | Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor |
Rear Brake | Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RTEM300; 203 mm rotor |
Brake Lever | Shimano M4204 |
Rear Mech | Shimano Deore RDM5100 11 |
Shifters | Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever |
Speed | 11 |
Rims | Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included) |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
Rear Hub | Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
Spokes | Black stainless |
Front Tyre | Kenda Regolith; 29" x 2.4"; wire bead |
Rear Tyre | Kenda Regolith; 27.5" x 2.6"; wire bead |
Seat Post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (XS/S), 125mm (M/L), 150mm (XL) |
Saddle | Merida Comp SL; V-mount |
Chainset | Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
Bottom Bracket | Part of Shimano Steps motor |
Chain | KMC e11S EPT |
Cassette | Shimano M5100 11-51 teeth |
Pedals | VP Components, VPE-537 |
Battery Size (WH) | 630 Wh |
Motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
User Interface | Shimano SC-E5003A |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida eOne-Sixty 500 - Nearly New - XL 2023 - Electric Mountain Bike.
This product is no longer available.
