(no reviews)Product ID: 264410

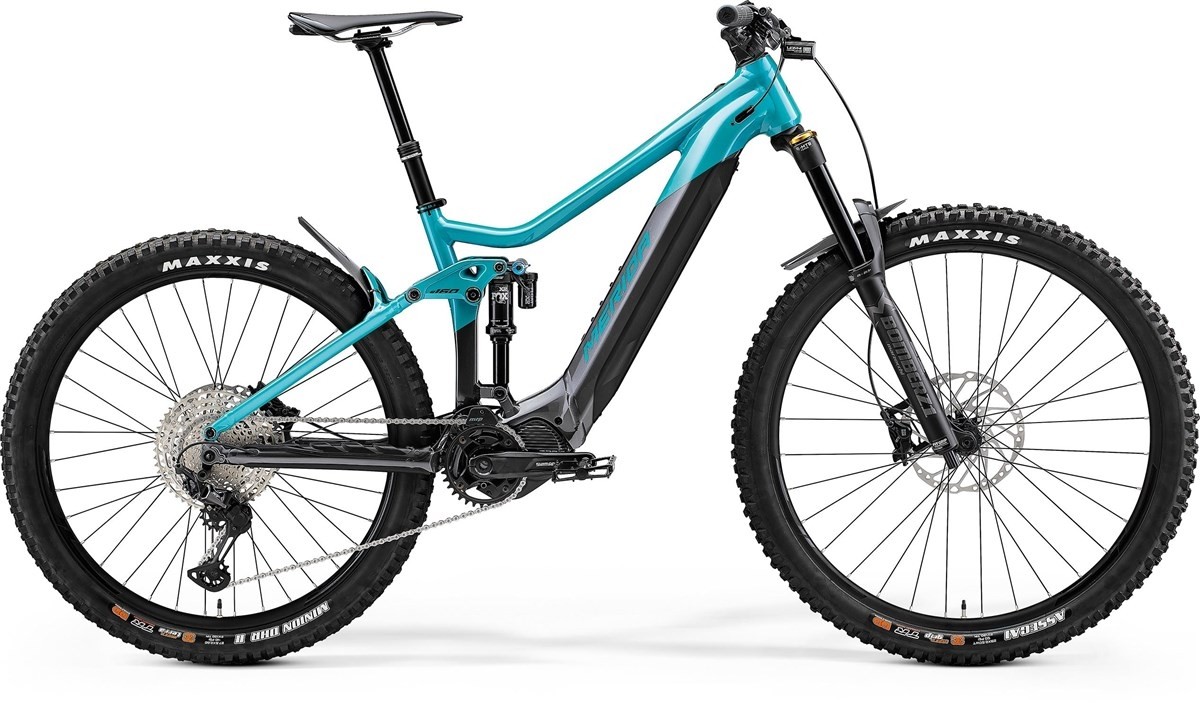

Merida eOne-Sixty 700 - Nearly New - M 2023 - Electric Mountain Bike
This eOne-Sixty 700 - Nearly New - M electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the frame, seat stay, axle lever, fork and handlebar.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry. To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry. To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Fork | Marzocchi Z1 Ebike+; Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6" |
| Rear Shock | Fox Float DPX2 Performance; platform |
| Headset | Merida-8152 |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor |
| Rear Brake | Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor |
| Brake Lever | Shimano SLX |
| Rear Mech | Shimano XT RDM8100 Shadow+ 12 |
| Shifters | Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever |
| Speed | 12 |
| Rims | Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano SLX; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Seat Post | Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M/L), 170mm (XL) |
| Saddle | Merida Expert CC; V-mount including Merida multitool |
| Chainset | Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e12T EPT |
| Cassette | Shimano M6100 10-51 teet |
| Pedals | VP Components, VPE-527 |
| Battery Size (WH) | 630 Wh |
| Motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
| User Interface | Shimano SC-E7000 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
