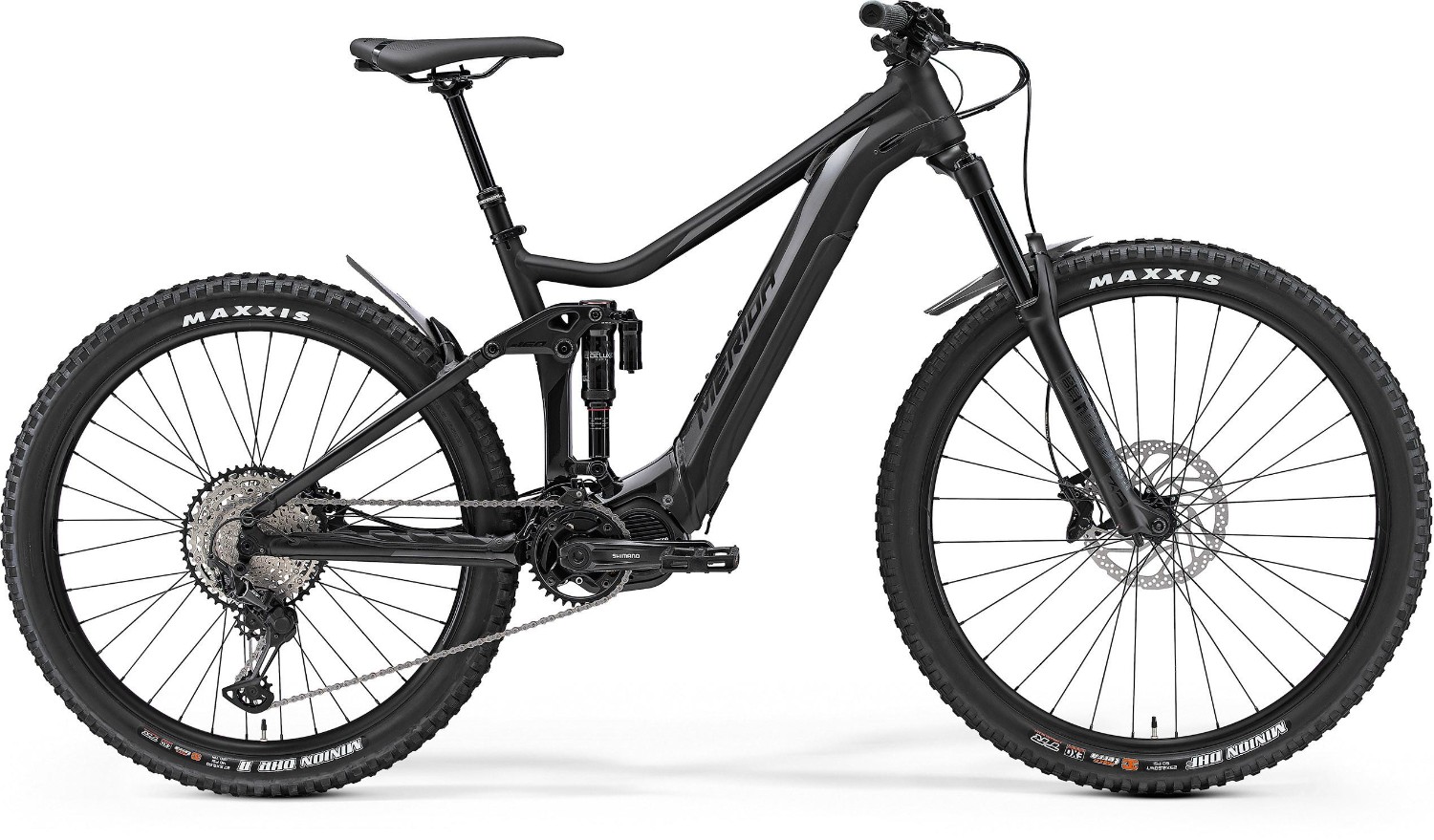

Merida eOne-Sixty Limited Edition 2020 - Electric Mountain Bike
The 'original' In 2019 we launched the new carbon eOne-Sixty and eOne-Forty with integrated batteries. Their cutting edge design plus Merida’s renowned attention to detail, made them an immediate hit the world over.
Now we bring you Limited Editions of the popular eOne-Sixty and eOne-Forty with integrated batteries and an all aluminium frame.
Our eOne-Forty and eOne-Sixty share the same frame but have different ride characteristics. The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm.
The shorter 140mm fork extends the reach in comparison to the eOne-Sixty. We believe a bike with less travel should be more agile and playful, the reach has a significant influence on that.
The new eOne Sixty is perfect for e-enduro riding. Its engine will assist you to the top of the hill and it feels like a normal bike when descending the most demanding of trails. It’s very agile and great fun as a result of its perfectly tuned MTB geometry.
Key Features:
Modern Frame
- Updated geometry, optimised for 29"/27.5"
- Hydroformed Prolite 66 triple butted aluminium frame
Silent
- Due to specially designed chainstay protector
- Two-component battery cover
- ‘Smart Entry’ cable clamping system for rattle free routing
0.75l water bottle fits into all frame sizes
- In size L and XL even bigger bottles are possible
Riding performance
- 29" front/27.5" rear wheel
- Precise steering
- Strongest rear triangle we have ever made
- Progressive leverage ratio
Shimano e-bike system
- Powerful performance motor
- Satellite on/off switch
- Woldwide service partner
Outstanding frame protection
- Chain and seat stays, backside of the seat tube and down tube are protected
- Always comes with mini fenders
- Optimised for 165mm cranks
- Tested to 140kg system weight (bike + rider)
- Internal block (Protects the down tube from the rotating fork)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium front triangle with easily removable integrated battery, satellite on/off switch, on-bike charging port and Smart Entry cable routing |
| Fork | Rock Shox 35 Gold RL; Air; 160 STR; Tapered; 51mm fork offset |
| Rear Shock | Rock Shox Super Deluxe Select+; platform |
| Headset | Merida 1901 |
| Stem | Merida Expert eTR; 35 mm diameter; 0 degree rise |
| Bars | Merida Expert eTR; 780 mm wide; 20 mm rise |
| Front Brake | Shimano MT-520; 4 piston front hydraulic disc brakes with Shimano RT30; 203 mm rotor |
| Rear Brake | Shimano MT-500; 2 piston rear hydraulic disc brakes with Shimano RTEM300; 180 mm rotor |
| Rear Mech | Shimano XT RDM8100 Shadow+ |
| Shifters | Shimano SLX |
| Speed | 12 |
| Rims | Merida Comp TR; 29 mm inner width; 29" front and 27.5" rear |
| Front Hub | Shimano MT400-B; 110 x 15mm axle; 32 spoke; Centerlock |
| Rear Hub | Shimano MT400-B; 148 x 12mm axle; 36 spoke; Centerlock rear with Merida Comp TR rear axle including removeable lever, 6/4mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Maxxis Assegai; 29" x 2.5 "; Kevlar bead - folding; EXO TR Dual Compound |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.6 "; Kevlar bead - folding; EXO TR Dual Compound |
| Seat Post | Merida Comp TR; 30.9 mm diameter; 0mm layback S: 100 mm travel - M/L/XL/XXL: 125 mm travel |
| Saddle | Merida Comp CC |
| Chainset | Shimano CRE80-12-B; 34 teeth with Shimano E8000 crank |
| Bottom Bracket | Shimano Steps E8000; 70Nm motor |
| Chain | Shimano CN-M7100 |
| Cassette | Shimano M7100; 10-51 teeth; 12 speed |
| Pedals | VP; VPE-538 |
| Weight | 22kg |
| Battery Size (WH) | 504Wh |
| Motor | Shimano E8000 70NM motor |
| User Interface | Shimano E7000 Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
