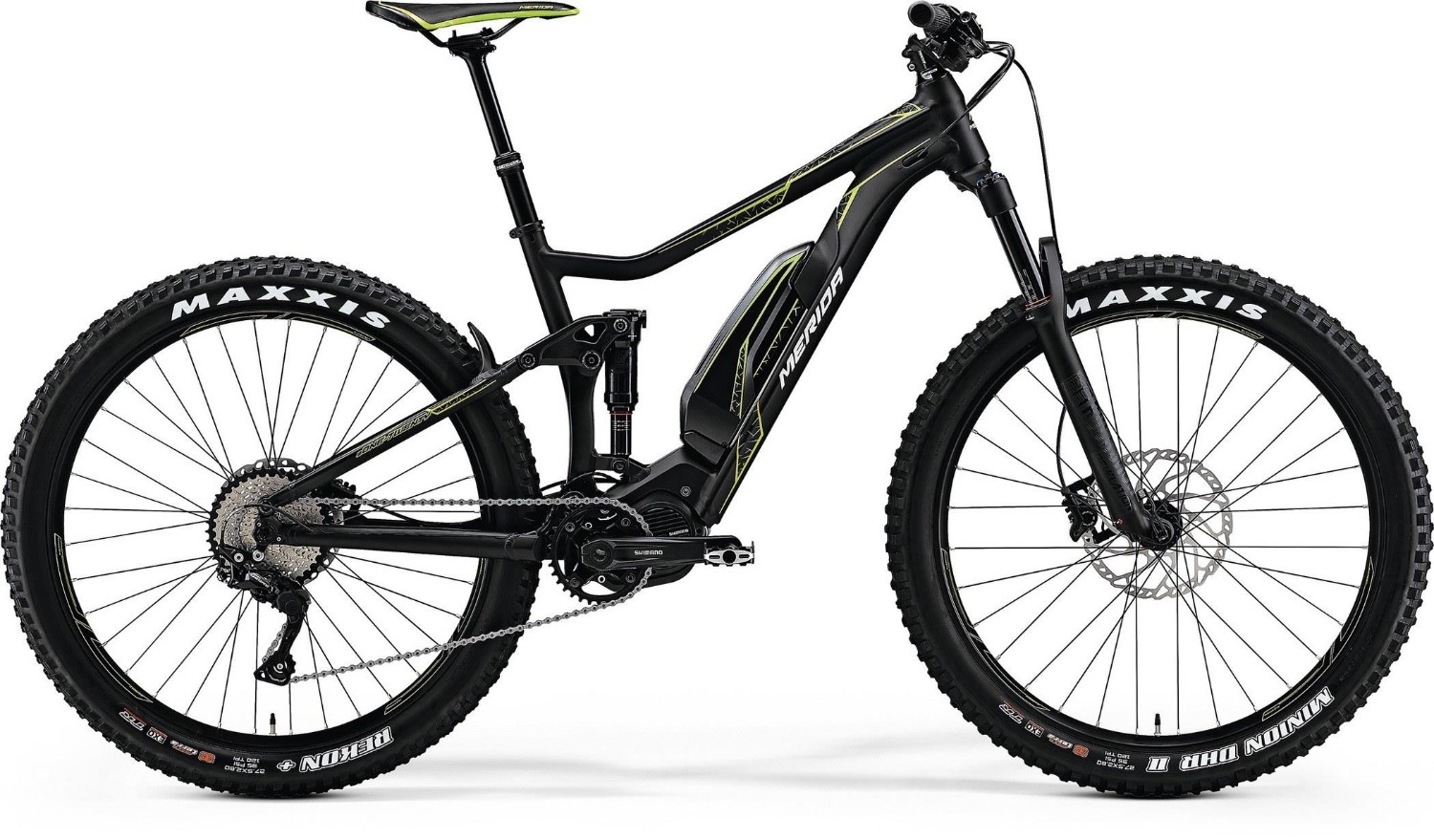

Merida eOne Twenty 500 27.5+ 2019 - Electric Mountain Bike

Merida eOne Twenty 500 27.5+ 2019 - Electric Mountain Bike

Out of Stock Sorry, you missed it. But you still have options...

Recommended alternatives We've found some items that may interest you...

Top Rated

Best Deals

New in Electric Mountain Bikes

Archive Product Details Comparing? Here's the info from the out of stock item

Product Description

The Merida EOne Twenty 500 gives an advantage on the trail. This electric mountain bike gives you the extra power to climb easily to the top of any trail, and have a blast on the way down. It’s full suspension frame gets 120mm travel and is matched to a 130mm RockShox fork for superb control on the trails. Get riding your local trails and mountains.

Key Features:

  • Hydro formed Prolite 66 aluminium frame with 120mm travel
  • RockShox Revelation RC delivers 130mm of excellent on-trail control
  • RockShox Deluxe R rear shock smooths out the trails and gives great traction
  • Shimano Deore 1x10 speed drivetrain is smooth shifting and reliable
  • Shimano Deore disc brakes are powerful and have 203mm front and 180mm rear rotors
  • Merida Expert Dropper post is perfect for getting your seat low for descending
  • Di2 ready
  • Sizes: Small, Medium, Large
  • Colours: Matt Black/Green
  • The Merida EOne Twenty 500 is available with 0% APR finance

Drive Information:

  • Motor: Shimano E8000
  • Battery: Shimano E8010 500Wh
  • User interface/remote: Shimano SC-E8000 Display
  • Connectivity: Bluetooth compatible
Merida EOne Twenty Review

PROLITE 61 TRIPLE BUTTED ALUMINIUM  2018

Our proven high-end aluminium (6061) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.

X-TAPER HEADTUBE 2018

Using a tapered head tube with 1 1/8" bearings in the top and 1 1/4" or 1 1/2" in the bottom creates superb stiffness and precise, confidence inspiring steering.

SMOOTH WELDING 2018

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance you will be convinced it is carbon.

INTERNAL CABLE 2018

Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.

SMART ENTRY 2018

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trail gets rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

LOCK-OUT 2018

The suspension fork and/or rear shock can be locked, either directly or via a ‘remote control’ lever on the handlebar.

12-148 THRU-AXLE ‘Boost’ 2018

New Boost standard – wider axle widths; 110mmfront and 148mm rear, allowing a shallower spoke angle for stiffer wheels, especially beneficial in 29ers.

15-110 THRU-AXLE ‘Boost’ 2018

New Boost standard – wider axle widths; 110mmfront and 148mm rear, allowing a shallower spoke angle for stiffer wheels, especially beneficial in 29ers.

CASTING MOTOR BRACKET 2018

Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the e-bike motor and frame for improved performance and reliability.

DI2 READY 2018

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.

C-S POST MOUNT DISC 2018

Post mount disc brake callipers fit directly onto the seat stay for a strong and light connection whilst a chainstay post mount positions the calliper on the chainstay within the rear triangle for extra protection and better distribution of braking forces. Another benefit is that internal cable routing is also easier and neater via the chainstay.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on baskets over £99
  • UK price match
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Hydro formed Prolite 61 aluminium with aggressive trail geometry and 120 mm rear wheel travel – Shimano Steps 8000 motor allows for short chain stays delivering agility. ‘Smart Entry’ cable routing for rattle free running.
Fork:Rock Shox Revelation RC B Solo Air 130mm travel
Rear Shock:Rock Shox Deluxe R-A2
Stem:Merida Expert SS 55mm long
Bars:Merida Expert Oversize clamp, 35mm rise 760mm wide
Front Brake:Shimano M500 hydraulic disc brakes, 203mm
Rear Brake:Shimano M500 hydraulic disc brakes, 180mm
Brake Lever:Shimano M500
Rear Mech:Shimano Deore Shadow+
Shifters:Shimano Deore
Speed:10
Rims:Merida Expert TP
Front Hub:15mm Shimano Deore, Boost standard centre lock
Rear Hub:Shimano Deore, Boost standard centre lock
Spokes:Black stainless steel
Front Tyre:Maxxis DHR 27.5"+ 2.8" folding
Rear Tyre:Maxxis Rekon 27.5"+ 2.8" folding
Seat Post:Merida Expert Dropper 30.9mm
Chainset:Shimano E8000/CRE80-B 34 tooth chainring
Bottom Bracket:Drive Unit E8000
Chain:KMC X11e
Cassette:Shimano HG500, 10 speed, 11-42T
Pedals:XC pro alloy
Weight:21.75kg

Merida eOne Twenty 500 27.5+ 2019 - Electric Mountain Bike Reviews

Write your own review
Overall Rating:
4.9
out of 5
4.89
Build Quality
5.00
Performance
4.83
Value For Money
4.83

Customer Reviews (3)

5
Awesome Awesome Awesome
by Anthony B on 09/07/2019

Having just got my new Merida ebike and only having a few trips out with it so far I have to say Wow what a bike, first off this bike looks mean and wants to play out every day! Once front and rear shocks setup and tyre pressure this bike grips those tracks just perfectly always loved maxxis tyres and these never let you feel your out of depth on downhill rocky and gravel tracks The motor is a beast gets you over anything I've thrown at it so far as I live in the hills so it copes incredibly well, fantastic bike and a great price /m\

Having just got my new Merida ebike and only having a few trips out with it so far I have to say Wow what a bike, first off this bike looks mean and wants to play out every day! Once front and rear shocks setup and tyre pressure this bike grips those tracks just perfectly always loved maxxis tyres and these never let you feel your out of depth on downhill rocky and gravel tracks The motor is a beast gets you over anything I've thrown at it so far as I live in the hills so it copes incredibly well, fantastic bike and a great price /m\

Close review
4.7 out of 5
Build Quality: 5/5
Performance: 4.5/5
Value For Money: 4.5/5
5
Robinsmart
by Anonymous user on 06/10/2018

Creat bike to ride on trails pulse about the town ☺☺☺

Creat bike to ride on trails pulse about the town ☺☺☺

Close review
5 out of 5
Build Quality: 5/5
Performance: 5/5
Value For Money: 5/5
5
The Merida
by nathan l on 23/02/2018

What an absolutely amazing bike. The looks on it are just shockingly nice. The spec the bike comes with is also very good. With rockshox all round the Merida is ready to take a beating on the descent and then makes you smile on the way back up thanks to the smooth and silent Shimano Steps motor system. I have tried other brands and you can feel the bike bog down once you hit the max speed but not the Shimano Steps it is such a smooth transmition over 15mph you don't notice the motor cut out. The bike strangely is very light concidering it has a motor and a battery to lob around and it stick to the trail like poop on a tyre. The bike also comes standard with the 2.8 Maxxis tyres, So much grip on the way down and no tears on the way up. Look out Levo The Merida is coming.

What an absolutely amazing bike. The looks on it are just shockingly nice. The spec the bike comes with is also very good. With rockshox all round the Merida is ready to take a beating on the descent and then makes you smile on the way back up thanks to the smooth and silent Shimano Steps motor system. I have tried other brands and you can feel the bike bog down once you hit the max speed but not the Shimano Steps it is such a smooth transmition over 15mph you don't notice the motor cut out. The bike strangely is very light concidering it has a motor and a battery to lob around and it stick to the trail like poop on a tyre. The bike also comes standard with the 2.8 Maxxis tyres, So much grip on the way down and no tears on the way up. Look out Levo The Merida is coming.

Close review
5 out of 5
Build Quality: 5/5
Performance: 5/5
Value For Money: 5/5
