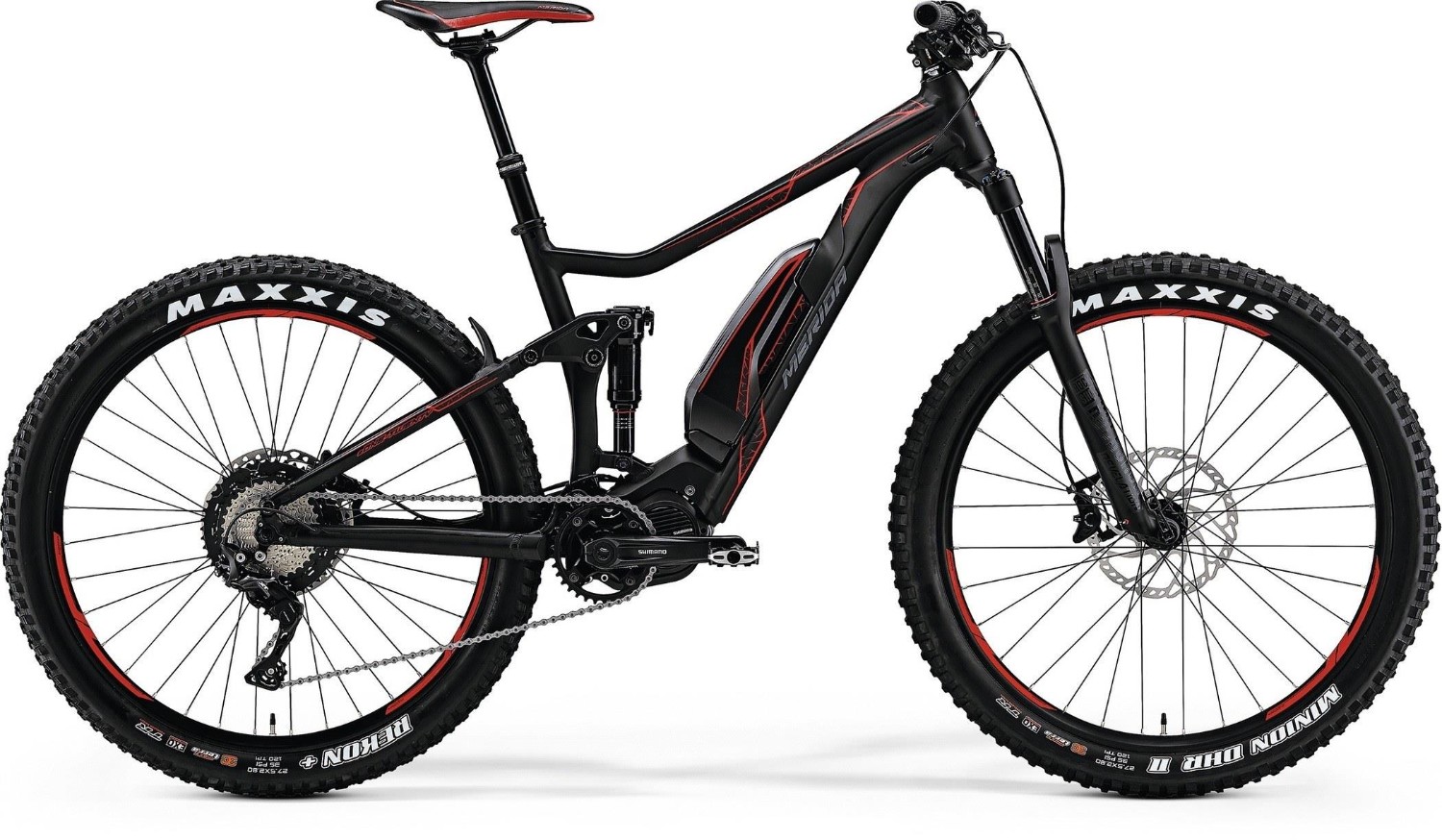

Merida eOne Twenty 800 27.5+ 2019 - Electric Mountain Bike
For getting the most out of a day on the trails, get aboard the Merida EOne Twenty 800. It’s an electric mountain bike that’ll get you riding further than ever before. The alloy full suspension frame gives 120mm travel, and is matched to a RockShox revelation fork that delivers 130mm. The Shimano STePS motor system is smooth and the battery will get you riding far.
Key Features:
- Hydro formed Prolite 66 aluminium frame with 120mm travel
- RockShox Revelation RC delivers 130mm of excellent on-trail control
- RockShox Deluxe RT rear shock smooths out the trails and gives great traction
- Shimano XT/SLX 1x11 speed drivetrain is fast shifting and reliable
- Shimano SLX disc brakes are powerful and have 203mm front and rear rotors
- Merida Expert Dropper post is perfect for getting your seat low for descending
- Sizes: Small, Medium, Large
- Colours: Matt Black/Red
- The Merida EOne Twenty 800 is available with 0% APR finance
Drive Information:
- Motor: Shimano E8000
- Battery: Shimano E8010 500Wh
- User interface/remote: Shimano SC-E8000 Display
- Connectivity: Bluetooth compatible
PROLITE 66 TRIPLE BUTTED ALUMINIUM 2018
Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.
X-TAPER HEADTUBE 2018
Using a tapered head tube with 1 1/8" bearings in the top and 1 1/4" or 1 1/2" in the bottom creates superb stiffness and precise, confidence inspiring steering.
SMOOTH WELDING 2018
Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance you will be convinced it is carbon.
INTERNAL CABLE 2018
Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.
SMART ENTRY 2018
Cables, housings and brake hoses are clamped under tension to prevent rattling when the trail gets rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.
LOCK-OUT 2018
The suspension fork and/or rear shock can be locked, either directly or via a ‘remote control’ lever on the handlebar.
12-148 THRU-AXLE ‘Boost’ 2018
New Boost standard – wider axle widths; 110mmfront and 148mm rear, allowing a shallower spoke angle for stiffer wheels, especially beneficial in 29ers.
15-110 THRU-AXLE ‘Boost’ 2018
New Boost standard – wider axle widths; 110mmfront and 148mm rear, allowing a shallower spoke angle for stiffer wheels, especially beneficial in 29ers.
CASTING MOTOR BRACKET 2018
Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the e-bike motor and frame for improved performance and reliability.
DI2 READY 2018
Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.
C-S POST MOUNT DISC 2018
Post mount disc brake callipers fit directly onto the seat stay for a strong and light connection whilst a chainstay post mount positions the calliper on the chainstay within the rear triangle for extra protection and better distribution of braking forces. Another benefit is that internal cable routing is also easier and neater via the chainstay.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Merida eOne Twenty Bike Sizing
Frame Size | Height (cm) | Height (ft) |
S (15.5") | 157-173 | 5'1"-5'6" |
M (17") | 167-183 | 5'4"-6'0" |
L (18.5") | 177-190 | 5'8"-6'2" |
Merida eOne Twenty Geometry
Size
|
SM | MD | LG | XL |
Wheels | 27.5″ | 27.5″ | 27.5″ | 27.5″ |
Stack | 609 | 619 | 628 | 637 |
Reach | 420 | 435 | 455 | 475 |
Stack/Reach Ratio | 1.45 | 1.42 | 1.38 | 1.34 |
Top Tube Length | 583 | 601 | 623 | 646 |
Seat Tube Length | 400 | 440 | 490 | 540 |
Seat Tube Angle | 75 | 75 | 75 | 75 |
Head Tube Length | 110 | 120 | 130 | 140 |
Head Tube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
BB Drop | 28 | 28 | 28 | 28 |
BB Height | 328 | 328 | 328 | 328 |
Front Center | 717 | 736 | 760 | 783 |
Chainstay Length | 440 | 440 | 440 | 440 |
Wheelbase | 1,155 | 1,174 | 1,198 | 1,221 |
Rake | 51 | 51 | 51 | 51 |
Trail | 92 | 92 | 92 | 92 |
Standover Height | 698 | 730 | 751 | 783 |
Read our bike size guide for more information on sizing.
