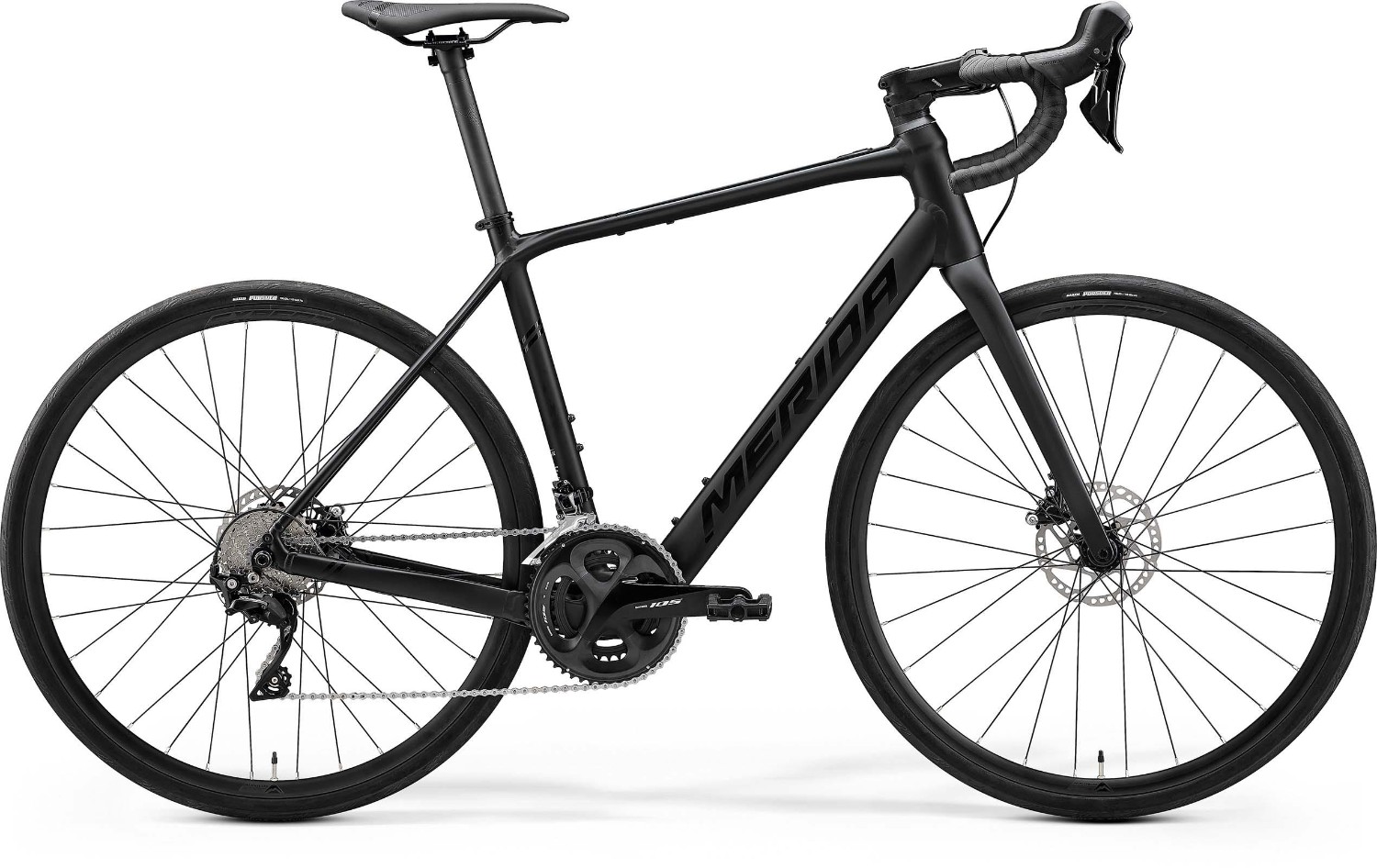

Merida eScultura 400 2023 - Electric Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
| Fork | Mission CX CF3; carbon. Max. tyre size: 700 x 42c |
| Headset | VP-MH-P16 |
| Stem | Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
| Bars | Merida Expert CW; aluminium; Width: 400mm (XS/S), 420mm (M/L), 440mm (XL) |
| Front Brake | Shimano 105; 2 piston hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
| Rear Brake | Shimano 105; 2 piston hydraulic disc brake caliper with Shimano RT66; 160 mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 |
| Rear Mech | Shimano 105; GS |
| Shifters | Shimano 105 |
| Speed | 22 |
| Rims | Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | VP CLK170F; 100x12mm; 28 spokes; Center lock |
| Rear Hub | MAHLE X35+ Hub motor; 40Nm |
| Spokes | Black stainless |
| Front Tyre | Maxxis Pursuer 700 x 32c; Kevlar bead, folding |
| Rear Tyre | Maxxis Pursuer 700 x 32c; Kevlar bead, folding |
| Seat Post | Merida Expert CC; carbon; 30.9mm diameter; in-line |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano 105; 50-34 tooth chainset with 170mm - XS/S/SM/ML, 175mm - L/XL length crank |
| Bottom Bracket | Shimano BSA |
| Chain | KMC E11S |
| Cassette | Shimano 105 11-32 teeth |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | 250 Wh |
| Motor | MAHLE B1-D; 250Wh, MAHLE X35+ Hub motor; 40Nm |
| User Interface | Colour coded iWoc power button |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
