(1)Product ID: 230799

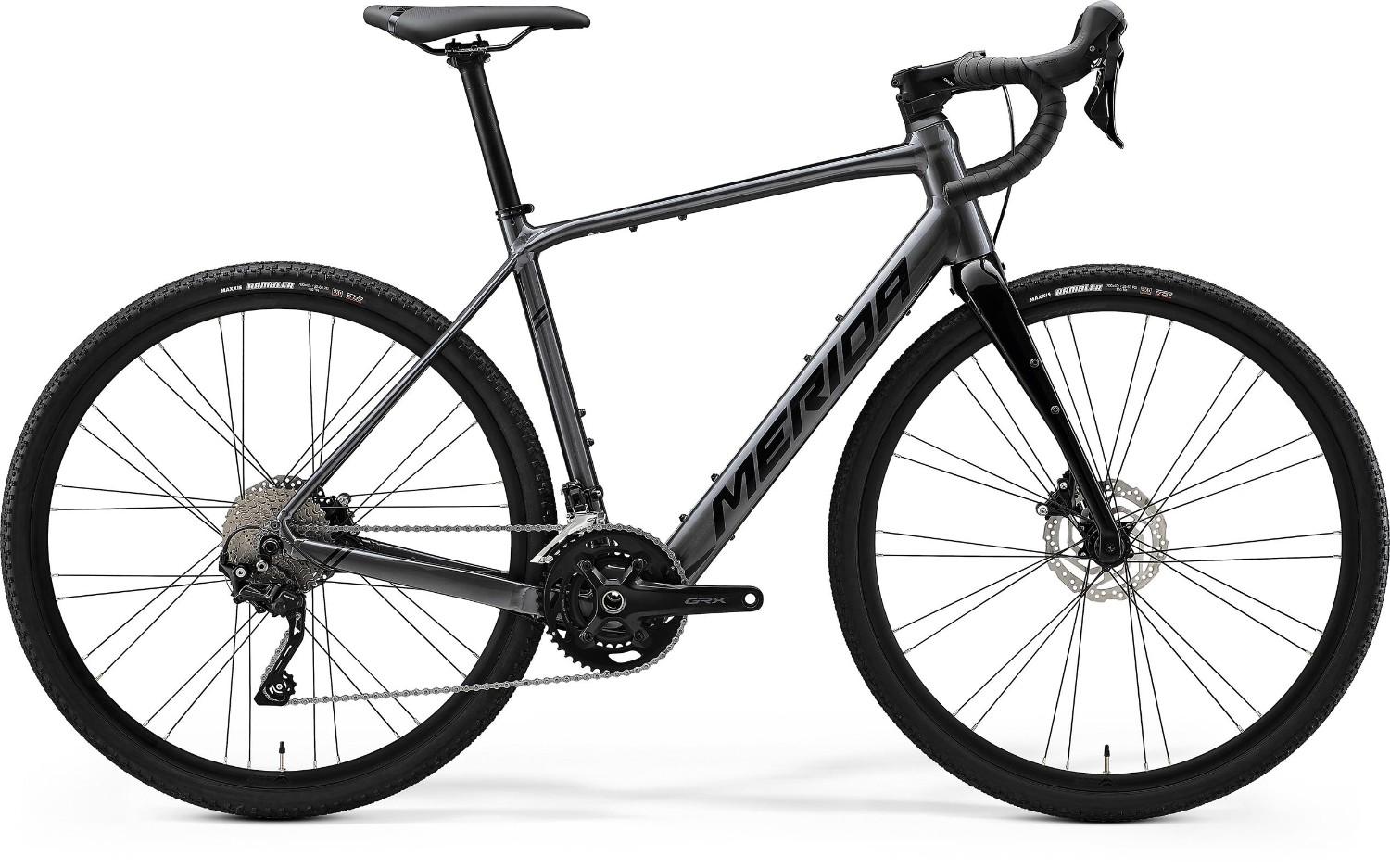

Merida eSilex 400 2021 - Electric Gravel Bike
Brand new for MY21 we are using the proven Mahle eBikemotion hub motor system to create a range of 5 new models.
Mahle's eBikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The system has an iWoc button for controlling support levels and a Sophisticated app with the opportunity to adjust the riding feel as well as post-ride analysis features.
Five models all based on the same versatile geometry frame. Each model has a specific fork and componentry to match its application.
The frame has mounts for mudguards and rack and a neat hidden kickstand mount, generous tyre clearance means you can run up to a 40mm tyre and mudguards. Cable routing is through a specific headset cap to keep the cockpit nice and neat.
The eSilex 400 is targetted at gravel riders or those looking for a rugged all rounder.
The eSilex 400 features a Silex CF2 carbon fork, Shimano GRX 400 2 x 10 groupset, Shimano GRX 400 hydraulic disc brakes and a 700c wheelset
The eSilex can be run as a 700c or 650b bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite - Hydroformed 6066 series triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. Generous tyre clearance gives the ability to run up to a 40mm tyre and mudgaurds. |
| Fork | Merida Silex CF2; Tapered; carbon |
| Headset | FSA No. 69/SRS |
| Stem | Merida Expert CC; aluminium; 31.8mm diameter; 5 degree rise - Length : 80 mm all sizes |
| Bars | Merida Expert GR; aluminium |
| Front Brake | Shimano GRX400; Hydraulic disc with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano GRX400; Hydraulic disc with Shimano RT26; 160mm rotor |
| Brake Lever | Shimano GRX400 |
| Front Mech | Shimano GRX400 |
| Rear Mech | Shimano GRX400 |
| Shifters | Shimano GRX400 |
| Speed | 20 |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm profile; Material: aluminium |
| Front Hub | VP CLK170F; 100x12mm; 32 spokes; centerlock |
| Rear Hub | Mahle X35+ Hub motor |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rambler; 700Cx40; Kevlar bead; folding; EXO |
| Rear Tyre | Maxxis Rambler; 700Cx40; Kevlar bead; folding; EXO |
| Seat Post | Merida Expert; aluminium; 30.9mm diameter; in-line |
| Saddle | Merida Comp CC; V-mount |
| Chainset | Shimano GRX600; 46-30 teeth chainwheel with 170mm - XS/S, 172,5mm - M, 175mm - L/XL length crank |
| Bottom Bracket | Shimano BSA |
| Chain | KMC e 10 Speed |
| Cassette | Shimano CS-HG50; 11-36 teeth; 10 speed |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | 250 Wh |
| Motor | Mahle X35+ Hub motor with Mahle B1-C 250Wh battery |
